Showing 1–16 of 30 results
-
REQUEST A QUOTE
- Metric: 50 Hz Operation 60 Hz Operation
- Dimensions: 119 x 119 x 38 mm (approx. 4.7" x 4.7" x 1.5") 119 x 119 x 38 mm
- Input Power / Wattage: 22 W 21 W
- Rated Current: 0.14 A (140 mA) 0.13 A (130 mA)
- Rotational Speed: 2700 RPM 3000 RPM
- Maximum Airflow: 179.4 CFM (304.8 m³/h) 203.4 CFM (345.6 m³/h)
- Static Pressure: 0.29 in-H₂O (72.2 Pa) 0.27 in-H₂O (67.2 Pa)
- Noise Level: 46 dB(A) 50 dB(A)
- Termination & Structure: 2-wire leads, shaded pole motor, impedance protected, ball bearing
4E-230B 02 230V BI-SONIC AC Axial Cooling Fan.
-
REQUEST A QUOTE
- Dimensions: 120 mm x 120 mm x 38 mm (Standard 4.7" frame)
- Weight: 600 grams
- Bearing Type: Dual ball bearing
- Material: Die-cast aluminum/alloy housing with plastic or metal blades
- Termination: 4-wire lead hookup (allows configuration for either voltage)
- Nominal Voltage: 115 VAC or 230 VAC 115 VAC or 230 VAC
- Power Consumption: 22 W 21 W – 24 W
- Rotational Speed: 2650 RPM 3000 RPM
- Max Airflow: 77.5 – 85 CFM 89 – 95 CFM
- Static Wind Pressure: 58.84 Pa (6.0 mmH₂O) 58.84 Pa (6.0 mmH₂O)
- Acoustic Noise: ~41–42 dB(A) ~45–46 dB(A)
- Operating Temperature: -20°C to +75°C
- Safety Certifications: CE compliant
4E-DVB 115-230V BI-SONIC AC Axial Cooling Fan.
-
REQUEST A QUOTE
- Voltage: 230V AC (50/60 Hz frequency)
- Power Output: 42 Watts
- Dimensions: 172mm x 151mm x 55mm (approx. 6.77" x 5.91" x 2.01")
- Rotational Speed: Up to 3,100 to 3,250 RPM
- Electrical Connection: 2-wire connector layout
- Housing Material: Die-cast aluminum/metal frame
- Noise Level: ~53 to 55 dB
A17M23SWB M00 AUO AC Axial Cooling Fan.
-
REQUEST A QUOTE
- Dimensions: 150mm × 150mm × 38mm
- Operating Voltage: 220V – 240V AC
- Current Draw: 0.16A / 0.17A
- Cross-References / Alternates: Also identified by model codes RAH1538B1-C1 or AS1538L-230M.
- Design Features: Built with lightweight, corrosion-resistant plastic housing and engineered for high-temperature resistance to protect continuous-duty industrial hardware.
AXIA RAH1538B1-C AC Axial Cooling Fan (RAH Series).
-
REQUEST A QUOTE

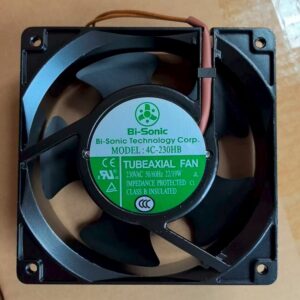

- Dimensions: 120 mm x 120 mm x 38 mm (Standard 12038 frame size)
- Rated Voltage: 230V AC (Operates on 50/60 Hz frequencies)
- Power Consumption: 22 Watts at 50Hz / 19 Watts at 60Hz
- Rotational Speed: 2650 RPM (50Hz) / 3000 RPM (60Hz)
- Airflow Volume: 89 CFM at 50Hz / 100 CFM at 60Hz
- Noise Rating: 46 dBA to 48 dBA
- Bearing Type: Dual ball bearing (50,000-hour life expectancy)
- Construction: Die-cast aluminum metal frame with a glass fiber reinforced plastic impeller
- Termination: 2-wire leads or terminal pins
- Model: 4C-230HB (metal frame, plastic leaf) Size: 120*120*38MM Voltage: 230V (50/60HZ) Power: 19/22W Speed: 2650/3000RPM Bearing: …
BI-SONIC 4C-230HB 230V Industrial AC Axial Fan (4C Series).
-
REQUEST A QUOTE
- Power Output: 60W
- Voltage: 220V – 240V AC
- Frequency: 50 Hz
- Poles / Speed: 6-Pole (6P)
- Wiring: 3-Wire configuration
- Motor Diameter: 122 mm
- Insulation Class: Class B
- Max Ambient Temp: 70°C
- Shaft Length Variants: Manufacturer records from SmartClima note that this specific model number is produced with two distinct shaft lengths: 8.9 cm and 11 cm. You must measure your broken motor's shaft before ordering to ensure the fan blade fits perfectly.
- Cross-Compatibility: This 60W unit can often directly replace alternate part numbers such as the YDK-60-6G and YDK55-6C.
CHIGO YDK-60A-6F AC Fan Motor (YDK Series).
-
REQUEST A QUOTE
- Dimensions: 172 mm x 150 mm x 51 mm (6.77" x 5.91" x 2.01")
- Operating Voltage: 24V DC
- Power Rating: 28.8W to 33.6W (approx. 1.20 Amperes)
- Airflow Capacity: ~288 to 289 CFM
- Rotational Speed: 4,000 RPM
- Bearing Design: Dual Ball Bearings (for long life and multi-angle mounting)
- Acoustic Noise: 60.1 dBA
- Wiring Interface: 3-wire leads ending in a 3-pin connector (includes a tachometer output sensor for system speed monitoring).
- UPS Assemblies: Serves as a direct-fit OEM replacement for active cabinet thermal control.
- Industrial Cabinets: Used in power conversion equipment, heavy machinery, and automated manufacturing enclosures.
COOLTRON FD1751B24W7-3P-61 DC Brushless Axial Cooling Fan (FD1751 Series).
-
REQUEST A QUOTE
- Voltage & Power: 230VAC (50/60 Hz) requiring 29 Watts of power.
- Dimensions: 172mm x 172mm x 51mm (often referred to as a standard 17cm round/oval frame).
- Airflow Volume: 348 to 384 m³/h depending on the frequency.
- Rotational Speed: 2850 to 3400 RPM.
- Acoustic Noise: 50 to 55 dB.
- Connection Type: Tab/socket plug-in connection rather than flying lead wires.
- Bearing & Protection: Double ball bearing system with internal thermal protection.
- Official Datasheet: To verify exact technical footprints or mounting schematics, you can view documentation directly through the manufacturing partner website Fandis SpA.
COSTECH C18C23HTB F00 AC Axial Cabinet Cooling Fan (C18 Series).
-
REQUEST A QUOTE
- Brand/Manufacturer: ebm-papst
- Model Number: D1G133-AB39-22
- Motor Model: M1G074-BF
- Nominal Voltage: 48V DC (Operating range: 36V to 57V DC)
- Power Consumption: 105 Watts (0.105 kW)
- Current Draw: 2.8 Amps
- Rated Speed: 1,780 RPM
- Air Flow Capacity: ~745 m³/h
- Impeller Diameter: 133 mm
- Material: Galvanized sheet steel housing and impeller
- Bearing Type: Sealed dual ball bearings
- Ingress Protection / Insulation: IP42 rated, Class "B" insulation
- Operating Temperature Range: -25°C to +60°C
- Electrical Connection: 4-wire configuration
ebm-papst D1G133-AB39-22（48VDC，105W） EC Centrifugal Blower Fan (D1G Series).
-
REQUEST A QUOTE

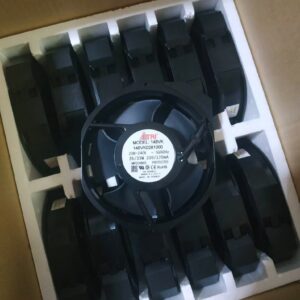

- Manufacturer: ETRI
- Model / MPN: 148VK0281000
- Fan Type: AC Axial Flow Fan
- Dimensions: 172 mm × 150 mm × 38 mm (often classified under 170mm or 172mm round fan sizes)
- Voltage Rating: 208–240V AC
- Frequency: 50 / 60 Hz
- Power Consumption: 35W at 60Hz / 33W at 50Hz
- Current: 200 mA / 170 mA
- Air Flow: >80 CFM
- Bearing Type: Dual Ball Bearing (highly durable for continuous operation)
ETRI 148VK0281000 High-Temperature AC Axial Cooling Fan (148VK Series).
-
REQUEST A QUOTE
- Dimensions: 172 x 150 x 38 mm
- Rated Voltage: 230 VAC (50/60 Hz)
- Power Input: 27 Watts (at 50Hz) / 26 Watts (at 60Hz)
- Rated Current: 0.11 A (some catalog variants list a locked/starting current of up to 0.18 A)
- Rotational Speed: 2850 RPM (50Hz) / 3400 RPM (60Hz)
- Airflow Volume: 177 CFM / 212 CFM
- Static Wind Pressure: 17 mmH2O / 19 mmH2O
- Noise Level: 54 dB(A) / 58 dB(A)
- Bearing Type: Dual Ball Bearing (indicated by the BTH suffix)
- Termination: 2-Pin Terminal
FULLTECH UF-15AC23 BTH AC230V High-Performance AC Axial Cooling Fan (UF-15AC Series).
-
REQUEST A QUOTE
- System Compatibility: Designed strictly for FANUC CNC controls and PLCs.
- Resolution: 100 Pulses Per Revolution (PPR) for accurate increments.
- Power Requirements: 5V DC input voltage.
- Axis Selection: Integrates a physical rotary knob supporting up to 4-Axis control (typically designated as X, Y, Z, and 4).
- Multiplier/Speed Selection: Standard multi-step scaling knob supporting 1X, 10X, and 100X resolution overrides.
- Output Signal Type: Differential line driver or standard R330 output depending on the factory wiring variant.
- Form Factor: Compact hand-held pendant featuring built-in magnets in the rear casing for easy mounting directly onto steel machine panels.
FUTURE EHDW-BA4S-IM CNC Manual Pulse Generator (EHDW Series).
-
REQUEST A QUOTE
- Voltage & Power: Operates on 100V AC (50/60Hz) with a power consumption of 40/36 Watts.
- Physical Dimensions: Measures 160 mm x 160 mm x 55 mm (roughly 6.3" x 6.3" x 2.17") and weighs approximately 2.67 lbs.
- Build Quality: Features a robust metal frame and steel/stainless steel blades designed to withstand extreme thermal environments.
- Performance: Utilizing a reliable dual ball bearing design, it delivers a rotational speed of 2800 RPM and an airflow capacity of up to 500 m³/hr.
- Wiring & Grounding: Features a 2-wire setup with a standard three-prong terminal system designed for reliable functional grounding.
IKURA U6500G1-TP High-Temperature Resistant Cooling Fan (U6500 Series).
-
REQUEST A QUOTE

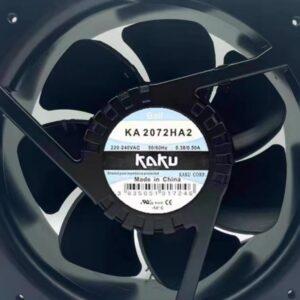

- Dimensions: 208 mm x 208 mm x 72 mm
- Operating Voltage: 220–240V AC (50/60 Hz)
- Rotational Speed: 2900 RPM (at 50 Hz) / 3300 RPM (at 60 Hz)
- Airflow Volume: ~808 to 930 CFM (Cubic Feet per Minute)
- Bearing Type: Dual Ball Bearing (rated for ~50,000 hours of continuous operation)
- Noise Level: 69 to 72 dBA
- Termination: Lead wire (typically 2-wire connection)
KAKU KA2072HA2 Heavy-Duty AC Axial Cooling Fan (KA2072 Series).
-
REQUEST A QUOTE

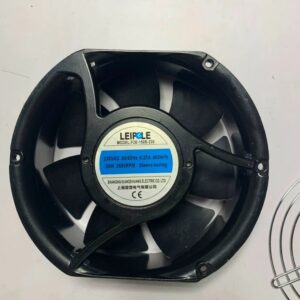

- Dimensions: 172 mm x 150 mm x 51 mm (commonly referred to as size 17251)
- Rated Voltage: 230V AC (50/60 Hz)
- Power Consumption: 36W – 44W (varies slightly based on frequency)
- Current Rating: 0.24A – 0.29A
- Airflow Capacity: Up to 380 m³/h (approx. 223.7 CFM)
- Fan Speed: 2640 – 2650 RPM
- Bearing Type: High-longevity ball bearings
- Termination: Two wire leads
- Safety Features: Built-in automatic recovery thermal protector and impedance protection
LEIPOLE F2E-150S-230 Industrial AC Axial Cooling Fan (F2E-150 Series).
-
REQUEST A QUOTE
- Manufacturer: Nidec Corporation
- Model / Series: B35502-35DEL7 (BETAV TA450DC)
- Dimensions: 120 mm x 120 mm x 38 mm (12038 standard)
- Rated Voltage: 12V DC
- Current Draw: 1.40A (Note: Some variants label 1.54A)
- Power Consumption: 16.8 Watts
- Fan Speed: 4,000 to 4,200 RPM
- Maximum Airflow: 160 CFM
- Static Pressure: 0.883 in H₂O
- Acoustic Noise: 56.5 dBA
- Bearing Type: Dual Precision Ball Bearings
- Housing Material: PBT Plastic (UL94V-0 flammable rating)
- Black Wire: Ground (GND) (-)
- Red Wire: Power (12V) (+)
- Yellow or White Wire: Tachometer / RPM Signal (Sensor)
- Blue Wire: PWM Speed Control Input
- Dell Part Numbers: D8794, 0D8794, PP749-A00
- Common Applications: Dell Precision 390, T7500 workstations, and 12cm high-density server chassis.
NIDEC B35502-35DEL7 Axial Server Cooling Fan (TA450DC Series).
