REQUEST A QUOTE
- Code Number: 1797
- Outer Diameter: ø30 mm
- Maximum Motor Speed: 19,000 RPM (at 0.5 MPa / 71 PSI)
- Maximum Power Output: 130 W
- Air Consumption: 180 NL/min (6.29 CFM)
- Proper Air Pressure: 0.3 – 0.5 MPa (42 – 71 PSI)
- Net Weight: 298 g (excluding hoses)
- Modular System: Designed as a separate-type system. It can be combined with various Nakanishi ø30 mm spindles or speed reducers (such as the ARG-011E 1/4 speed reducer) depending on the torque requirements of the application.
- Thermal Management: Engineered to withstand long, continuous operation without significant heat generation.
- Noise Reduction: Equipped with an inline silencer to minimize exhaust noise during operation.
- Required Accessories: To run this motor safely, it must be paired with an Air Line Kit (AL-M1202 or AL-M1203BS2) providing filtered, regulated, and lubricated air.
- Type: Motor; Outer Diameter: φ30 mm; Motor speed: 19,000 min-1 (0.5 MPa); Max. power: 130 W; Proper air pressure: 0.3–0.5 MPa; Air…
NAKANISHI AM-3020R Vane-Type Air Motor (Air-Speed Series).
-

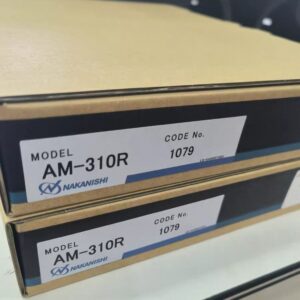

- Manufacturer: NAKANISHI
- Model / Part Number: AM-310R
- Maximum Speed: Up to 30,000 RPM (at 0.5 MPa / 71 PSI)
- Max Output Power: 108 Watts
- Rotation Direction: Clockwise (Forward) only
- Outer Diameter: 22.8 mm (0.897 inches)
- Air Pressure Range: 0.3 to 0.5 MPa (approximately 43.5 to 72.5 PSI)
- Air Consumption: 190 NL/min (Normal Liters per minute)
- Weight: 203 grams (about 7.2 ounces without hoses)
- Continuous Operation: Engineered to withstand long, continuous usage without overheating.
- Quiet Design: Equipped with a built-in silencer system to keep industrial workplace noise to a minimum.
-
REQUEST A QUOTE
- Motor Type: Brushless DC Motor
- Outer Diameter: φ 30 mm
- Speed Range: 1,000 – 30,000 min⁻¹ (RPM)
- Housing Material: Stainless Steel (SUS416)
- Net Weight: 350 g (14.64 oz.) without cord
- Standard Accessories: Wrench (22 × 27): 1 pc.
- NSK Catalog Number: 11769
- Controller Requirement: This motor must be connected to a compatible NAKANISHI controller, such as the NSK America E3000 Controller. If it is hooked up to an older or incompatible legacy controller, the safety features will trigger and it will not rotate.
- Cord Limitations: The motor requires a specialized joint-type motor cord. Note that the long 25.3 ft / 8m cord (EMCD-3000J-8M) cannot be used with this torque motor.
- Variant Differences: EM-3030T vs. EM-3030T-J
NAKANISHI EM-3030T Electric Spindle (E3000).
-

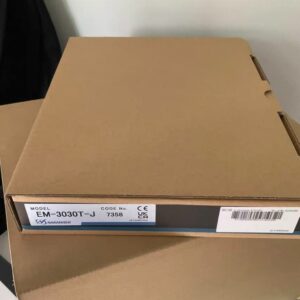

- Manufacturer: NAKANISHI
- Model / Part Number: EM-3030T-J
- Speed Range: 1,000–30,000 rpm
- Maximum Power: 350 W
- Outer Diameter: 30 mm
- Housing Material: Stainless steel
- Weight: 425 g for the 0.3 m cord version
- Lead Length: 0.3 m
-

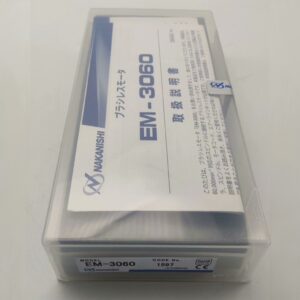

- Manufacturer: NAKANISHI
- Model / Part Number: EM-3060
- Rotation Speed: It can spin anywhere from 1,000 to 60,000 RPM (rotations per minute).
- Max Power: It has a maximum output of 350 Watts, which gives it plenty of strength for cutting through tough materials.
- Size & Width: The outside body has a diameter of 30 mm (about 1.18 inches), making it very compact.
- Weight: It is lightweight, weighing only 325 grams (around 11.4 ounces) without its power cord.
- Air Cooling: It uses a small stream of air (30 liters per minute) to keep itself cool. This lets it run all day long without overheating.
-

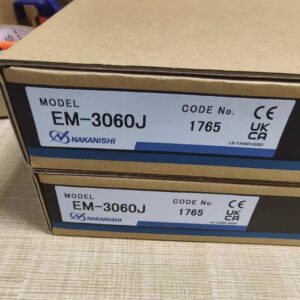

- Manufacturer: NAKANISHI
- Model / Part Number: EM-3060J
- Speed Range: 1,000–60,000 rpm
- Maximum Power: 350 W
- Outer Diameter: 30 mm
- Housing Material: SUS416 stainless steel
- Weight: 360 g without motor cord
-

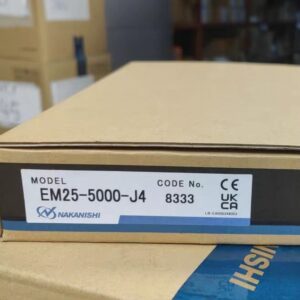

- Manufacturer: NAKANISHI
- Model / Part Number: EM25-5000-J4
- Speed Range: 1000 to 50000 r/min
- Output Power: 125 to 200 W, controller-dependent
- Housing Diameter: 25 mm
- Clutch Type: Negative clutch
- Housing Material: Stainless steel
- Weight: 250 g without cable
-

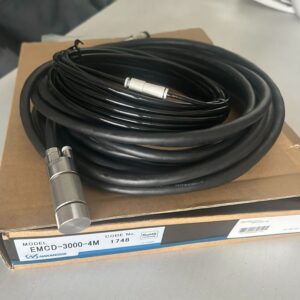

- Manufacturer: NAKANISHI
- Model / Part Number: EMCD-3000-4M
- Product Type: Motor Cord / Spindle Cable Straight connection type
- Model Code: EMCD-3000-4M Order Code: 1748
- Cable Length: 4.0 meters (~13.1 feet) Optimal for CNC machine integration
- Integrated Lines: Electrical + Pneumatic Includes a built-in air hose
- Country of Origin: Japan Manufactured by Nakanishi Inc.
- Dual-Purpose Design: The cable houses both the electrical wires for the spindle motor and an integrated air hose. This air line supplies compressed air directly to the motor for cooling and creates a positive pressure seal to prevent dust or coolant from entering the spindle.
- Industrial Durability: Built to resist wear, shielding the high-speed signals from harsh electrical interference in busy workshop environments.
- Connection Mechanism: Connects directly to the back end of the compatible E3000 series motor body.
- Compatible Motors & Spindles: EM-3060, EM-3030T, EM30-S6000, EM25-S6000, and EM20-S6000.
- Compatible Control Units: E3000 and E3000i series controllers.
-
REQUEST A QUOTE
- Manufacturer: NAKANISHI (Japan)
- Series: E3000 Series
- Part Number: EMCD-3000-6M
- Type: Motor Cord / Cable (Straight connection type at the spindle body end)
- Length: 6 meters (approx. 19.6 feet)
- Standard Accessories Included: Air hose and connector cap
- UNSPSC Code: 27112809
- Cable Model: Connection Design
NAKANISHI EMCD-3000-6M Spindle Motor Cable (E3000).
-
REQUEST A QUOTE
- Manufacturer: NAKANISHI Co., Ltd. (Japan)
- Part Number: EMCD-3000-8M
- Component Type: Spindle Motor Connection Cord / Cable
- Cord Length: 8 meters (approx. 26.6 feet)
- Cord Style: Straight Type (Connection at the body end)
- Standard Accessories: Integrated air hose, connector cap
- Integrated Air Cooling: The cable features a dual-purpose design containing both the electrical wiring and an integrated air hose. This supplies cooling air and purge air directly to the spindle to prevent overheating and repel dust or contaminants.
- System Requirements: It serves as a necessary component bridging the E3000 Controller and compatible brushless motor spindles.
- Compatible Motor Models: EM-3060, EM-3030T, EM30-S6000, EM25-S6000, and EM20-S6000.
- Usage Warning: Ensure proper variant pairing. For example, standard motor cords are designated exclusively for their corresponding series and should not be mismatched with variant sub-models (like specific J-type or A-type configurations) unless explicitly outlined by the manufacturer manual.
NAKANISHI EMCD-3000-8M Spindle Motor Cable (E3000).
-

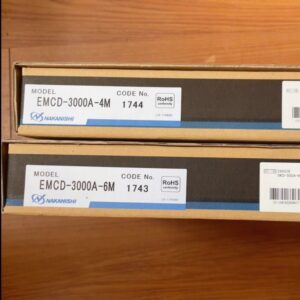

- Manufacturer: NAKANISHI
- Model / Part Number: EMCD-3000A-4M
- Angle Type Connector: The "A" in the part number stands for Angle Type. The cable connects to the back of the spindle motor at a 90-degree angle. This saves space and keeps the wire from sticking straight out, which is great for compact machines.
- Built-in Air Hose: The cable bundle includes both the electrical wiring for the motor and an integrated air hose. This hose supplies cooling and purging air to the spindle to keep dirt out and prevent overheating.
- Included Accessories: It comes standard with a protective connector cap to keep the plugs clean when they are not plugged in.
-
REQUEST A QUOTE
- Manufacturer: NAKANISHI Inc. (NSK)
- Part Number (MPN): EMCD-3000A-6M (Catalog code: 1743)
- Cable Length: 6.0 Meters (approx. 19.6 feet)
- Connector Configuration: Angle Type (90° degree bend)
- System Compatibility: E3000 Series Motor Spindles
- Compatible Spindle Models: EM-3060, EM-3030T, EM30-S6000, EM25-S6000, EM20-S6000
- Standard Accessories: Air Hose & Connector Cap
- Spatial Optimization: The primary distinction of the "A" variant (EMCD-3000A) over the standard straight cord (EMCD-3000) is its 90° right-angle connector. This makes it ideal for compact CNC milling machines, robotic arms, and custom fixture blocks where a straight cable exit would interfere with machine walls or workpieces.
- Integrated Air Line: The cable assembly houses both the electrical conduits and the physical air hose lines. This dual structure supplies air purging directly to the spindle to prevent dust, coolant, and debris from infiltrating the bearings during high-rpm operations.
- Type: Motor Cord; Length: 4M: 4 m. 6M: 6 m. 8M: 8 m; Standard equipment and accessories: Air hose. Connector cap (Included); Compa…
NAKANISHI EMCD-3000A-6M Spindle Motor Cable (E3000).
-

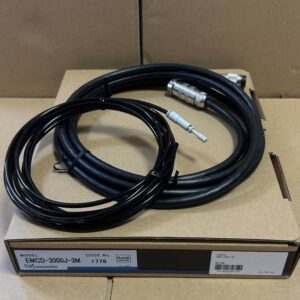

- Brand: Nakanishi
- Model: EMCD-3000J-3M
- Series: E3000
- Cable type: Spindle motor cord
- Length: 3 m
- Connection design: Joint type
- Product code: 1778
- System family: E3000
-
REQUEST A QUOTE
- Manufacturer: NAKANISHI (NSK America)
- Part Number: EMCD-3000J-6M
- Actual Length: 5.7 meters (approx. 18.7 feet)
- Cord Type: Motor Cord (Joint Type)
- Standard Accessories: Air Hose & Connector Protection Cap
- Compatible Motors: EM-3060J, EM-3030T-J, EMS-3060K, EMS-3060A, EMR-3008K, EMA-3020K, EMA-3020S, EMSF-3060K, and EM-3080J.
NAKANISHI EMCD-3000J-6M Spindle Motor Cable (E3000).
-

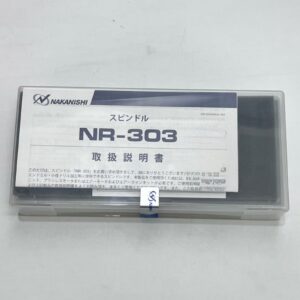

- Manufacturer: NAKANISHI
- Model / Part Number: NR-303
- Maximum Allowable Speed: 30,000 RPM (min⁻¹)
- Spindle Accuracy: Within 2 μm (runout precision)
- Outer Diameter: ø22.8 mm
- Total Length: 93.5 mm
- Net Weight: 215 g (7.58 oz)
- Compatible Collets: CHK Group (ranging from ø0.5 mm to ø6.35 mm)
- Coolant Compatibility: Safe for use with water-based or oil-based coolants
-
REQUEST A QUOTE
- Spindle Type: 90° Standard Right Angle Spindle
- Outer Diameter: φ 30 mm
- Reduction Ratio: 1 / 1.5
- Spindle Accuracy / Runout: Within 2 μm to 3 μm
- Collet Capacity: CHK Series: φ 0.5 mm to φ 6.0 mm (Up to φ 1/4")
- Net Weight: 580 g (1 lb. 4.46 oz.)
- NSK Catalog Number: ASE1579 (Formerly RAX-270E)
NAKANISHI RAX-271E Right-Angle Spindle (RAX Series).
