Showing 17–32 of 36 results
-
REQUEST A QUOTE
- Model: GS-71PC
- Lock Type: Power-to-lock
- Connection Type: M12 Connector
- Power Supply Voltage: 24 V DC ± 20%
- Power Consumption: 3.4 W (Normal) / 10.5 W (Peak)
- Weight: Approx. 380 g
- Safety Outputs (OSSD): 2 × Transistor outputs
- Residual Voltage (ON State): Max. 2.5 V (calculated using a standard 5 m / 16.40' cable resistance)
- Leakage Current: Max. 0.5 mA
- Auxiliary Output (Non-Safety related): 1 × Transistor output
KEYENCE GS-71PC Safety Interlock Switch (GS Series).
-
REQUEST A QUOTE
- Detection System: Scale Shot System II, Absolute type (no tracking errors)
- Measuring Range: 12 mm (0.47")
- Resolution: 0.1 µm (0.004 Mil)
- Indicated Accuracy: 1 µm (0.04 Mil) peak-to-peak (at 20°C)
- Sampling Cycle: 4 ms
- Actuation / Fluid: Air push type / Clean dry air
- Applied Air Pressure: 0.24 MPa to 0.26 MPa
- Pressure Resistance: 0.5 MPa
- Measuring Force: • Downward: 1.2 N
- Enclosure Rating: IP67 (IEC compliant)
KEYENCE GT2-PA12K Contact Sensor (GT2 Series).
-
REQUEST A QUOTE
- Sensor Type: Standard distance, Color type
- Image Sensor: 1/3-inch color CMOS
- Installed Distance: 50 to 500 mm (1.97" to 19.69")
- Field of View (FOV): At 50 mm: 25 × 18 mm (0.98" × 0.71")
- Focus Adjustment: One-touch Automatic Focus (locked during operation)
- Internal Lighting: Integrated White LED (Pulse or DC lighting switchable)
- Exposure Time: 1/10 to 1/50,000 seconds
- Onboard Memory: Stores up to 32 discrete programs & 100 historical images
- Power Requirements: 24 VDC ± 10%, Current consumption max 0.6 A
- Shape Detection: Matches the structural outline of a master part to verify presence and orientation.
KEYENCE IV-500CA Vision Sensor (IV Series).
-
REQUEST A QUOTE
- Display Type: 5.7" TFT color LCD
- Resolution: 640 × 480 (VGA)
- Backlight: White LED (approx. 50,000-hour operational lifespan)
- Touch Panel Type: Analog resistive (supports gloved operation; actuating force ≤ 0.8 N)
- Input Voltage: 24 VDC ± 10%
- Current Consumption: 0.3 A or less
- Enclosure Rating: IP40 (Protected against solid objects > 1mm; not protected against liquids)
- Operating Temp: 0 to +50 °C (32 to 122 °F) with strict relative humidity management over 40 °C
- Weight: ~450 g (main unit only) / ~485 g (with wall mounting adapter and stylus)
- Ethernet Communication: Utilizes a rugged M12 4-pin female connector supporting 100BASE-TX/10BASE-T networking directly to the sensor head or network switches.
KEYENCE IV2-CP50 Vision System Controller (IV2 Series).
-

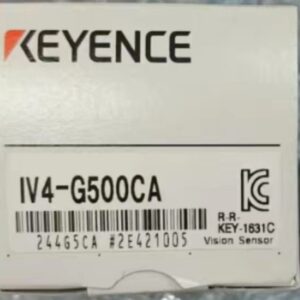

- Manufacturer: KEYENCE
- Model / Part Number: IV4-G500CA
- Image Sensor: 1/2.9-inch color CMOS sensor.
- Resolution: 1280 x 960 pixels (high-definition imaging).
- Focusing: Automatic focus system (configured during installation).
- Lighting: Built-in white LED illumination (supports pulse or continuous lighting modes).
- Installation Distance: 50 mm (1.97") up to 3000 mm (118.11").
- Field of View: Ranges from 22 x 16 mm (at 50 mm distance) up to 1184 x 888 mm (at 3000 mm distance).
- Power Consumption: 2.5 Watts typical (6.6 Watts if using an external AI imaging illumination unit).
- Ruggedness: IP67 enclosure rating (dust-tight and water-resistant).
- Weight: Approximately 75 grams (sensor head only).
- Specs: Vision Sensor with Built-in AI – IV4 series – Keyence
-
REQUEST A QUOTE
- Model Type: Ethernet Communication Unit (2 Ports)
- Compatible CPUs: KV-X Series, KV-8000A
- Connection Interface: RJ-45 8-pole modular connector × 2 ports
- Transmission Rates: 10BASE-T (10 Mbps), 100BASE-TX (100 Mbps), 1000BASE-T (1000 Mbps)
- Data Refresh Modes: Automatic refresh, Direct refresh
- Configuration Software: Configured via KV Studio and PROTOCOL STUDIO
- Industrial Protocols: EtherNet/IP™, PROFINET, EtherCAT® (fixed at 100 Mbps), CC-Link IE Field™ (fixed at 1000 Mbps), Modbus/TCP (Server), MC protocol / SLMP.
- General Purpose / IT Functions: KV socket communication, PLC link, FTP Server/Client, E-mail sending/receiving, and KEYENCE sensor networks.
- Network Restriction: Note that certain protocol modes have fixed speeds; for instance, EtherCAT cannot be mixed with general-purpose socket communications on the same infrastructure if transmission rate restrictions conflict.
- PROTOCOL STUDIO Integration: By using KEYENCE’s native software environment, communication settings for secondary devices (like vision systems or barcode readers) are pre-registered. Implementing this expands the default command configuration from 160 standard commands up to 320 extended commands.
KEYENCE KV-XLE02 Ethernet Expansion Unit (KV Series).
-

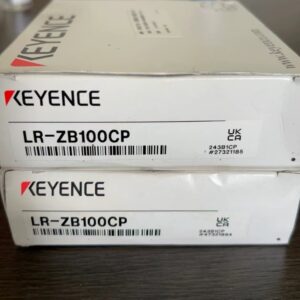

- Brand: Keyence
- Model: LR-ZB100CP
- Series: LR-Z Series
- Sensor type: Self-contained distance-based CMOS laser sensor
- Output: PNP open collector
- Connection: M8 4-pin connector
- Detection distance: 35 to 100 mm
- Response time: 1.5 / 10 / 50 ms selectable
- Light source: 660 nm red laser, Class 1
- Supply voltage: 10 to 30 V DC
- Control output: 100 mA maximum
- Output mode: Light-ON / Dark-ON selectable
- Enclosure: IP68 / IP69K; NEMA 4X, 6P, 13
- Operating temperature: -10 to +50 °C
- Approximate weight: 55 g
-
REQUEST A QUOTE
- Output Rated Voltage: 24 VDC (±5% adjustable via V.ADJ)
- Output Rated Current: 6.5 A
- Total Power Rating: 150 W
- Input Voltage Range: 85 to 264 VAC / 110 to 370 VDC
- Input Frequency: 47 to 63 Hz, DC
- Cooling Method: Natural Air Cooling
- Operating Temp Range: -10 to +55 °C (no freezing)
- Weight: Approx. 700 g (1.54 lbs)
- Dimensions: 6.4 cm × 12.7 cm × 12.7 cm (2.5" × 5.0" × 5.0")
- Visual Diagnostics: The digital LED display minimizes troubleshooting times by allowing operators to quickly check load statuses and voltage stability.
KEYENCE MS2-H150 Measurement Sensor (MS2 Series).
-
REQUEST A QUOTE
- Output Voltage: 24 VDC (±5% adjustable via V.ADJ)
- Rated Output Current: 2.1 A (Class 2 rated)
- Power Rating: 50 W maximum output power
- Input Voltage Range: 85 to 264 VAC / 110 to 370 VDC
- Input Frequency: 47 to 63 Hz, or DC
- Integrated Display: 3-digit, 7-segment LED (10 mm / 0.39" character height)
- Display Resolution: 0.1 A / 0.4 V / 1%
- Mounting Type: Standard DIN Rail mounting
- Termination Type: Screw Terminals
- Weight: Approx. 270 g (9.52 oz)
KEYENCE MS2-H50 Measurement Sensor (MS2 Series).
-
REQUEST A QUOTE
- Specification Category: Attribute
- Output Profile: Rated Output Voltage
- Rated Output Current: 3.2 A
- Rated Power Capacity: 75 W
- Input Profile: AC Input Voltage Range
- DC Input Voltage Range: 110 to 370 VDC
- Input Current Max: 1.9 A (at 100 VAC) / 0.9 A (at 200 VAC)
- Performance: Typical Efficiency
- Startup / Holding Time: ≤ 500 ms / ≥ 20 ms
- Physical & Environmental: Operating Temperature
KEYENCE MS2-H75 Measurement Sensor (MS2 Series).
-
REQUEST A QUOTE
- Primary Function: Converts NPN signal to PNP Open Collector
- Input Voltage Range: 10 to 30 VDC
- Max Control Output Current: 100 mA maximum
- Max Output Voltage: 40 VDC maximum
- Mounting Form Factor: DIN-Rail Mountable
- Built-in Protection: Short-Circuit Protection
- Applicability: Universal (compatible with all NPN sensors, frequently paired with the KEYENCE LR-Z Series)
- System Integration: Simplifies wiring when integrating legacy machinery or sensors into standard PNP-configured control environments (such as modern European or North American PLC architectures).
- Safety & Reliability: The onboard short-circuit protection safeguards upstream PLC inputs and downstream sensor lines from unexpected electrical overloads.
KEYENCE OP-5148 Accessory (OP Series).
-
REQUEST A QUOTE
- Primary Function: Converts a high-density round connector to a standard D-sub interface to allow programming, data transmission, and direct hardware communication.
- Connector A: Round 12-pin female connector.
- Connector B: D-sub 9-pin female connector.
- Cable Length: 0.2 m (20 cm / approx. 8 inches).
- Color: Black.
- Code Readers: Serves as a fundamental connection accessory for the KEYENCE SR-700 Series Ultra-Compact Code Readers.
- System Integration: Frequently used in tandem with components like the OP-27937 (D-sub 9-pin cross cable) or the SR-UR1 (USB converter) to establish standard PC configuration connections.
- Authorized Resources: You can access official documentation, dimensions, and CAD drawings directly through the KEYENCE America OP-80616 Product Page.
KEYENCE OP-80616 Accessory (OP Series).
-
REQUEST A QUOTE
- Component Type: Industrial Ethernet Cable
- Cable Length: 10 meters (~32.8 feet)
- Compliance/Standard: NFPA79 compatible (National Fire Protection Association standard for industrial machinery, ensuring specific flame retardancy and electrical safety markers required in manufacturing environments).
- Weight: 0.4 kg (0.88 lbs)
KEYENCE OP-87232 Accessory (OP Series).
-
REQUEST A QUOTE
- Product Type: Adjustable mounting bracket
- Manufacturer: KEYENCE Corporation
- Part Number: OP-87910
- Weight: Approximately 20 grams (0.07 lbs)
- Country of Origin: Japan
- Compatibility: Keyence IV, IV2, and IV3 Series Vision Sensor Heads
- Material/Design: Robust metal construction built to reduce vibrations and ensure industrial durability
- North America: Access the PDF datasheet and manual downloads on the KEYENCE America OP-87910 Product Page.
- Canada: Review complete technical specs and 3D PDF files via the KEYENCE Canada Portal.
- Southeast Asia: Download files on the KEYENCE Malaysia Model Hub or the KEYENCE Singapore Hub.
KEYENCE OP-87910 Mounting Bracket (OP Series).
-
REQUEST A QUOTE
- Type: Sensor-to-controller connection cable.
- Connector Type (Sensor End): 4-pin M12 standard connector, straight orientation.
- Connector Type (Controller End): Dedicated Keyence controller-side interface.
- Cable Length: 2 meters (6.56 feet).
- Insulation Material: PVC (Polyvinyl chloride).
- Wire Gauge: 24 AWG.
- Rated Voltage: DC 24V.
- Weight: Approx. 75 grams (2.65 ounces).
- Compatible Sensors: Primarily used for the LR-T Series (Self-contained TOF Laser Sensors).
- Compatible Controllers: Connects directly into the MU-N Series (Multi-Sensor Controller Network communication units).
KEYENCE OP-88025 Accessory (OP Series).
-
REQUEST A QUOTE
- Model Number: OP-88680
- Component Type: Control / Connection Cable
- Cable Length: 10 m (32.8 ft)
- Standards & Compliance: CE Marking, UL Listing (US), and UL/CSA standard conformity.
- SR-X Series: Used with AI-Powered Code Readers for signal routing and I/O control.
- SR-L Series: Integrates directly with High-Speed Label Code Readers.
- Models: High-Speed Label Code Reader – SR-L series
- Models: AI-Powered Code Reader – SR-X series – Keyence
KEYENCE OP-88680 Accessory (OP Series).
