Showing 17–24 of 24 results
-
- Manufacturer: INOVANCE
- Model / Part Number: IS620PS5R5I
- Series: IS620P (Pulse/Analog control variant)
- Output Current: 5.5 A
- Input Voltage / Phase: Single-phase or Three-phase 220V/230V AC
- Power Range: Commonly paired with motors around 750W to 1.0 kW (depending on application and phase configuration)
- Speed Loop Bandwidth: Up to 1.2 kHz
- Dimensions: 160 x 50 x 173 mm
- Control Protocols: Primarily supports pulse and analog command interfaces, along with Modbus communication.
-
REQUEST A QUOTE
- Power Output: 3.0 kW (3000 Watts)
- Input Rating: 3-Phase, 380V to 440V AC (50/60Hz), 8.0A
- Output Rating: 3-Phase, 0V to 380V AC (0Hz to 400Hz), 11.9A
- Control Interfaces: Pulse/Direction, Analog Input, and 23-bit Absolute Encoder support
- I/O Capacity: 16 Digital Inputs / 16 Digital Outputs
- Communication Protocols: Modbus, Profibus, Ethernet/IP, OPC UA
- Physical Housing: IP20 Protection Rating; weight approximately 2.05 kg (4.52 lbs)
- High Bandwidth & Tuning: Features a high-speed loop bandwidth of up to 1.2 kHz. It supports online/offline inertia auto-tuning, automatic gain adjustment, and adaptive notch filters to suppress mechanical resonance.
- Integrated Safety & Protection: Equipped with built-in hardware protection including Emergency Stop (E-Stop) and Overload Protection. It complies with international safety standards like IEC 61508 and ISO 13849.
- Software Configuration: Fine-tuning and system diagnostic monitoring are handled externally via the proprietary InoServoShop PC software toolkit.
INOVANCE IS620PT012I-C AC Servo Drive (IS620).
-

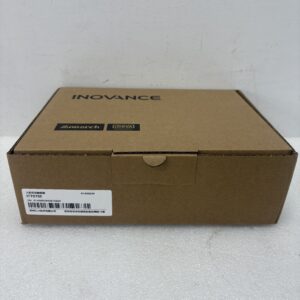

- Manufacturer: Inovance
- Model / Part Number: IT7070E
- Display Screen: A 7.0-inch LCD screen featuring 800 x 480 pixel resolution and 24-bit true color for clear, sharp imagery.
- Power Supply: Runs on a standard 24V DC power setup commonly used in industrial environments.
- Connectivity Ports: Built with rich physical communication channels including 2 x RS485 channels, 1 x RS232 port, 1 x USB mini B, 1 x USB type A, and 1 x Ethernet port.
- External Storage: Includes a dedicated SD card slot to easily handle data logging, backups, and recipe management.
- Internal Clock: Equipped with a built-in Real-Time Clock (RTC) to monitor and stamp time-sensitive process schedules.
-

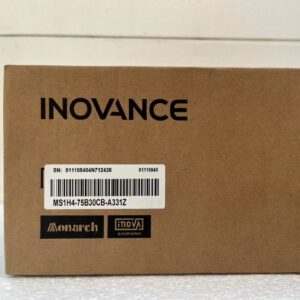

- Manufacturer: INOVANCE
- Model / Part Number: MS1H4-75B30CB-A331Z
- Power Output: 750 W (0.75 kW)
- Rated Speed: 3,000 RPM
- Maximum Speed: 6,000 RPM
- Rated Torque: 2.39 N·m
- Peak Torque: 8.36 N·m (Up to 350% peak torque capacity)
- Rated Current: 4.8 A
- Inertia Level: Medium Inertia.
- Flange Size: 80 mm × 80 mm
- Environmental Protection: IP67 degree of protection (Highly resistant to dust and water splashes, making it suitable for harsh factory environments).
- Motor Length: 117.5 mm (From the front mounting flange to the back of the casing).
- Shaft Diameter & Length: 19 mm diameter with a 35 mm shaft length.
- Mounting Hole Circle (PCD): 90 mm with 4 holes of 7 mm diameter.
- Connector Type: Easy-to-use compact connectors (rather than bulky military-spec circular plugs found on larger MS1 frames).
-
REQUEST A QUOTE
- Rated Power Output: 1.5 kW
- Input Voltage Range: 3-phase, 400 V AC to 480 V AC
- Integrated Communication: PROFINET network interface for real-time fieldbus operations.
- Safety Integration: Built-in STO (Safe Torque Off) complying with SIL3 standards to safely cut motor power without disabling the drive.
- Enclosure Rating: IP20 (intended for installation inside a clean, protective electrical control cabinet).
- Advanced Dynamic Tuning: Features built-in algorithms for stiffness level settings, inertia autotuning, and active vibration suppression to handle fluctuating mechanical loads seamlessly.
- High-Speed Control Loops: Features a rapid 4.5 kHz current loop response and up to 3 kHz speed loop bandwidth for highly responsive dynamics.
- Encoder Compatibility: Seamlessly integrates with MS1-series high-response servo motors configured with a high-resolution 23-bit multi-turn absolute encoder, ensuring exact positioning even after machine power cycles.
INOVANCE SV660FT5R4I AC Servo Drive (SV660).
-
- Manufacturer: Inovance
- Model / Part Number: SV660NS1R6I
- Output Power: 200 W (0.2 kW)
- Network Protocol: EtherCAT
- Input Power Supply: Single-Phase, 200–240 V AC, 50/60 Hz (2.3 A)
- Output Power Supply: Three-Phase, 0–240 V AC, 0–400 Hz (1.6 A rated / 5.8 A max)
- Current Loop Bandwidth: 4.5 kHz (ultra-fast response)
- Speed Loop Bandwidth: Up to 3 kHz
- Safety Integration: Safe Torque Off (STO) – SIL3 compliant
- Enclosure Rating: IP20
- Weight: ~770 grams
- Vibration & Resonance Control: Supports auto-tuning, stiffness level settings, and utilizes up to four simultaneous notch filters to stop mechanical shaking.
- High-Speed Processing: Achieves an ultra-short EtherCAT cycle time of 125 μs.
- Encoder Support: Works flawlessly with Inovance MS1 series motors that use high-resolution 23-bit absolute encoders.
- Physical Installation Details: Read the Inovance SV660N Hardware Guide to see mounting footprints, dimensions, and terminal pinouts.
- Product Overview: Browse the main Inovance SV660N Series Catalog for a broader look at performance charts and accessories.
-
- Manufacturer: INOVANCE
- Model / Part Number: SV660NT012I
- Communication: EtherCAT
- Supply Voltage: 3-phase 380–400 VAC
- Motor Power Range: 2.5–3.0 kW
- Carrier Frequency: 12 kHz
- Fault History: Stores up to 30 fault records
-
REQUEST A QUOTE
- Specification Attribute: Rated Value / Detail
- Power Output: 1.5 kW (Kilowatts)
- Input Voltage Rating: 3-Phase 400V to 480V AC (Typical for industrial grids)
- Network Interface / Protocol: EtherCAT (Real-time industrial Ethernet)
- Safety Certification: STO (Safe Torque Off) integrated
- Ingress Protection Rating: IP20 (Standard electrical cabinet mounting)
- Tuning-Free Operation: Features advanced underlying control algorithms that eliminate the need for lengthy manual PID tuning or complex servo adaptation upon installation.
- EtherCAT Communication: Built-in real-time Ethernet interfaces allow seamless multi-axis synchronization with high-speed host controllers or PLCs.
- Multi-Encoder Support: Capable of interfacing with various motor feedback systems, including linear motors and high-resolution absolute encoders.
- Global Compliance Standards: The hardware conforms to highly rigorous global marks including CE, UL, TUV, UKCA, KC, EAC, and SEMI F47 voltage sag immunity protocols.
INOVANCE SV680NT5R4I AC Servo Drive (SV680).
