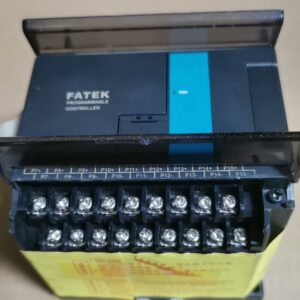

Showing 17–26 of 26 results
-
- Manufacturer: FATEK
- Model / Part Number: FBS-16RTD
- Total Channels: 16 channels, meaning it can connect to 16 separate sensors.
- Wiring Method: Uses a 3-wire connection for each sensor. This is helpful because it automatically ignores the natural electrical resistance of long wires, keeping your readings accurate.
- Built-in Smoothing: Features a software "moving average" filter to stop the numbers from jumping around erratically if there is electrical noise.
- Power Supply: Runs on a standard 24V DC power setup.
-

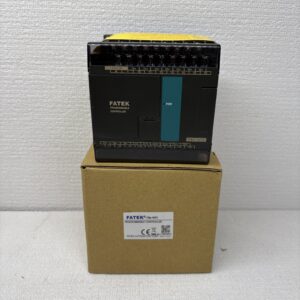

- Manufacturer: FATEK
- Model / Part Number: FBS-16TC
- Input Channels: 16 channels for thermocouple input.
- Supported Thermocouple Types: J, K, R, S, E, T, B, and N type sensors.
- Built-In Features: Cold Junction Compensation (CJC) and open thermocouple wire fault detection.
- High Resolution Option: Gives you a fine 0.1°C resolution with a 6-second temperature update cycle.
- Fast Mode Option: Gives you a 1.0°C resolution with a faster 3-second temperature update cycle.
-
- Manufacturer: FATEK
- Model / Part Number: FBS-16XYR
- Total Points: Adds 16 digital channels to your system.
- Digital Inputs: 8 input channels that accept 24VDC (Direct Current) signals. These inputs can be wired as either NPN or PNP configurations.
- Digital Outputs: 8 relay output channels. These use physical mechanical switches inside the unit to turn external devices on or off. They can handle up to 230VAC at 2 Amps.
- Physical Setup: This is a right-side expansion module. It snaps directly into the right side of the main FBs PLC unit using built-in ribbon cables.
- Size: It has standard compact dimensions measuring 90mm x 60mm x 80mm (Height x Width x Depth).
- FBs: Fits the Fatek FBs main series of PLCs.
- XY: Contains both inputs (represented by 'X' in PLC programming) and outputs (represented by 'Y').
-

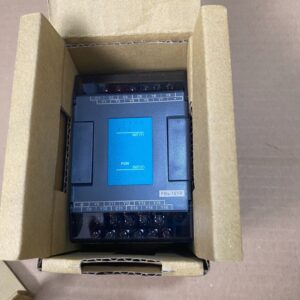

- Manufacturer: FATEK
- Model / Part Number: FBS-16YR
- Output Count: 16 digital output points.
- Output Type: Mechanical Relay.
- Electrical Rating: Supports up to 250VAC or 30VDC at a maximum of 2A per point.
- Installation: Attaches as a Right-Side Expansion Unit and mounts onto standard DIN rails.
- Physical Size: Measures 90mm (H) x 60mm (W) x 80mm (D).
- FBs: Points to FATEK's high-performance micro PLC series.
-

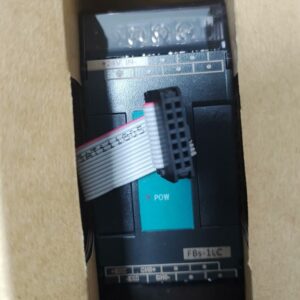

- Manufacturer: FATEK
- Model / Part Number: FBS-1LC
- Input Channels: 1 channel for a load cell.
- Internal Resolution: 20-bit (very precise).
- Output Data: 16-bit signed integer format.
- Excitation Voltage: 5V DC.
- Sensor Sensitivity: Works with 2 mV/V, 5 mV/V, 10 mV/V, and 20 mV/V sensors.
- Sampling Rates: Adjustable between 5 Hz to 80 Hz.
- Set the Zero Point (Tare): Clear out any existing weight from the scale bed.
- Apply a Known Weight: Place a heavy, exact weight onto the scale.
- Set the Max Reference: Enter that known weight value into register R2 and flip a specific setting bit to lock it in.
- Software: You need WinProLadder V3.22 or newer to access the easy I/O configuration screens.
- PLC Firmware: The main PLC unit should run OS V4.71 or newer for seamless multi-module tracking.
-
REQUEST A QUOTE
- Power Supply Type: 24V DC
- Total I/O Channels: 20 Points Total
- Digital Inputs: 12 Points (24VDC)
- Digital Outputs: 8 Points (Relay Dry-Contact)
- Onboard Comm Ports: 1 x RS232 or USB Port (Expandable up to 3 total ports via expansion boards)
- Memory Allocation: 20K words Program Space / 20K words Data Space
- Execution Functions: 86 built-in sequential and application control functions
- Real-Time Clock: Built-In RTC hardware module included
- I/O Expansion Limits: Expandable up to 256 physical digital I/O points
- Regulatory & Origins: Manufactured in Taiwan; CE, RoHS, and UL certified
FATEK FBS-20MAR2-D24 PLC Main Unit (FBs Series).
-
REQUEST A QUOTE

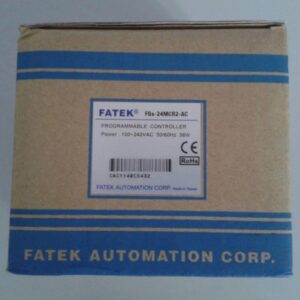

- Manufacturer: FATEK
- Model / Part Number: FBS-24MCR2-AC
- Digital Inputs: 14 points, 24 VDC
- Digital Outputs: 10 relay outputs
- Supply Voltage: 100 to 240 VAC
- Real-Time Clock: Built-in
- Terminal Blocks: Detachable, 7.62 mm pitch
FATEK FBS-24MCR2-AC is a programmable logic controller with 14 digital inputs and 10 relay outputs. It operates from a 100 to 240 VAC supply and includes a real-time clock.
-
REQUEST A QUOTE

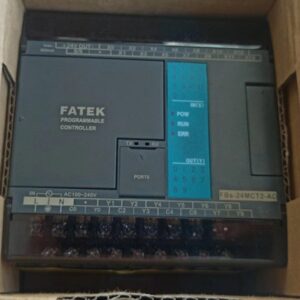

- Manufacturer: FATEK
- Model / Part Number: FBS-24MCT2-AC
- Digital Inputs: 14 points, 24 VDC
- Digital Outputs: 10 NPN sinking transistor outputs
- Supply Voltage: 100 to 240 VAC
- Real-Time Clock: Built-in
- Terminal Blocks: Detachable, 7.62 mm pitch
- Maximum I/O Expansion: 256 points
FATEK FBS-24MCT2-AC is a programmable logic controller with 14 digital inputs and 10 NPN transistor outputs. It uses a 100 to 240 VAC supply and includes a real-time clock.
-
- Manufacturer: Fatek
- Model / Part Number: FBs-2DA
- Output Channels: 2 separate channels.
- Signal Types: It can output Voltage (-10V to +10V or 0V to 10V) or Current (-20mA to +20mA or 0mA to 20mA).
- Resolution: 14-bit, which gives you very precise steps.
- Signal Precision: It moves in tiny steps of 0.3mV for voltage and 0.61µA for current.
- Power Requirement: Requires an external 24V DC power supply.
-
REQUEST A QUOTE
- MA: Economy/Basic main unit type.
- AC: Powered by standard alternating current.
- Feature / Attribute: Specification Details
- Total I/O Points: 60 Points
- Digital Inputs: 36 points 24VDC (up to 10KHz high-speed input across 4 points)
- Digital Outputs: 24 points Relay
- Power Supply: 100~240VAC, 50/60Hz
- Power Consumption: 36W (Max Current: 400mA)
- Communication: 1 built-in RS-232 port (expandable up to 3 ports via expansion boards)
- Memory Capacity: 20K words program space, 20K words data space
FATEK FBS-60MAR2-AC PLC Main Unit (FBs Series).
