BELIMO LM230A-S Damper Actuator (LM Series)

• Torque: 5 Nm
• Nominal Voltage: AC 100…240 V (50/60 Hz)
• Control Type: Open/close or 3-point
• Running Time: 150 seconds for a 90° rotation
• Integrated Auxiliary Switch: 1x SPDT (Single Pole Double Throw)
• Protection Rating: IP54, NEMA 2
• Ambient Temperature Range: -30°C to +50°C
• Manual Override: You can temporarily disengage the gear train using a push-button to adjust the damper manually.
• Selectable Rotation: Direction of motion can be reversed using a built-in switch (0 for counter-clockwise, 1 for clockwise).
• Mechanical End Stops: The angle of rotation can be adjusted mechanically to fit your specific damper limits.

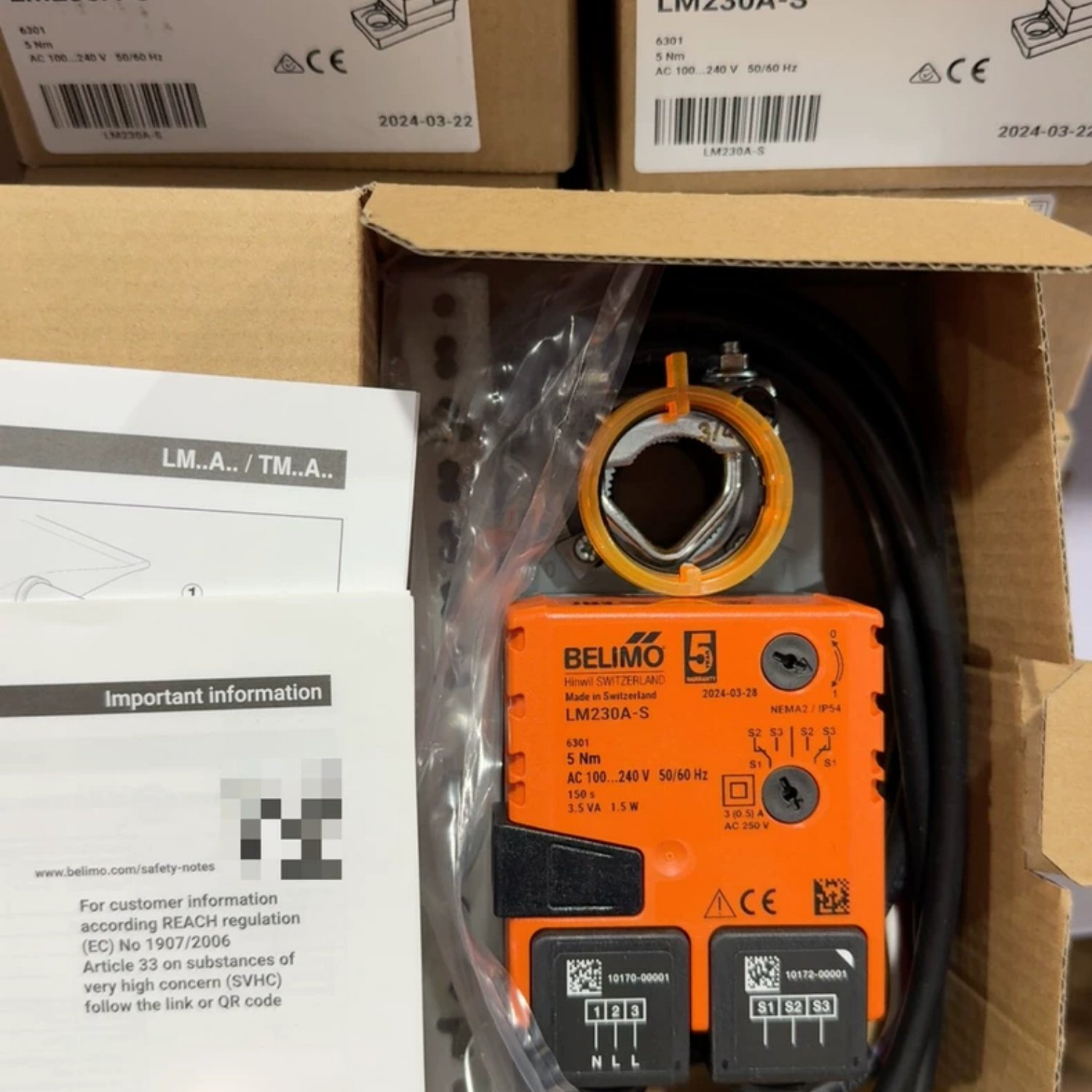

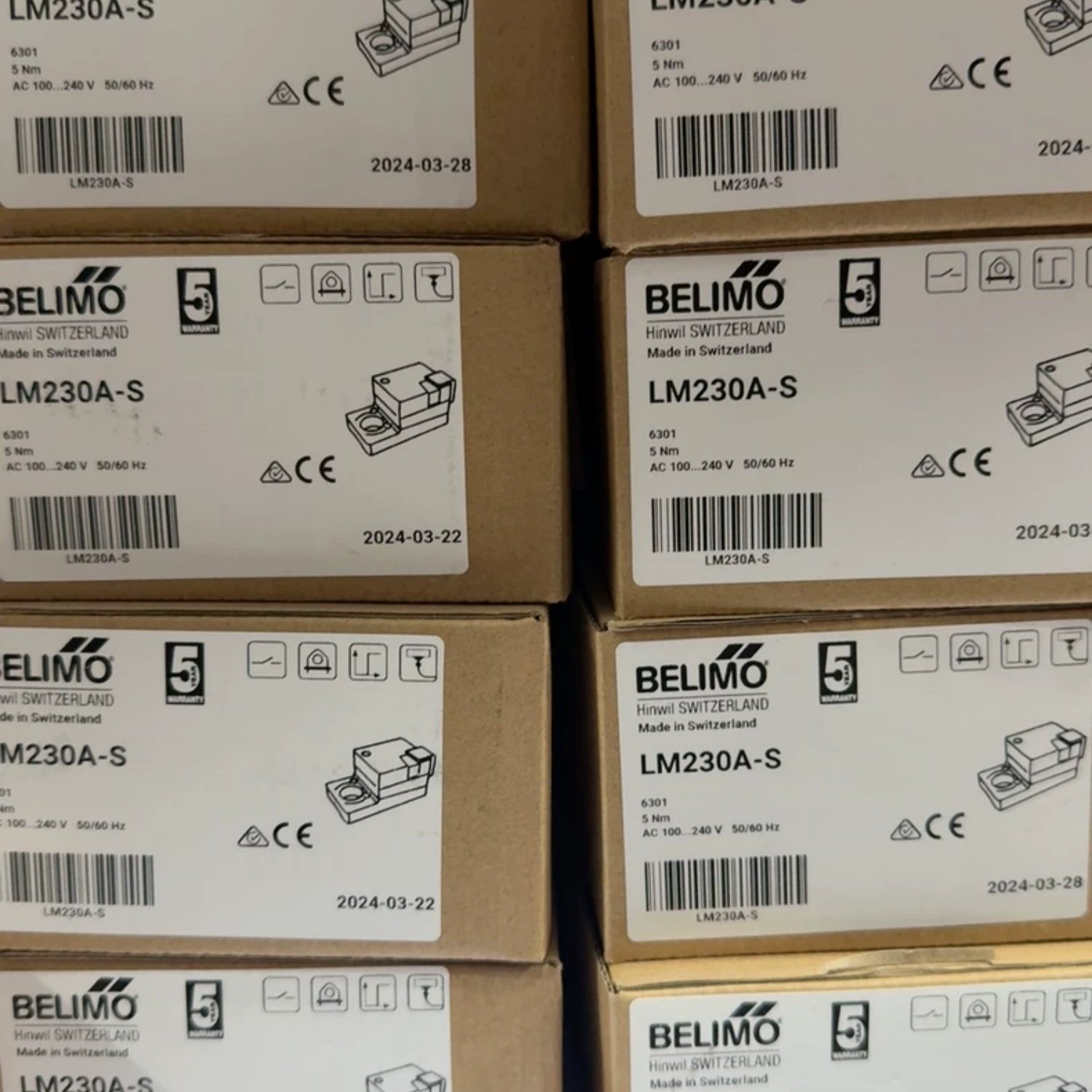

Brand New BELIMO LM230A-S Actuator. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
