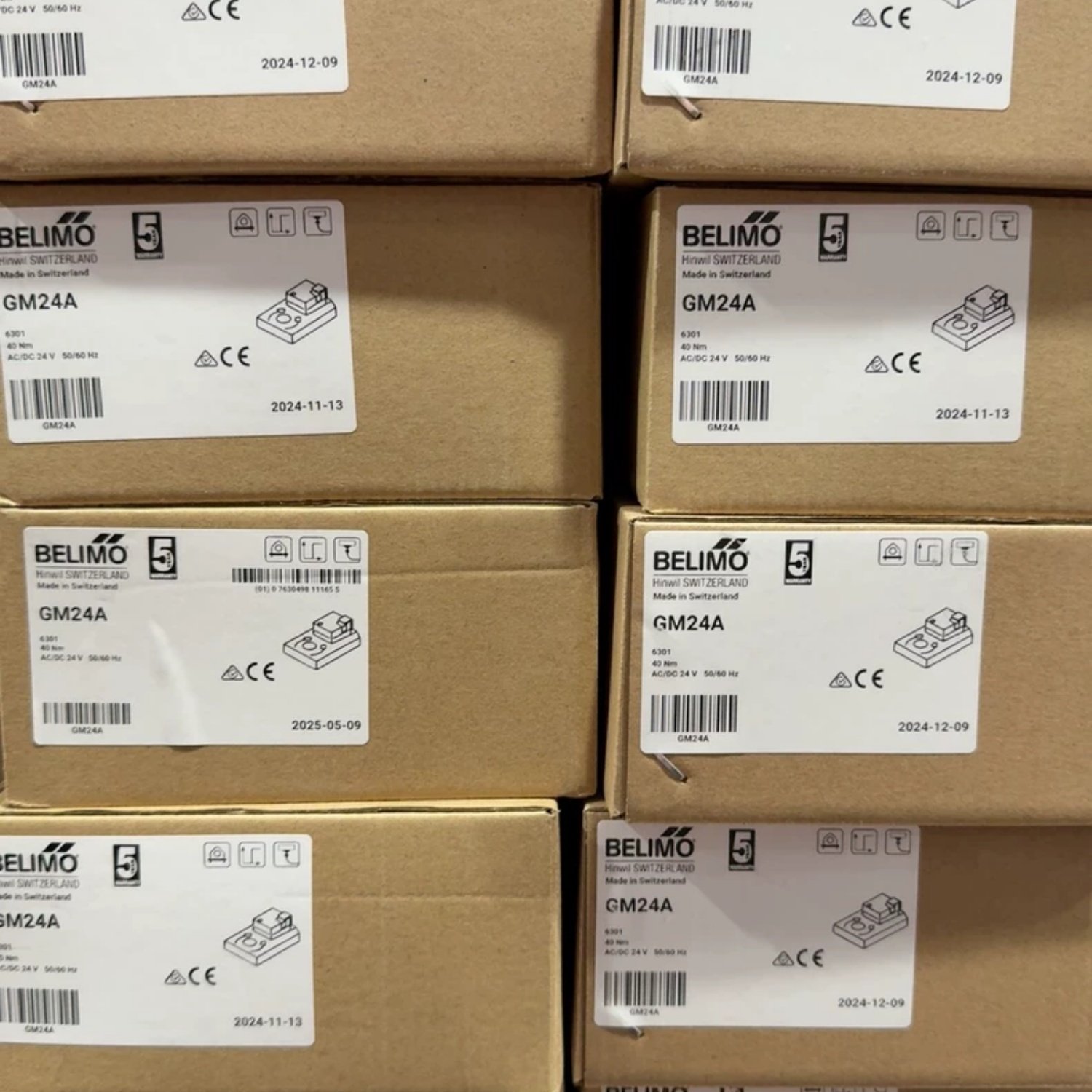

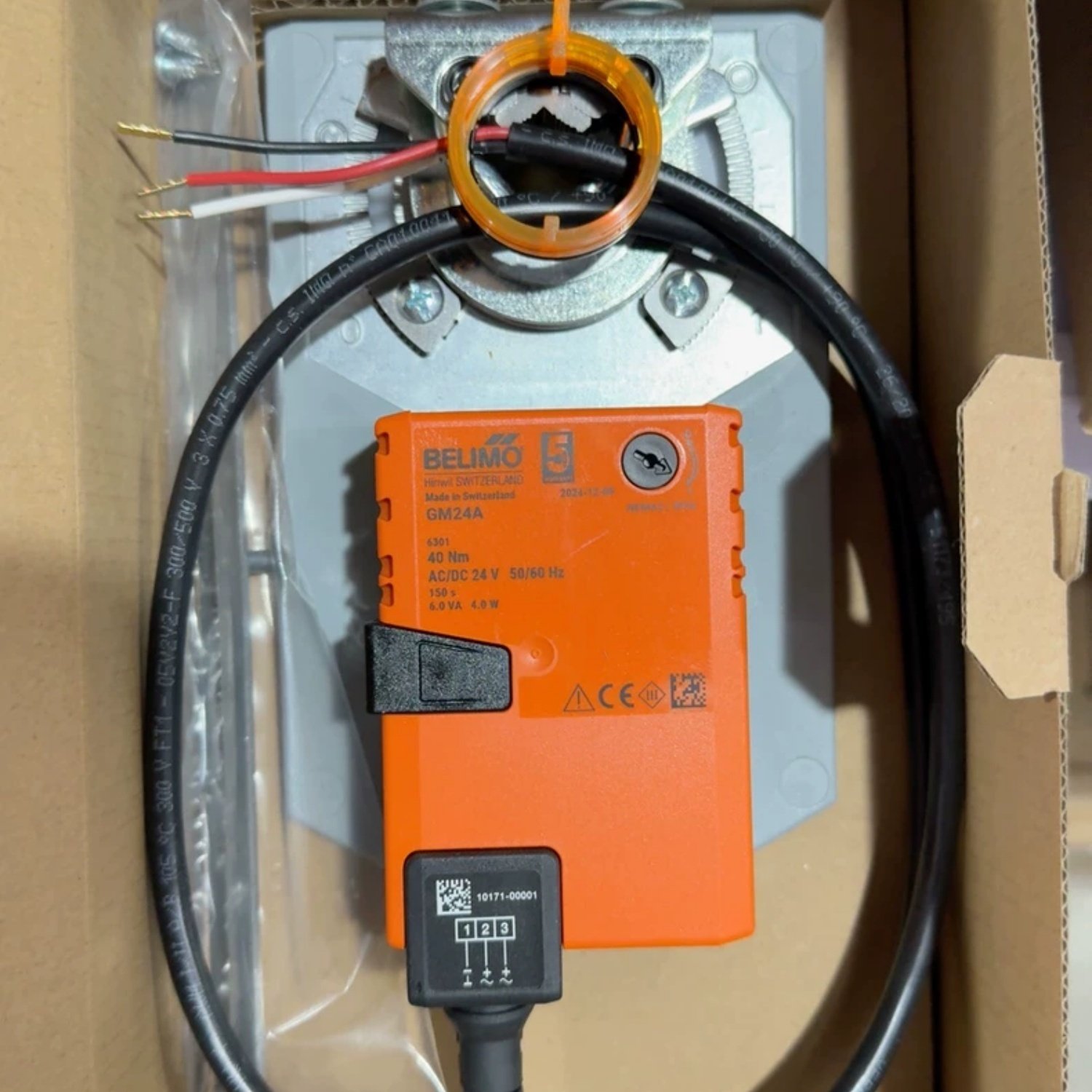

BELIMO GM24A Damper Actuator (GM Series)
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Torque: 40 Nm (360 in-lb)
- Max Damper Size: Approx. 8 m²
- Running Time: 150 seconds (for 90° rotation)
- Power Consumption: 4 W in operation / 2 W in rest position
- Angle of Rotation: Max. 95°, adjustable with mechanical end stops
- Shaft Compatibility: Universal clamp for 12 mm to 26.7 mm spindles
- Protection Class: IP54 / NEMA 2
- Control Type: Open/Close or floating point.
- Wiring: Available with a pre-wired cable or terminal connection (-TP).
Brand New BELIMO GM24A Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: GM24A
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
