- Output Type: Bipolar: 1 x NPN and 1 x PNP discrete digital outputs
- Supply Voltage: 10 V DC to 30 V DC (12V / 24V nominal)
- Sensing Beam: Visible Red Light, 680 nm wavelength
- Response Time: 200 ms / 0.2 seconds
- Repeatability: 66 to 100 μs
- Adjustment Interface: TEACH mode button with a dynamic bar-graph display
- Connection Type: 2-meter (6.5 ft) pre-wired cable with bare-end flying leads (6 pins)
- Housing Material: Thermoplastic with a Polycarbonate (PC) cover
- Environmental Protection: IP50, NEMA 1 (intended for indoor DIN-rail tracks)
- Operating Temperature: -20°C to +55°C (-4°F to 131°F)

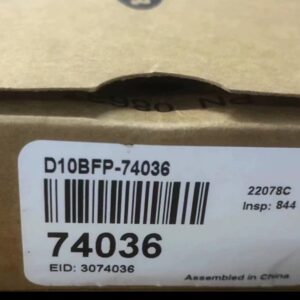

Brand New BANNER D10BFP 74036 Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Method: Retro-reflective / Mirror Reflex (requires MR-1 mirror)
- Sensing Distance: Up to 2.0 meters (200 cm / approx. 6.5 feet)
- Operating Voltage: Universal: 12 ~ 240 VDC or 24 ~ 240 VAC (50/60 Hz)
- Control Output: Relay Output (Mechanical contact)
- Contact Rating: High-capacity 3A / 250VAC max
- Output Status: Normally Open (NO) — triggers when the beam is broken / "Received ON"
- Light Source: Invisible Infrared LED
- Sensitivity Adjuster: None (Fixed sensitivity, factory pre-set for standard environments)
- Protection Class: IP-65 (Dust-tight and protected against water jets)
- Housing Material: Heavy-duty ABS case; Polycarbonate (PC) lens
Brand New FOTEK A3G-2MRS+MR-1 Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Type: Retro-reflective / Mirror Reflex (Infrared LED)
- Sensing Distance: Up to 4.0 meters (approx. 13.1 feet)
- Operating Voltage: DC: 12 ~ 240 V
- AC: 24 ~ 240 V (50/60 Hz)
- Output Method: Relay Contact
- Output Status: Normally Open (NO)
- Contact Current Rating: 3A / 250VAC max capacity
- Protection Rating: IP-65 (Dust-tight and water-jet resistant)
- Sensitivity Adjuster: None (Fixed sensitivity standard type)
- Integrated Multi-Surge Killer: The internal circuitry features heavy-duty protection built to suppress power spikes and surge damages typical of industrial environments.

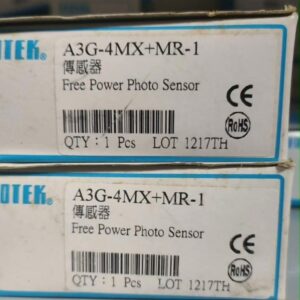

Brand New FOTEK A3G-4MX+MR-1 Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Type: Reflex / Retroreflective
- Sensing Distance: Up to 1.0 Meter (100 cm / ~3.28 ft)
- Operating Voltage: 12 ~ 240 VDC or 24 ~ 240 VAC (50/60 Hz)
- Output Method: Relay Output (SPDT Contact)
- Output Status: NO (Normally Open / Received ON)
- Sensitivity Adjuster: 270° Trimmer
- Light Source: Infrared LED
- Response Time: Max 15 ms
- Protection Class: IP65
- Connection Method: Pre-wired 2-meter cable
Brand New FOTEK A3R-1MX Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Type: Thru-Beam (Emitter + Receiver)
- Sensing Distance: 10 Meters (32.8 feet)
- Operating Voltage: Multi-Voltage: 12~240 VDC or 24~240 VAC (50/60 Hz)
- Output Method: Mechanical Relay Contact
- Output Status: Normally Open (NO) / Break On
- Contact Rating: Max 3A at 250 VAC
- Light Source: Infrared LED
- Sensitivity Adjuster: Fixed (Without manual adjustment trimmer)
- Protection Class: IP-65 (Dust-tight and water-jet resistant)
- Housing Material: High-intensity ABS case; Polycarbonate (PC) lens

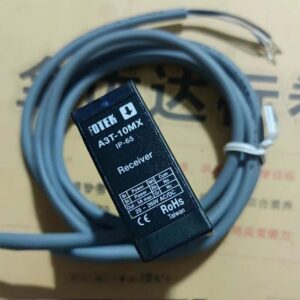

Brand New FOTEK A3T-10MX Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
Technical Specifications
- Manufacturer: FOTEK Controls
- Model Number: E3T-10MX+BR-1
- Sensor Type: Thru-Beam (Requires a separate emitter and receiver pair)
- Sensing Distance: Up to 10.0 meters (approx. 32.8 feet)
- Sensitivity Adjuster: None (Fixed baseline sensitivity)
- Environmental Protection: IP-66 rated (Dust-tight and protected against powerful water jets)
- Product Group: Industrial Automation & Motion Controls
- Long-Range Detection: Perfect for conveyor systems, automated gates, and large machinery monitoring where components are spaced far apart.
- Rugged Construction: Built with an IP-66 enclosure, making it resilient against wet, dusty, or harsh manufacturing environments.
- High Reliability: The through-beam configuration offers the most reliable form of photoelectric sensing because the object directly interrupts the light beam between two units, minimizing false reads from color or reflectivity variations.
Brand New FOTEK E3T-10MX+BR-1 Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Detection Range: 0 to 5 meters (7 m threshold range)
- Light Source: Modulated visible red LED
- Operating Voltage: 10 to 30 V DC
- Signal Output: 1 PNP output, open collector
- Switching Type: Light-ON / Dark-ON adjustable switch
- Switching Frequency: Max. 1 kHz
- Response Time: 0.5 ms
- Connection Type: M8 x 1 connector, 4-pin
- Protection Degree: IP67
- Housing Material: Polycarbonate (PC) housing, PMMA optical face
Brand New PEPPERL+FUCHS ML100-55-95-103 Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
