REQUEST A QUOTE
- Voltage Supply: AC200/220/240V at 50/60 Hz.
- Output Contacts: DPDT (2 Form C) time-limit contacts rated at 3A at 250VAC (resistive load).
- Time Settings: Ultra-wide coverage from 0.1 seconds up to 9990 hours, easily configured using front-facing pushwheel switches combined with time-unit switches.
- Physical Form Factor: Standard 1/16 DIN (48 × 48 mm front panel).
- Mounting type: 8-Pin Socket (surface or DIN rail mountable via an optional base socket like the Omron PF085A, sold separately).
- Display: High-visibility digital LCD with an integrated countdown bar graph.
- Mode: Function Type
- Power/Coil Terminals: Pin 2 and Pin 7 accept the raw AC220V line input.
Brand New OMRON H3CA-8 AC220V Timer. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model Identification: H3CA-8H AC200/220/240
- Supply Voltage: 200 / 220 / 240 VAC (50/60 Hz)
- Mounting Type: 8-pin plug-in unit (compatible with surface, panel, or DIN rail tracks using separate sockets).
- Time Range: 0.1 seconds to 9,990 hours (configured via thumbwheel switches).
- Display: 5-digit digital display paired with a real-time LCD time-remaining bar graph.
- Contact Form: SPDT (Single Pole Double Throw), typically rated at 3 A resistive load.
- Standards & Compliance: UL Listed, CSA Certified, EMC compliant (EN61812-1), and CE marked.
- Mode: Function Name
Brand New OMRON H3CA-8H 220VAC Timer. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Rated Supply Voltage: 100 to 240 VAC (50/60 Hz) / 100 to 125 VDC
- Operating Voltage Range: 85% to 110% of rated voltage
- Time Range Capacity: 0.05 seconds to 300 hours (Field-selectable via rotary dials)
- Contact Configuration: Double-Pole Double-Throw (DPDT) time-limit output
- Contact Rating (Resistive): 5 A at 250 VAC / 5 A at 30 VDC
- Contact Rating (Inductive): 2 A at 250 VAC / 3 A at 30 VDC
- Pin Configuration: 11-pin round socket connection
- Input Type: No-voltage input (NPN type default)
- Accuracy: ±0.2% operating time accuracy
- Dimensions & Mounting: DIN 48 x 48 mm panel cutout (Length ≤ 75 mm)
Brand New OMRON H3CR-A 100-240VAC Timer. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Feature / Attribute: Technical Specification Value
- Model Type: Solid-State Multifunctional Timer (8-Pin Connection)
- Rated Supply Voltage: 100 to 240 VAC (50/60 Hz) or 100 to 125 VDC
- Allowable Voltage Range: 85% to 110% of the rated power supply voltage
- Time Setting Ranges: 0.05 s to 300 h (divided into 14 to 18 field-selectable sub-ranges)
- Repeat Accuracy: ±0.2% max. (relative to the full-scale set value)
- Output Type: Relay Output: DPDT (2 Form C time-limit contact form)
- Contact Rating: 5 A at 250 VAC / 5 A at 30 VDC (Resistive Load)
- Power Consumption: Relay ON: Approx. 1.6 W / 2.0 VA at 240 VAC
- Relay OFF: Approx. 1.1 W / 1.3 VA at 240 VAC
Brand New OMRON H3CR-A8 100-240VAC Timer. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer / Series: OMRON Automation & Safety / H3CR-A
- Pin Configuration: 8-pin round base (Octal connection)
- Supply Voltage Options: Standard variant: 100 to 240 VAC (50/60 Hz) / 100 to 125 VDC
- Low-voltage variant: 24 to 48 VAC / 12 to 48 VDC
- Output Contacts: 1 × SPDT (1C/O) time-delayed contact AND
- Contact Rating: 5 A @ 250 VAC / 30 VDC (Resistive load)
- Timing Range: Ultra-wide range from 0.05 seconds to 300 hours
- Operating Modes: 4 to 5 selectable dial modes (e.g., Interval, ON-Delay)
- Protection Rating: Panel surface: IP40; Terminals: IP00
- Omron Timer: Surface Relay Mounting, 100 to 125V DC/100 to 240V AC, 0.05 sec – 300 hr Model: H3CR-A8E AC100-240/DC100-125
Brand New OMRON H3CR-A8E Timer. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Primary Function: Star-Delta Motor Starting Control
- Supply Voltage: 200 to 240 VAC (50/60 Hz) — Fully covers nominal 220V systems
- Pin Configuration: 8-pin round octal plug-in terminal
- Output Type: Time-limit SPST-NO (Star circuit) & SPST-NO (Delta circuit)
- Contact Rating: 5 A at 250 VAC (Resistive Load)
- Time Ranges: 4 selectable scales: 0.5s to 120s maximum setting time
- Star-Delta Transfer Time: Selectable instant step change (0.05s, 0.1s, 0.25s, or 0.5s)
- Mounting Methods: Surface, flush, or DIN track/panel mounting (requires matching socket)
- Protection Rating: IP40 (Panel surface area)
- Compatible Sockets: Ensure you pair this plug-in module with a verified base tracking socket such as the OMRON P2CF-08 (for front-surface/DIN-track mounting) or P3G-08 (for back-mounting).

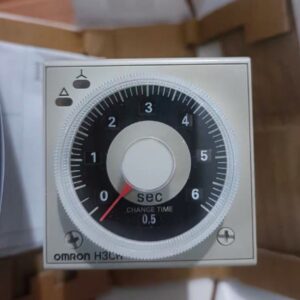

Brand New OMRON H3CR-G8L AC220 Timer. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
