- Insert Type: High-Feed Milling Insert.
- Compatible Tool Body: Optimized for the Mitsubishi AJX12 series cutter bodies.
- Insert Size: 12-size family.
- Chipbreaker Variant: FT (Flat Top) – Specifically designed to deliver higher fracture resistance, making it ideal for rough machining and scaled cast iron.
- Substrate Material: Solid Carbide.
- Application Machine: CNC Machining Centers (optimized for climb milling).
- Coating Type: Physical Vapor Deposition (PVD) AlTiN (Aluminum Titanium Nitride).
- Material Suitability: Broad versatility spanning ISO categories P15–35 (Steel), M15–35 (Stainless Steel), and K15–35 (Cast Iron). It is also certified for workpieces up to a hardness of 45 HRC.
- Key Advantage: Unlike conventional coatings, the Miracle (Al,Ti)N crystalline structure significantly increases heat resistance and coating adhesion strength. This makes it highly stable in environments prone to sudden thermal cracking or heavy edge loading.
MITSUBISHI JDMW120420ZDSR-FT VP15TF Carbide Insert (Mitsubishi).
-
- Manufacturer: MITSUBISHI

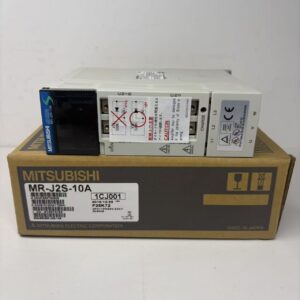

- Model / Part Number: MR-J2S-10A
- Rated Power: 100 Watts (0.1 kW) output power.
- Input Voltage: Can run on 3-phase AC 200–230V or Single-phase AC 230V (at 50/60 Hz).
- Control Modes: Position, Speed, and Torque.
- Control Interface: Uses universal analog inputs or digital pulse trains to tell the motor where to go and how fast to spin.
- Communication: Built-in RS-232C and RS-422 serial ports for connecting to a PC or programming software.
- Weight: Super light at only 0.7 kg.
-
REQUEST A QUOTE
- Manufacturer / Brand: Mitsubishi Electric
- Part Number / SKU: MR-J3ENCBL10M-A2-L (Equivalent: MRJ3ENCBL10MA2L)
- Cable Length: 10 meters / 32.8 feet
- Flexibility Class: Standard Flex (Fixed wiring; not for drag chains/moving applications)
- Ingress Protection: IP65 (Dust-tight and water-jet resistant)
- Connector Orientation: A2-L Designation: Opposite to load-side lead (cable exits toward the rear of the motor, away from the output shaft flange)
- Connector Types: L-type pre-molded encoder connector (Motor end) to Servo Amplifier connector (Drive end)
- Operating Temp: -10°C to 60°C (14°F to 140°F)
- Sheath Material: Oil- and abrasion-resistant PVC (Shielded copper conductors)
- Net Weight: 0.83 kg (1.83 lbs)
MITSUBISHI MR-J3ENCBL10M-A2-L 10M Servo Encoder Cable (MR-J3).
-
REQUEST A QUOTE
- Manufacturer: Mitsubishi Electric
- Product Series: MELSERVO-J3 (MR-J3 series)
- Cable Type: Encoder cable (MR-J3ENCBL series)
- Cable Length: 3 m (from model designation 3M)
- Function: Connects the servo motor encoder to the MR-J3 servo amplifier
- IP Rating: IP20
MITSUBISHI MR-J3ENCBL3M-A1-L Servo Encoder Cable (MR-J3).
-
REQUEST A QUOTE
- Rated Output Power: 1000W (1.0 kW)
- Rated Current: 6.0 A
- Supply Voltage (AC): 200 Vac–240 Vac (Single-phase or 3-phase input)
- Supply Voltage (DC): 283 Vdc–340 Vdc
- Network Interface: SSCNET III/H (High-speed fiber optic motion network)
- Control Type: Fully closed-loop control (4-wire type)
- Encoder Interface: Load-side encoder A/B/Z-phase input
- Hardware Protections: Built-in dynamic brake & built-in regenerative resistor
- Ingress Protection: IP20
- Operating Temp: 0°C to +55°C (Ambient)
MITSUBISHI MR-J4-100B-RJ Servo Drive (MR-J4).
-
REQUEST A QUOTE
- Manufacturer: Mitsubishi Electric
- Model Classification: NV125-CV (WS-V Series, Economy Class)
- Number of Poles: 3 Poles (3P)
- Current Type: AC (Alternating Current)
- Rated Operational Voltage: 2V to 440V AC
- Leakage Current Sensitivities: Selectable / adjustable (typically 100mA / 200mA / 500mA)
- Max Operating (Tripping) Time: ≤ 0.04 seconds at rated sensitivity
- Harmonic Surge Readiness: The internal sensing circuit is built with active filters and DPDC (Dual Pole Detection Circuit) layers designed to prevent nuisance or unnecessary tripping caused by normal harmonic waves or environmental surge fluctuations.
- Compact Integration: Integrates earth-leakage relay components directly inside a standard 125-frame size footprint, allowing simple physical retrofitting in distribution boards where standard non-leakage MCCBs are deployed.
- Versatile Mounting Formats: Compatible with front surface connection, back surface connection, embedded structural, or inserted plug-in terminal distributions.
MITSUBISHI NV125-CV 3P 125A Earth Leakage Circuit Breaker (NV125).
-
REQUEST A QUOTE
- Encoder Type: Rotary Optical Absolute Encoder
- Resolution: Approximately 1,000,000 pulses/counts per revolution (10⁶ pulses/rev).
- Output Interface: High-speed serial digital data (transmitting digital gray code signals).
- Mounting Design: Hollow shaft architecture designed for direct, rigid integration onto the motor shaft.
- Lifecycle Status: Discontinued by the manufacturer. Official technical documentation from Mitsubishi Electric notes that the original component is officially substituted and succeeded by model OSA105S5A.
- Elimination of Homing Cycles: Because it tracks absolute positional data rather than incremental pulses, the system retains the precise location of the machine axes during a power failure or shutdown. Operators do not need to perform a time-consuming machine homing routine upon rebooting.
- High-Precision Closed Loop Feedback: The high pulse-count resolution ensures exceptionally smooth motion profiling, minimized torque ripple, and microscopic positioning accuracies required for tight-tolerance CNC tooling and rapid automation tasks.
- Optical Contamination: Oil, grease, or dust entering the encoder housing and clouding the glass code disc.
- Cable Degradation: Cracked or poorly shielded serial cables inducing digital noise into the grey code stream.
- Internal Component Fatigue: Degradation of the internal LED light source or photodiode receiver array over years of high-vibration runtime.
MITSUBISHI OSA105S5 Rotary Optical Encoder (OSA Series).
-
REQUEST A QUOTE
- Manufacturer: Mitsubishi Electric
- Model Type: Absolute Rotary Encoder
- Resolution: 18-bit (262,144 counts/rev nominal / ~260,000 pulses/rev specified)
- Interface: Pure Serial Digital Output (SSI / Serial Style Interface)
- Logic Supply: Nominal 5 V DC
- Mounting Type: Internal Flange Mounted
- Manufacturer Status: Discontinued (Legacy Component)
- HC-SFS Series: Regularly mounted on motors such as the HC-SFS102 and HC-SFS152 (typically 750W / 0.75kW mid-inertia motors).
- HF-Series: Used with units like the HF-104S-A48.
- Signal Structure: As a purely serial encoder, it transmits via differential data lines (Data and Data Not) rather than traditional incremental A/B phases.
MITSUBISHI OSA18-100 Rotary Optical Encoder (OSA Series).
-
REQUEST A QUOTE
- Model Series: MS-T Series
- Frame Size: 100
- Control Coil Voltage: AC 200V – 240V
- Auxiliary Contacts: 2a2b (2 NO + 2 NC)
- Mechanical Durability: 5 million operations
- Standard Terminal Covers: Equipped with integrated finger-protection terminal covers as standard to prevent accidental contact and improve electrical safety.
- Twin Auxiliary Contacts: The built-in 2NO/2NC contact blocks utilize a twin-contact configuration to ensure exceptional conduction reliability, even at low voltage and current signal levels.
- Streamlined Wiring: Supports uniform terminal sizes and simplified mounting mechanisms (including standard DIN rail configurations) for easier installation.
- Width: 100 mm
- Length / Height: 124 mm
MITSUBISHI S-T100 AC200V 2A2B Magnetic Contactor (S-T Series).
-
REQUEST A QUOTE
- Insert Style (ISO 1832): TNMG – 60 degree triangle, 0 degree clearance (negative)
- Tolerance Class (ISO 1832): M
- Chipbreaker Style: G (cylindrical hole with double-sided chipbreaker)
- Cutting Edge Length (IC): 22 mm
- Insert Thickness: 4.76 mm
- Insert Hole Diameter: 8.1 mm
- Grade: UC5115 (Mitsubishi Materials coated carbide grade)
- Typical Application: Turning (finish to semi-finish)
MITSUBISHI TNMG220408 UC5115 Carbide Insert (Mitsubishi Materials).
