Showing 1025–1040 of 1357 results
-
REQUEST A QUOTE
- Display Type: 10.4-inch TFT Active Matrix Screen
- Resolution: 640 × 480 dots (VGA)
- Touch Panel: Analog resistive type (operable with gloves)
- Backlight: Long-life LED backlight
- Power Consumption: 25 W
- Input Voltage: 24 VDC
- Enclosure Color: Black case
- Software Support: Programmed using CX-Designer software
Brand New OMRON NS10-TV00B-ECV2 Touch Screen. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Display: 5.7-inch Color TFT LCD with LED backlight, 320 x 240 pixel (QVGA) resolution, supporting up to 256/32k colors.
- Safety Features: Integrated Red Emergency Stop Button (DPST-NO output configuration) and 10 built-in function buttons.
- Memory & Storage: 60 MB internal application memory alongside a CompactFlash (CF) card slot.
- Enclosure & Protection: Rugged black case with an IP65 protection rating against water and dust ingress.
- Power Supply: Standard industrial 24 VDC (allowable range: 20.4 to 27.6 VDC) with a maximum consumption of 10W.
- Connectivity: 9-pin D-sub connector and 1 USB port for programming/maintenance. This specific model does not include a built-in Ethernet port.
Brand New OMRON NSH5-SQR10B-V2 Touch Screen. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Display Type: 5.7" Monochrome STN LCD with backlight
- Resolution: 320 × 240 pixels
- Frame Color: Black (indicated by the "B" in the part number; the beige counterpart is NT31-ST123-EV3)
- Power Supply: 24 VDC
- Power Consumption: 15 Watts
- Enclosure Rating: IP65 front panel protection
- Communication Interfaces: Built-in RS-232C, RS-422A, and RS-485 ports supporting Host Link and high-speed NT Link
- Software: Configuration requires the NT Support Tool.
- No USB Support: This model does not feature a USB port. Data backup and uploads must be performed via serial communication using an RS-232C interface or a compatible USB-to-Serial adapter.
- System Menu Access: To force the unit into transmit mode, press and hold any two corners of the touchscreen simultaneously for 2 to 3 seconds. The touch areas are notoriously small, so multiple attempts may be necessary.
Brand New OMRON NT31-ST123B-EV3 Touch Screen. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Number of Points: 16 digital outputs.
- Rated Voltage: 24 VDC (Operating load range of 15.0 to 28.8 VDC).
- Maximum Current: 0.5 A per point, capped at a maximum of 4 A total per unit.
- ON/OFF Response Time: 0.5 ms maximum OFF-to-ON delay / 1.0 ms maximum ON-to-OFF delay.
- Connection Method: 1-wire connection layout using a detachable push-in (spring-clamp) terminal block.
- Protection: Short-circuit protected outputs.
- Refreshing Methods: Supports Free-Run, Standard Speed, and Synchronous I/O refreshing (synchronizes directly with the controller cycle when connected via EtherCAT).
Brand New Omron NX-OD5256 Digital Transistor Output Unit (NX Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Control Method: Pulse train / Pulse input control
- Rated Output Capacity: 0.4 kW (400 W)
- Input Supply Voltage: 200–230 V AC, Single-phase (50/60 Hz)
- Load Current/Voltage: 2.5 A / 200 V load
- Compatible Motors: R88M-G40030H / R88M-GP40030H
- Mounting Type: Chassis Mount
- Operating Temperature: 0°C to +55°C
- Compliance: RoHS3 Compliant, Reach Unaffected
Brand New OMRON R7D-BP04H Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Rated Output Power: 400 W (0.4 kW)
- Main Circuit Input Voltage: Single-phase 200 to 240 VAC (170 to 252 V)
- Control Circuit Voltage: 24 VDC (21.6 to 26.4 V)
- Current Output Rating: 2.3 A
- Supported Encoder: 23-bit high-resolution multi-turn (battery-free)
- Physical Dimensions: 223 mm (H) × 55 mm (W) × 196.05 mm (D)
- Weight: Approx. 1.5 kg
- Built-in Safety (STO): Features a hardwired Safe Torque Off (STO) conforming to PLe (EN ISO 13849-1) and SIL3 (IEC 61508) standards, alongside network-based STO capabilities.
- Advanced Architecture: Equipped with screw-less, push-in pluggable connectors to facilitate rapid pre-wiring, reducing overall installation and maintenance times.
- Integrated Brake Control: An embedded relay allows direct motor brake control without requiring external components.
Brand New OMRON R88D-1SN04H-ECT Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Output Voltage: 12 VDC (Adjustable)
- Output Current: 4.3 A
- Rated Power: 50 W
- Input Voltage (AC): 100 to 240 VAC nominal (Permissible: 85 to 264 VAC)
- Input Voltage (DC): 80 to 370 VDC permissible
- Efficiency: 86% typical
- Number of Outputs: 1 branch
- Isolation Voltage: 3 kV
- MTBF: 135,000 hours
- Physical Housing: Enclosed style featuring a durable metal frame with an integrated DIN-rail mounting bracket.

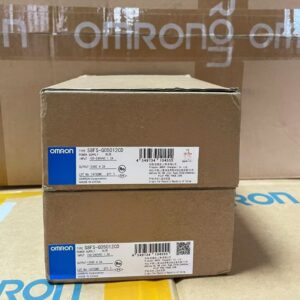

Brand New OMRON S8FS-G05012CD Switching Power Supply. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Output Wattage: 60 W
- Output Voltage: 24 VDC (Adjustable from -10% to +15% via front potentiometer)
- Output Current: 2.5 A
- Input Voltage Range: Universal 85 to 264 VAC (100–240 VAC nominal) or 90 to 350 VDC
- Efficiency: 88%
- Operating Temperature: -25°C to +60°C
- Protection & Safety: IP20 rating, overload protection, and certifications for UL508, CSA C22.2, and EN50178.
- Physical Profile: Compact book-type enclosure with an enhanced vibration-resistant DIN rail mounting clip.
Brand New OMRON S8VK-C06024 Switching Power Supply. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Voltage Range: Universal 85 to 264 VAC (single-phase) or 90 to 350 VDC
- Output Voltage: 12 VDC (adjustable via a front trimmer potentiometer from -10% to +15%)
- Rated Current: 2.5 A
- Power Boost Function: Supports 120% output current power boost for temporary peak loads
- Efficiency: 82% typical
- Operating Temperature: Extremely wide range from -40°C to 70°C (-40°F to 158°F)
- Safety & Protections: Automatic reset overload protection, overvoltage protection, and UL Class 2 output compliance
Brand New OMRON S8VK-G03012 Switching Power Supply. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Number of Positions / Poles: 40 points
- Rated Voltage: 125 VAC / 24 VDC
- Rated Current: 1 A
- Connector Type (PLC Side): MIL Connector (Plug/Male, XG4A-4031)
- Terminal Block Type: Passive wiring interface with M3 captive screws
- Wiring Polarity: NPN / PNP compatible
- Terminal Pitch: 7 mm
- Insulation Resistance: 100 MΩ minimum (at 500 VDC)
- Dielectric Strength: 500 VAC for 1 minute (leakage current: 1 mA max)
- Operating Temperature: 0°C to +55°C
Brand New OMRON XW2D-40G6 Connector. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Channels: 16 Digital Inputs
- Logic Type: NPN (Note: The PNP logic version is variant XWT-ID16-1)
- Input Current: 6 mA
- Process Side Connection: Screw terminal blocks
- Mounting Style: DIN Rail
- Compatibility: Mounts directly to OMRON digital I/O slaves like the CRT1-ID16(-1) or CRT1-OD16(-1).
Brand New OMRON XWT-ID16 Connector. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Core Function: Designed for automated, high-efficiency continuous shearing or workpiece cutting when integrated into manufacturing lines or robotic end-of-arm tooling (EOAT).
- Cutting Capability: Features a soft material cutting capacity of 1.5 mm x 15 mm (such as tape, film, paper, or soft plastics like PP, PE, PS, PVC) and an intricate/hard material cutting capacity of 0.5 mm x 15 mm.
- Operating Pressure: Typically functions within a 0.4 to 0.6 MPa (4–6 kg/cm²) air pressure range.
- Form Factor: Features a compact, square-body configuration with 4 integrated mounting holes built specifically for seamless mechanical installation and rigid fixed positioning.
- Blade Structure: Built with an "interlocking/wrong knife" embedded screw sleeve structure optimized specifically for clean, flush sheet cutting without blade deviation.
- Features: * AM-10 pneumatic shear is suitable for cutting paper, tape, film, hose, thin iron sheet, thin copper sheet, soft cuttin…
Brand New OPT AM-10-100S Pneumatic Air Scissor (AM Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensor Type: Polarized Retro-reflective (excellent for shiny objects or glass)
- Sensing Range: 2.5 meters
- Control Output: NPN open collector, 100mA Max / 30V DC
- Operation Mode: Light ON / Dark ON (selectable via switch)
- Response Time: 0.7 milliseconds Max
- Light Source: Red LED
- Supply Voltage: 10 to 30 V DC (including 10% ripple)
- Power Consumption: 30mA Max
- Indicators: Single indicator LED
- Connection Type: 2-meter cable (Standard version) (Note: KR-250CN uses an M8 connector)
- Housing Material: Rugged ABS case, Polycarbonate lens, and SUS304 Stainless Steel outer cover.
- Noise Immunity: Internal circuitry designed in accordance with strict VDE standards.
- Temperature: -25°C to 55°C (-13°F to 131°F)
- Humidity: 35% to 85% RH
- Ambient Illuminance: Sunlight: 20,000 lux max / Incandescent lamp: 4,000 lux max.
- Vibration Resistance: 10 to 55 Hz (amplitude 1.5mm) on X-Y-Z axes for 2 hours.
- Conformity: JIS, UL, CE, VDE.
- SPECIFICATIONS: * Sensor Type: Retro-reflection with polarizing filter. * Cable Type NPN. * Sensing range: 2.5m. * Light source: R…
Brand New OPTEX KR-250N Retro-Reflective Photoelectric Sensor (KR Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Output Power: 25 Watts (1/30 HP)
- Voltage & Power Supply: Single-Phase 200–230 VAC (50/60 Hz)
- Current Rating: 0.35 Amps
- Configuration: 4-Pole motor with a specialized pinion shaft
- Thermal Insulation Class: 120 (E)
- Operating Environment: -10°C to +50°C (non-freezing) with up to 85% non-condensing humidity
- Part Number: 4IK25RGN-C. Clear. Oriental Motor K Series Small AC Motor, electromagnetic brakes, standard environment, single phase…
Brand New Oriental Motor 4IK25RGN-C AC Speed Control Motor (World K Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Output Power: 120 Watts (1/6 Horsepower)
- Frame Size: 3.54 in / 90 mm (Frame size 5)
- Shaft Type: Pinion Shaft (Requires a GFS type gearhead, sold separately)
- Ingress Protection: IP65 rated for dust and water resistance
- Electromagnetic Brake: Not equipped
- Safety Certifications: UL, CSA, and CE compliant
- Speed Stability: Offers excellent speed regulation and a flat torque curve across its entire speed range.
- Energy Efficient: Built with advanced brushless technology to minimize power consumption in a compact form factor.
- Expanded Settings: When combined with an optional OPX-2A control module or dedicated data setting software, you can unlock up to 8 distinct speed settings and custom torque limiting functions.
- A Gearhead: Choosable options include standard parallel shaft gearheads (e.g., GFS5G50) or space-saving hollow shaft flat gearheads (e.g., GFS5G30FR).
Brand New ORIENTAL MOTOR BLEM512-GFS Motor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Dimensions / Size: 180 mm × 180 mm × 90 mm (7.09" × 7.09" × 3.54")
- Input Voltage: Single-Phase AC 200V / 220V / 230V
- Frequency: 50 / 60 Hz
- Current / Power: 0.4A (at 50 Hz) / 0.5A (at 60 Hz)
- Fan Speed: 2,850 RPM (50 Hz) / 3,350 RPM (230V, 60 Hz)
- Max Air Flow: 388 CFM (50 Hz) / 452 CFM (60 Hz)
- Noise Level: 56 dB(A) at 50 Hz / 61 dB(A) at 60 Hz
- Materials: Heavy-duty die-cast aluminum frame with polycarbonate blades
- Bearing Type: Dual precision ball bearings
- Connection Type: Terminal box
- Industrial Build: Designed with dual ball bearings and a robust aluminum housing to endure continuous duty cycles in harsh factory environments.
- High Static Pressure: Specifically engineered to clear heat pockets inside densely packed electrical cabinets or high-impedance machinery setups.
- OEM Custom Parts: For machine-specific integrations (e.g., Mazak parts catalogs), matching the exact model code MRS18-DUL ensures direct drop-in compatibility.
Brand New ORIX MRS18-DUL AC220/230V Single-Phase AC Axial Cooling Fan (MRS Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
