Showing 1057–1072 of 1357 results
-
REQUEST A QUOTE
- Valve Function: 2-Way, Normally Closed (N.C.)
- Port Size: G 1/2" inch thread
- Orifice Size: 15 mm
- Maximum Operating Pressure: Up to 40 bar (approx. 580 PSI)
- Flow Factor (Kv): Up to 4.7 m³/h (approx. 60 l/min)
- Body Material: Heavy-duty Brass
- Seal Material: Polyurethane (PUR) for superior durability under pressure
- Standard DC Configuration: Frequently paired with a 24VDC coil pulling 9W to 12W, utilizing a standard 32mm DIN plug connection.
- Alternative Voltages: AC configurations (such as 110VAC or 220VAC at 50/60Hz) are also widely available through standard cross-references for industrial power grids.
Brand New PARKER 321H35 Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Valve Size / Pattern: NG06 / CETOP 03 / NFPA D03
- Configuration: 4-way, 2-position (4/2)
- Spool Type: Type B (Spring return mechanics)
- Electrical Supply: 24V DC solenoid coil (drawing ~1.29A / 30W)
- Maximum Flow Rate: Up to 70–80 L/min (~18–20 GPM) depending on the hydraulic circuit pressure
- Maximum Pressure: 350 bar (5,000 PSI) on ports P, A, and B; 210 bar (3,000 PSI) maximum tank port (T) pressure
- Construction Material: Cast iron/ductile iron body with Nitrile (NBR/Buna-N) seals
- Electrical Connection: DIN 43650 connector pattern (IP65 rated)
- JW: 24V DC voltage rating with a DIN connector pattern
Brand New Parker D1VW020BNJW D1VW020BNJW91 Hydraulic Directional Control Valve (D1VW Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Processor: Integrated, on-board Intel Pentium MMX CPU running at 266 MHz.
- Chipset: Intel 430TX (PCIset TX Triton II).
- Memory: Two 144-pin SDR SO-DIMM sockets supporting up to 256 MB SDRAM.
- On-board Storage: CompactFlash SSD solution slot.
- Display Controller: C&T 69000 VGA/LCD controller with integrated PCI SVGA support.
- Networking: 10/100 Mbps Ethernet RJ-45 connection.
- Expansion Slots: 1x 16-bit ISA bus interface and 1x PC/104 expansion interface.
- System Protection: On-board Watchdog Timer capable of triggering a system reset or IRQ 11.
- BIOS: AWARD 256 Kbit Flash BIOS featuring Plug & Play, APM 1.2, and Ethernet Boot ROM capability.
Brand New ADVANTECH PCA-6751REV B202-1 Single Board Computer (PCA-6751 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Range: 200 mm to 1000 mm (0.2–1 meter)
- Output Type: PNP, Normally Open (N/O)
- Electrical Connection: M12 connector
- Operating Voltage: 18–35 V DC
- Ultrasonic Frequency: 200 kHz
- Adjustment: Built-in potentiometer for fine-tuning the detection threshold
- Form Factor: Block / rectangular design with integrated bracket mounting
- Manufacturer Part Number (MPN): 559539
Brand New PEPPERL+FUCHS 3RG6343-3AB00-PF Ultrasonic Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Method: Capacitive
- Installation: Non-flush / unshielded
- Output Type: 2-wire AC, Normally Open (NO)
- Switching Frequency (f): 0 to 10 Hz
- Sensitivity Adjustment: Integrated potentiometer for adjustable switching distance
- Housing Design: Cylindrical threaded barrel, M30 metric thread size
- Dimensions: 30 mm Diameter x 80 mm Length
- Material: PBT (Polybutylene Terephthalate) housing and sensing face
- Protection Rating: IP67 (dust tight and water resistant)
- Connection Type: Built-in 2-meter PVC cable (2 x 0.75 mm² core cross-section)
Brand New PEPPERL+FUCHS CJ10-30GK-WS Proximity Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Device Type: Control interface unit / RFID evaluation unit.
- Channels & Connections: Supports up to 2 channels/ports. It can connect up to 2 read/write heads, or alternatively, 1 read/write head and 1 trigger sensor.
- Protocols: Built-in 2-port Ethernet switch supporting TCP/IP, PROFINET, EtherNet/IP, and MODBUS TCP.
- Electrical: Operating voltage of 20 to 30 V DC (PELV), with a power consumption of 3.5 W (excluding heads).
- Physical Connectors: Heavy-duty M12 plug connections for Ethernet, power, and read/write heads. Includes an M4 grounding screw.
- Housing & Protection: Rugged, powder-coated aluminum housing measuring 42mm x 62mm x 137mm with an IP67 environment protection rating.

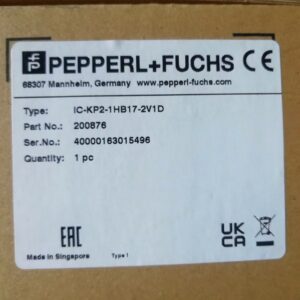

Brand New PEPPERL+FUCHS IC-KP2-1HB17-2V1D 200876 Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Channels/Ports: 2 channels (supports up to 2 read/write heads, or 1 head and 1 trigger sensor).
- Network Interfaces: Multi-protocol Ethernet support including EtherNet/IP, PROFINET IO, Modbus TCP, and TCP/IP.
- Integrated Switch: Features an integrated 2-port switch for network loop-through line topologies.
- Power Supply: 20 to 30 V DC.
- Protection Rating: IP67 rugged design.
- Housing Material: Powder-coated aluminum.
- Connections: M12 plug connectors for power, Ethernet, and read/write heads.

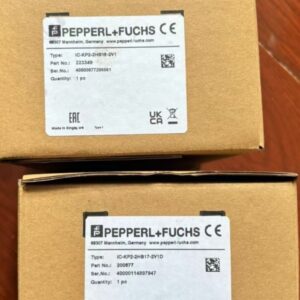

Brand New PEPPERL+FUCHS IC-KP2-2HB17-2V1D Interface Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
Single-axis 360° inclination sensor for precise position monitoring on mobile equipment and industrial machinery.
Technical Specifications
- Measuring Range: 0° to 360°
- Analog Output: 0-5 V
- Switching Outputs: 2 programmable PNP, normally open
- Supply Voltage: 10-30 V DC
- Connection: 5-pin M12 x 1
- Environmental Design: High shock resistance and E1 approval
- EMC Immunity: Up to 100 V/m
Variant note: For 4-20 mA output, use INX360D-F99-I2E2-V15.
Brand New PEPPERL+FUCHS INX360D-F99-U2E2-V15 Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Voltage & Current: 24V DC nominal voltage, 30V DC maximum continuous operating voltage, and a 250 mA rated current.
- Surge Capability: Handles a total discharge current of 20 kA (8/20 µs pulse) and an impulse discharge current of 2 kA per line (10/350 µs).
- Safety Certification: Rated up to SIL 3 safety standards.
- Line Protection: Features 2 protected signal lines with a built-in series resistance of less than 0.5 Ω per line.
- Mounting & Protection: Mounts onto standard 35mm DIN rails with an IP20 housing protection rating.
Brand New PEPPERL+FUCHS K-LB-1.30G Safety Barrier Isolator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Supply Voltage: 24 V DC (operational range 19–30 V DC via Power Rail or terminals)
- Channels: 2 fully independent channels
- Inputs: Dry contact mechanical switches or NAMUR sensors
- Outputs: Relay contacts (1 NO configuration per channel)
- Housing Width: Ultra-compact 12.5 mm space-saving design
- Functional Safety: Certified up to SIL 2 (SC 3) in accordance with IEC/EN 61508
- Features: Line Fault Detection (LFD) for open-circuits or short-circuits, and reversible operating direction via DIP switches

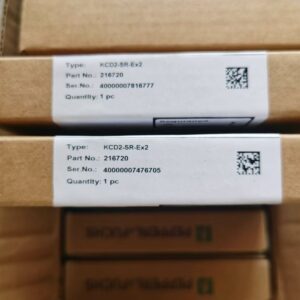

Brand New PEPPERL+FUCHS KCD2-SR-EX2 216720 Safety Barrier Isolator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Power Requirements: 24 V DC supply voltage via loop power (no separate power supply required).
- Signal Range: Handles input and output analog currents from 0 mA to 40 mA.
- Control Voltage: 4 V to 35 V DC.
- Accuracy & Linearity: High accuracy calibrated to ±1%.
- Safety & Integrity: Up to SIL 2 (Systematic Capability SC 3) compliant according to IEC/EN 61508.
- Hardware Profile: Measures 20 mm in width (compact K-System housing) featuring screw terminal connections, reverse polarity protection, and standard 35 mm DIN rail mounting.
- Specifications: * Number of Channels: 1. * Supply Voltage: 24 V DC (loop powered) * Input: Current. * Output: 0 to 40 mA. * I/P or…
Brand New PEPPERL+FUCHS KFD0-CS-EX1.51P Safety Barrier Isolator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
Brand New PEPPERL+FUCHS KFD2-CRG2-EX1.D Safety Barrier Isolator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer/Brand: Pepperl+Fuchs Process Automation
- Part Number: KFD2-GUT-1.D (Item Number: 231224)
- Channels: 1 isolated channel
- Power Supply: 20 to 30 V DC (24 V DC nominal) via Power Rail or terminals
- Input Options: Thermocouples (with optional redundant TC input), RTDs, Potentiometers, or Voltages (-100 to 100 mV, 0 to 1 V, 0 to 10 V)
- Analog Output: 0/4 mA to 20 mA current output
- Switch Output: 2 relay contact outputs (trip values)
- Configuration: Programmable via PACTware software or using the integrated front-panel keypad and LED display
- Safety Integration: Up to SIL 2 safety integrity level according to IEC/EN 61508
- Fault Detection: Built-in line fault detection (LFD) and sensor burnout monitoring

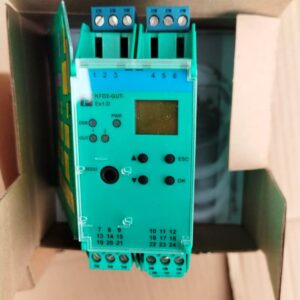

Brand New PEPPERL+FUCHS KFD2-GUT-1.D Safety Barrier Isolator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensor Style: Miniature block design with full metal thread mounting.
- Detection Range: Up to 10 meters.
- Light Source: Visible red LED (highly visible light spot for easy alignment).
- Operating Voltage: 10–30 VDC.
- Output Type: NPN (Single output, Light ON/Dark ON selectable).
- Switching Frequency: 1,000 Hz.
- Connection Type: 2-meter fixed cable.
- Ingress Protection: IP67 rated (highly resistant to dust and water).
- Adjustments: Features a sensitivity adjuster and emitter switch-off capabilities.
Brand New PEPPERL+FUCHS M100-MV100-RT-76B-102-115 Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Detection Range: 0 to 5 meters (7 m threshold range)
- Light Source: Modulated visible red LED
- Operating Voltage: 10 to 30 V DC
- Signal Output: 1 PNP output, open collector
- Switching Type: Light-ON / Dark-ON adjustable switch
- Switching Frequency: Max. 1 kHz
- Response Time: 0.5 ms
- Connection Type: M8 x 1 connector, 4-pin
- Protection Degree: IP67
- Housing Material: Polycarbonate (PC) housing, PMMA optical face
Brand New PEPPERL+FUCHS ML100-55-95-103 Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Distance: 10 mm rated operating distance with a flush (shielded) mounting profile.
- Output Configuration: 3-wire DC, NPN, Normally Open (N.O.) switching function.
- Housing Size: M30 x 1.5 thread diameter with a short 50 mm body length.
- Operating Voltage: Extended DC voltage range (typically 5 to 36 V DC or 10 to 30 V DC depending on the sub-variant revision).
- Environmental Resistance: IP67 environmental protection rating with an extended operating temperature range of -40°C to +85°C (-40°F to +185°F).
- Material: Built with a nickel-plated brass or stainless steel metal housing and a rugged PBT sensing face.
Brand New PEPPERL+FUCHS NBB10-30GM50-E0 Proximity Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
