Showing 1041–1056 of 1357 results
-
REQUEST A QUOTE

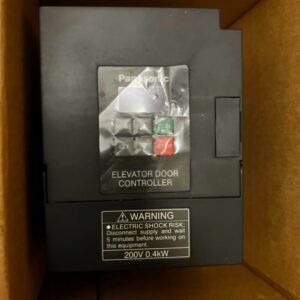

- Function: Special control elevator door inverter.
- Power Rating: 200V / 0.4KW.
- Origin: Manufactured in China.
- Interchangeability: Commonly acts as a direct interchangeable replacement model for older or failed AAD03011D and AAD03010 units.
- Smooth Motion Control: Regulates acceleration and deceleration for gentle, synchronized door movements and soft stops.
- Safety Integration: Features built-in parameters for immediate obstacle detection response (reversing doors if a passenger or object blocks them).
- Maintenance & Retrofitting: Widely used by maintenance depots as a universally compatible spare for multi-brand elevator systems utilizing Panasonic-sourced hardware, especially in low- to mid-rise buildings (≤10 floors).
- Online Parts Specialists: Available through specialized retailers like Echo Elevador Partes, which lists it as an original brand-new item.
Brand New PANASONIC AAD03011DK Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Supply Voltage: 24V DC (operating range: 20.4V DC to 28.8V DC)
- Current Consumption: 170 mA
- Operating Temperature: 0°C to +55°C
- Momentary Power-Off Time: 4 ms (at 20.4V DC) to 10 ms (at 24V DC or higher)
- Program Capacity: Variable step options: 24k, 32k, 40k, or 64k steps (configurable via system registers)
- Memory Type: Built-in Flash ROM (no backup battery required)
- Instruction Set: ~120 basic instructions; ~270 high-level instructions
- Built-in I/O Points: 32 points total (16 inputs / 16 outputs)
- Digital Inputs: 16 points, 24V DC (Supports NPN or PNP configurations)
- Digital Outputs: 16 points, 24V DC Transistor, NPN type (300mA / 100mA max load)
Brand New PANASONIC AFP0HC32ET PLC Controller. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Series: FP0H
- Supply Voltage: 24 V DC (Operating range: 20.4 to 28.8 V DC)
- Current Consumption: 140 mA or less
- Program Capacity: 32k steps built-in Flash ROM (no backup battery required)
- Memory Capacity: 32K words data memory
- I/O Expandability: Max. 384 points (Up to 7 expansion modules)
- Communication Interfaces: Built-in USB (Mini B) and RS-232C ports
- Connection Type: MIL connector (40-pin wiring termination)
- Net Weight: ~110 g
- Rated Input Voltage: 24 V DC
Brand New PANASONIC AFP0HC32T PLC Controller. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- I/O Capacity: 32 built-in I/O points (16 Digital Inputs and 16 Digital Outputs). It is expandable up to 128 total I/O points.
- Input Specifics: 24V DC Sink/Source inputs (includes 6 channels capable of 50kHz high-speed counting).
- Output Specifics: 24V DC Transistor NPN (Sink) outputs rated at 0.2A (includes 4 pulse outputs at 50kHz for axis control and 4 PWM channels).
- Memory Structure: 32k steps of program memory (with run-mode programming capabilities) and a 32k-word data memory capacity.
- Communication Ports: Built-in RS-232C serial communication port alongside a mini-USB programming interface.
- Physical Connection: Built-in MIL connector format for highly dense wiring layouts on a standard DIN rail mount.
- Programming Environment: Fully configurable through Control FPWIN Pro 7 programming software.
Brand New PANASONIC AFP0R-C32CT AFP0RC32CT PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- I/O Capacity: 14 Total Built-in I/O (8 Inputs / 6 Outputs)
- Input Type: 24V DC Digital (Supports both NPN/Sink and PNP/Source configurations)
- Output Type: Relay outputs (2 A max rating per channel)
- Supply Voltage: 24V DC
- Memory Capacity: 16k steps EEPROM program capacity
- Communication Ports: 1 x RS-232C COM Port, 1 x Mini-USB Tool Port
- Termination Type: Screw Terminal Block
- Mounting: Standard DIN Rail
- Software Compatibility: Programmed using FPWIN Pro 7
- High-Speed Processing: Equipped with built-in advanced functionalities, including support for independent high-speed counters and multi-axis pulse outputs.
Brand New PANASONIC AFP0RC14CRS FP0R-C14CRS PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Total I/O Count: 14 built-in channels (expandable up to 110 I/O).
- Inputs: 8 points, supporting both NPN and PNP configurations.
- Outputs: 6 points, switching via durable mechanical Relay contacts.
- Program Memory: 16k steps capacity.
- Supply Voltage: 24V DC.
- Communication Ports: Built-in RS232C tool port and an independent Mini-USB interface for fast programming and troubleshooting.
- Physical Connections: Screw terminal blocks.
Brand New PANASONIC AFP0RC14RS FP0R-C14RS PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Control Unit Type: FP0R-C14RS
- I/O Configuration: 14 I/O points total, consisting of 8 Inputs (24VDC, compatible with both NPN/PNP sink or source) and 6 Outputs (Relay contacts, 2A).
- Memory Capacity: 16k steps of program memory alongside a large data register allocation.
- Supply Voltage: 24V DC.
- Connectivity & Programming Ports: Features a built-in Mini USB port and an RS-232C port for tool programming and communication flexibility.
- Termination & Mounting: Uses standard screw terminal blocks for secure wiring and mounts directly onto a standard DIN rail.
Brand New PANASONIC AFP0RC14RS PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Series Compatibility: Panasonic FP-X / FP-XH PLC Series
- Number of Channels: 1 Channel
- Interface Types: RS-485 or RS-422 (Selectable via hardware/software switches)
- Insulation Type: Fully insulated port (protects the PLC from voltage spikes and ground loops)
- Maximum Baud Rate: Up to 115 kbps
- Wiring Termination: M3 Screw terminals
- Mounting Type: Direct plug-in slot on the FP-X controller body
- Space-Saving Expansion: It mounts directly onto the front face of the PLC, preserving valuable control panel space.
- Multi-Drop Networking: Ideal for configuring Modbus-RTU, MEWTOCOL, or general-purpose serial communication networks to connect HMIs, variable frequency drives (VFDs), sensors, or other PLCs.
- Electrical Protection: Internal electrical insulation ensures stable communications in high-interference industrial environments.
Brand New PANASONIC AFPX-COM3 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Display Type & Size: 5.7-inch TFT Color LCD with White LED Backlight
- Resolution & Colors: 320 x 240 pixels (QVGA); 4,096 colors
- Brightness: 600 cd/m²
- Input Voltage: 24V DC
- Power Consumption: 10W or less
- Memory Capacity: 12MB RAM
- Interfaces / Ports: RS-232C, USB Type-B (programming port)
- Expansion Slot: SD / SDHC Memory Card Slot
- Frame Color: Black
- IP Rating: IP67 rated front panel, offering superior dust-proof and drip-proof protection when panel-mounted.
Brand New PANASONIC AIG32TQ02DR Touch Screen. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

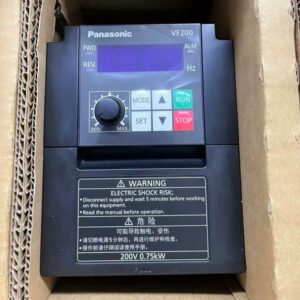

- Motor Capacity: 0.75 kW / 1 HP
- Input Voltage: Single-phase 200V to 230V AC (+10%, -15% variance allowed) at 50/60Hz
- Rated Output Current: 4.2 A
- Output Frequency Range: 0.5Hz to 400Hz
- Control Methods: Sine wave PWM control, V/f control, and simple sensorless vector control
- Communication: RS485 Modbus RTU interface
- Overload Capacity: 150% of rated current for 1 minute
- Built-in Hardware: Features a built-in braking transistor and a digital operation panel capable of parameter uploading/downloading (CPY1 function).
- Nexinstrument: Available as a brand new item with an estimated 1-10 working day shipping time.
- Inosaki: Stocking new condition compact inverters.
Brand New PANASONIC AVF200-0072 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Series: VF200 Series (Simple Vector Inverter)
- Applicable Motor Capacity: 0.75 kW (approx. 1 HP)
- Input Voltage: Three-phase AC 380V to 460V (50/60Hz)
- Output Current: 2.1 A
- Output Capacity: 1.7 kVA
- Net Weight: 1.6 Kg (Shipping weight: ~3 Kg)
Brand New PANASONIC AVF200-0074 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

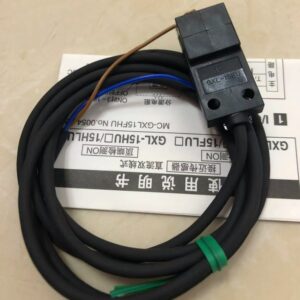

- Sensing Type: Inductive Proximity
- Sensing Distance: 0 mm to 4.0 mm
- Standard Target: Iron Sheet
- Supply Voltage: 12 to 24 V DC
- Output Type: Non-contact DC 2-wire
- Max Load Current: 3 to 100 mA
- Residual Voltage: 3 V or less
- Response Frequency: 1 kHz (1000 Hz)
- Repeatability: < 0.04 mm
- Indicators: Red LED
Brand New PANASONIC GXL-15FUB Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Operating Voltage: 100 to 240 V AC (50/60 Hz)
- Output Type: Relay output, SPDT (1 Form C)
- Contact Rating: 5A @ 250V AC (Resistive load)
- Terminal Type: Screw terminals
- Time Range: Multi-range spanning from 0.001 seconds up to 999.9 hours (Selectable via DIP switches)
- Operating Modes: 8 selectable timing modes (including Power On delay, Signal On/Off delay, Flicker, and Pulse One-shot)
- Display: 7-segment, 2-color backlit LCD (Elapsed value shows in red, setting value shows in yellow)
- Size & Protection: DIN 48 x 48 mm front panel with an IP66 weather-resistant rating
- All Models Are Compliant with: UL, cUL, CE. 2 Color Back light LCD with selectable time range from 9.999 Sec to 999.9 hr. and 8 di…
Brand New PANASONIC LT4H-AC240VS Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Rated Output Power: 750 W (0.75 kW)
- Input Voltage: 200 V AC (Three-phase or single-phase depending on the companion driver)
- Rotational Speed: 3,000 r/min (Rated) / 6,000 r/min (Maximum)
- Torque Performance: 2.39 Nm (Rated)
- Current Ratings: 3.8 A (Rated) / 18.8 A (Maximum)
- Rotary Encoder: 23-bit absolute format (providing high-resolution feedback of 8,388,608 pulses per revolution).
- Flange Dimension: 80 mm square
- Protection Rating: IP65 dust and water resistance
- MHM: High-inertia motor type
- Basic Type Driver: MCDLN35SE
Brand New PANASONIC MHMF082L1V2M Servo Motor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Rated Output Power: 1000 W (1.0 kW)
- Voltage Specification: 200 VAC
- Rated Current: 5.7 A rms
- Rated Torque: 3.18 N·m
- Rated Speed: 3000 rpm
- Rotor Inertia: 2.13 × 10⁻⁴ kg⋅m² (High Inertia)
- Encoder Resolution: 23-bit Absolute
- Holding Brake: Equipped (with brake)
- Oil Seal: Equipped
- IP Rating: IP65 / IP67 (varies by connector variant)
Brand New PANASONIC MHMF092L1V2M Servo Motor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Rated Output Power: 100 W (0.1 kW)
- Input Voltage: 200 VAC
- Rated Speed: 3000 r/min (Max speed of 6000 r/min)
- Rated Torque: 0.32 Nm (Peak stall/max current is 4.7 A)
- Rated Current: 1.1 A
- Rotary Encoder: 23-bit Absolute format (8,388,608 pulses per revolution, 7-wire system)
- Enclosure Rating: IP65 dust and water resistance (Lead-wire type interface)
- MSM: Low inertia rotor type
- Multifunction Type: MADLT05SF
- Basic Type: MADLN05SE
- Motor Specifications: Max. speed: 6000 r/min. Rated speed: 3000 r/min ; Max. speed: 6000 r/min. Rated speed: 3000 r/min. Rated out…
Brand New Panasonic MSMF012L1U2M AC Servo Motor (MINAS A6 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
