Showing 993–1008 of 1357 results
-
REQUEST A QUOTE
Technical Specifications
- Defined Electrical Range (Stroke Length): 150 mm (5.91 in).
- Measurement Method: Passive, absolute potentiometric.
- Resolution: Better than 0.01 mm.
- Operating Voltage: Up to 42 V maximum.
- Protection Class: IP65 standard (dust-tight and protected against water jets).
- Mechanical Connection: Dual-beared, rotatable stainless steel actuating rod integrated with backlash-free pivot heads.
- Housing Material: Anodized aluminum.
- Electrical Connection: Typically equipped with standard M12 connector models.
- Lifespan: Up to 50 million movements, depending on the specific application.
- High Immunity to Noise: Because it is a passive absolute measuring system, the sensor is inherently insensitive to external electrical interference or magnetic disturbances.
- Flexible Alignment: The backlash-free pivot head mounting allows for a broad angle of free mechanical movement (up to ±12.5°), eliminating binding or mechanical strain in dynamic applications.
- Outstanding Linearity: Provides precise physical-to-electrical signal scaling across the entire 150 mm operational profile.
Brand New NOVOTECHNIK LWG-0150 Displacement Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Defined Electrical Range: 225 mm
- Electrical Stroke: 228 mm
- Nominal Resistance: 5 kΩ (±20% tolerance)
- Independent Linearity: ±0.07%
- Repeatability: 0.01 mm
- Maximum Voltage: 42 V
- Design Features: Built with a conductive plastic potentiometer mechanism, it features a zero-transverse-force spherical coupling and an IP40 rating. It provides a passive, absolute signal that retains positional data during power failures.
Brand New Novotechnik TLH-0225 Linear Position Transducer (TLH Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Valve Configuration: 2-way normally closed (N.C.)
- Pipe Size / Connection: 3/8" thread
- Orifice / Through-Hole Diameter: 4.5 mm
- Pressure Limits: Minimum differential pressure of 0 bar, maximum inlet pressure up to 40 bar (with a maximum differential pressure of 12 bar).
- Compatible Environments: Water, hot water, steam, air, gasoline/benzine, and various oil products.
- QTY: 1 New FOR ODE Direct-acting diaphragm solenoid valve …
Brand New ODE 21A5KT45-WB25 Solenoid Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Valve Model: 21HT5K0Y160
- Operation Type: Combined Acting
- Port Size: 3/4" G (BSP)
- Orifice Diameter: 16 mm
- Body Material: Brass
- Sealing Material: NBR + PA (Buna-N + Polyamide)
- Temperature Range: -10°C to +90°C
- Max Pressure: 16 bar (approx. 232 PSI)
- Compatible Media: Air, Water, Inert Gas, Fuel Oils
- Coil Series: B51 Bundle Code
Brand New ODE 21H5K0Y160B51 Solenoid Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Valve Function: 2/2 Way, Normally Closed (N.C.)
- Port Size: 3/8" Female BSP / ISO 228/1
- Body Material: Brass (CW617N)
- Flow Coefficient: 2.4 Cv / ~28 l/min Kv
- Pressure Range: 1 to 290 PSI (up to 20 bar)
- Enclosure Rating: IP65 (when used with compatible plug)
Brand New ODE 21H7KV120B25 Solenoid Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Port Connection: 1/2" G thread (DN15).
- Body Material: Robust brass.
- Seal Material: Viton / FKM (Fluoroelastomer), denoted by the "V" in the model number.
- Temperature Range: Operates from -10°C to +140°C.
- Working Pressure: Broad range from 0.2 bar up to 20 bar.
- Orifice Size & Flow (Kv): 12 mm nominal diameter with a flow capacity of approximately 32 l/min.
Brand New ODE 21H8KV120B25 Solenoid Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Valve Function: 2/2 Way, Normally Closed (NC)
- Actuation Type: Indirect Acting (Pilot Operated)
- Port Size: 3/4" Threaded (BSP / G)
- Body Material: Brass (UNI EN 12165 CW617N)
- Seal Material: FKM / Viton (High thermal resistance)
- Pressure Range: 1 to 232 PSI (approx. 0.07 to 16 Bar)
- Fluid Temperature: -10°C to +140°C
- Compatible Media: Optimized for a broad range of fluids including air, water, steam, inert gases, diesel, gasoline, and mineral oils.
- Internal Construction: Built with an AISI 300 series stainless steel armature tube and an AISI 400 series stainless steel plunger and spring for excellent corrosive resistance.
- Environmental Protection: Features an IP65 protection rating when fully fitted with its specialized electric plug connector.
Brand New ODE 21H9KV180 Solenoid Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Type/Structure: 2/2 Way, Normally Closed (remains closed until electrically energized), pilot-operated.
- Port Size: 3/8" G (Gas threaded) or 1/2" depending on specific regional manifold variations.
- Body Material: Brass.
- Common Media: Hot water coils, gases, and air.
- Compatible Voltages: Available configured with various coils including 110V AC, 24V, or 230V.
Brand New ODE 21WA3K0V130 Solenoid Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Function: 3-Way, 2-Position (3/2 WAY), Normally Open (N.O.)
- Operating Pressure: 0 to 16.0 bar
- Orifice Size (DN): 2.0 mm
- Coil Voltage Options: Available in AC 220V/230V (50/60 Hz, 14.5VA, 100% ED duty cycle) or DC 24V variants
- Material Construction: Durable, corrosion-resistant stainless steel body
- Mounting Style: Flanged subplate mounting interface with a fixing screw
- Net Weight: ~250g to 290g
Brand New ODE 5578FV20-Z Subplate Solenoid Valve (5578 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Function & Type: Independent Electromagnetic Clutch Unit
- Maximum Operating Rotational Speed: 3,600 RPM
- Operating Condition: Dry environment only
- Motive Energy: General purpose / standard application environments
- Packaged Design: Pre-engineered assembly minimizes installation alignment errors and simplifies mounting.
- Fast Response Time: Built specifically for quick engagement and disengagement cycles.
- Precision Control: Typically utilized in standard packaging machinery, office equipment, paper feeding mechanisms, and small conveyor lines where compact torque control is necessary.
Brand New OGURA AMP 10 Electromagnetic Clutch Pack (AMP Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

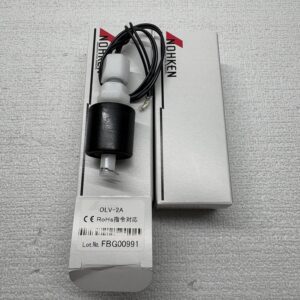

- Manufacturer: Nohken Inc.
- Model Type: OLV-2A (OL Type Small Level Sensor)
- Switching Ratings: Max. 50 VA AC / 50 W DC; Max. 250V AC / 200V DC; Max. 0.5 A AC / DC
- Operating Limits: Specific gravity ≥ 0.70; Max pressure 0.5 MPa; Temp. range -10°C to +90°C; Viscosity 0.5 Pa·s Max; Vibration 100 m/s² Max
- Materials & Wiring: Float: Polypropylene (PP); Stem/Clip: Stainless Steel; Multi-core twin flying lead wires
- Target Application: Optimized for water applications, small tanks, automatic water boilers, and machine equipment.
- Reversible Operation: Easily alternates between Normally Open (NO) and Normally Closed (NC) by flipping the float. Additional detailed dimensions and complete operational data can be found in the official documentation.
Brand New Nohken OLV-2A Float Level Switch (OLV Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE

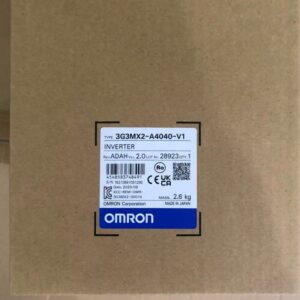

- Series: MX2 Series (V1 Type)
- Input Voltage: 3-phase 380 to 480 VAC
- Output Voltage: 3-phase 380 to 480 VAC (Output cannot exceed incoming voltage)
- Load Wattage: 4.0 kW (5 HP)
- Rated Input Current: 11.0 A (CT) / 13.3 A (VT)
- Dimensions: 140 mm Width × 128 mm Height × 170.5 mm Depth
- Operating Temperature: -10°C to 50°C
- Mounting Type: Chassis Mount
- Control Modes: Current vector control and sensorless vector control.
- High Torque: Provides up to 200% starting torque at 0.5 Hz.
Brand New OMRON 3G3MX2-A4040-V1 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Voltage Class: 3-Phase 400 V AC (400V Class)
- Max Applicable Motor Capacity: 11 kW (Constant Torque rating)
- Enclosure Rating: Panel-mounting (IP10 minimum) or closed wall-mounting
- Control Methods: Current vector control, open-loop V/f control, and open-loop vector control
- Weight: 4.7 Kg (Shipping weight approx. 7 Kg)
- High Starting Torque: Delivers reliable power control and strong torque even at low speeds, which is highly beneficial for heavy-duty startup loads.
- Advanced Automation Logic: Built with advanced algorithms to seamlessly handle engine control, simple positioning tasks, pulse inputs, and specialized operating profiles like a safety-driven "fire mode" for building automation environments.
Brand New OMRON 3G3MX2-A4110-ZV1 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Module Type: CJ-Series PLC Expansion/Rack Module
- Control Loops: 2 Independent Loops (with Heater Burnout Detection)
- Input Channels: 4 Inputs (Resistance Thermometer / RTD: Pt100 / JPt100)
- Output Channels: 4 Outputs (Solid State Relay / SSR Drive / PNP Open Collector Voltage Pulse)
- Indication Accuracy: ± 0.3% of Process Value (PV) ± 0.8°C to 1°C
- Operating Voltages: 5 VDC (via CJ1 Backplane Bus) | 24 VDC external output drive
- Current Consumption: 0.25 A max at 5 VDC
- Connection Style: Industrial Screw Terminal Block (Removable for easy maintenance)
- Mounting: DIN Rail / CJ-Series Backplane Rack
- Autonomous Architecture: The module executes localized temperature adjustments utilizing internal PID loops independent of the main PLC CPU execution cycle. This minimizes the processor overhead of the host controller.
Brand New OMRON CJ1W-TC104 PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensor Type: Optical Fiber Amplifier (Photoelectric)
- Supply Voltage: 12 to 24 VDC ±10% (Ripple 10% max)
- Control Output: PNP Open Collector (50 mA max load current)
- Operation Mode: Light-ON / Dark-ON (Switchable via onboard toggle)
- Light Source: Red 4-element LED (λ = 624 nm / 625 nm)
- Response Time: 200 μs max (Fast detection speed)
- Switching Frequency: 2500 Hz
- Connection Method: Pre-leaded 2-meter, 3-wire PVC cable
- Mounting Type: DIN Rail mountable
- Ingress Protection: IP50
Brand New OMRON E3X-NA41 Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Form Factor: 1/32 DIN panel mount (48 x 24 mm)
- Control Output: Voltage output (12 VDC) designed specifically for driving an external Solid State Relay (SSR)
- Sensor Input: Thermocouple multi-range (supports standard types like K, J, T, R, S)
- Auxiliary Outputs: Features one alarm relay output
- Direct Historical Replacement: Omron originally succeeded this unit with the E5GN-Q1T.
- Modern Alternative: In contemporary automated systems, Omron recommends transitioning to the newer E5CC Series (1/16 DIN) or the ultra-compact E5GC Series, such as the E5GC-QX1A6M-000 or E5GC-QX1D6M-000.
- Merchant: Title / Variant
- KOEED: 1PCS Omron Thermostat E5GN-Q1TC
- MRO Global Solutions: OMRON E5GN-Q1TC NSNP
- Well Gain Electronics: OMRON E5GN-Q1TC-AC100/240V
Brand New OMRON E5GN-Q1TC Temperature Controller. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
