- Part Numbers: 400508-00062, 40050800062
- Interchange / Cross-References: 400508-00110, 400508-0062, HIFI SN25153
- Outer Diameter: 110 mm (~4.33 inches)
- Height: 145 mm (~5.71 inches)
- Material: High-efficiency filter paper with a robust steel housing
- Weight: Approximately 5 lbs (~2.27 kg)
- Equipment Type: Compatible Models
- Doosan Excavators: DX140 LC-5, DX150, DX160 W-5, DX215, DX225 LC-5, DX255 LC-5, DX260-9C, DX300 LC-5, DX340 LC-3, DX420 LC-5, DX530 LC-5 (and variants)
- Doosan Wheel Loaders: DL200, DL200-3, DL250-5, DL300-5, DL420-5
- Cranes & Specialty: Demag AC 250-5 Crane, ACX 23 RR Crane, Lefort Scrap Shear

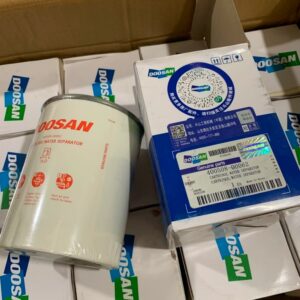

Brand New DOOSAN 400508-00062 Filter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Voltage Input Range: 208 to 480 V AC (covers 3-phase mains systems from 177 V AC up to 552 V AC with a ±15% tolerance).
- Output Configuration: 1 Single Pole Double Throw (SPDT) relay, normally energized.
- Current Contact Rating: 5 Amps switching maximum.
- Frequency Range: 50 to 60 Hz.
- Housing Profile: 17.5 mm ultra-compact width for space-saving DIN-rail mounting.
- Safety & Certifications: UL, CSA, and CE compliant.
- Phase Sequence Protection: Prevents three-phase motors from starting or running in the reverse rotation, which can quickly cause catastrophic mechanical failures in HVAC compressors, industrial conveyors, and pumps.
- Phase Loss Monitoring: Automatically disconnects the load if any individual phase drops out, avoiding motor overheating and rapid torque reduction.
- Regenerated Voltage Detection: Safely triggers a fault response even if a failing motor attempts to reconstruct a missing phase voltage up to 85% of the nominal grid value.
- Plug-and-Play System: Operates on an automatic setup profile requiring no manual setting adjustments or external calibration. Dual LED bulbs give instant visual diagnostics for "Power Supply On" and "Relay Status".
- Logistics Note: The suffix variation "B014" is a specific packaging or manufacturing batch suffix often designated on units distributed directly from factory assembly facilities in Europe and Asia. It remains fundamentally interchangeable with the standard catalog identifier DPA51CM44.

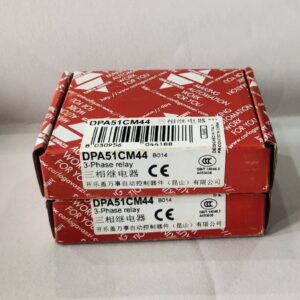

Brand New CARLO GAVAZZI DPA51CM44B014 Phase Monitoring Relay (DPA51 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Function: 3-phase monitoring relay (phase sequence, total and partial phase loss)
- Supply / Measuring Voltage: 208 to 480 VAC (±15%)
- Output: Relay output
- Series: Carlo Gavazzi DPA51CM44
- Application: Protection of electrical systems and motors

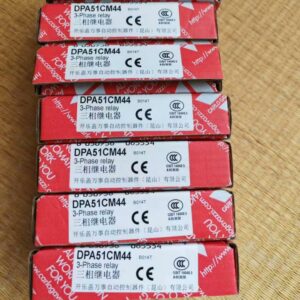

Brand New CARLO GAVAZZI DPA51CM44B014T Phase Monitoring Relay (DPA51 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Dräger Medical (Draeger Inc.)
- Part Number (MPN): 8403735 (Also alternates with 6871980)
- Sensor Type: Spirolog / Spiroquant A+
- Measurement Technology: Hot-wire anemometer (measures cooling effect of gas across a heated wire)
- Material: Acrylonitrile Butadiene Styrene (ABS)
- Reusability: Autoclavable, disinfectable, and reusable
- Operating Range: 0 to 100% flow; 15°C to 40°C operational temperature
- Standard Packaging: Typically sold in boxes/packs of 5 units
- Anesthesia Systems: Dräger Primus, Fabius GS, Julian, Cato, Cicero, and Sulla.
- Intensive Care Ventilators: Evita Family (including Evita 4, Evita XL) and Savina / Savina 300 series.
Brand New DRAGER 8403735 Flow Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Mode: Polarized Retroreflective
- Output Type: Complementary PNP (Light-ON & Dark-ON options)
- Response Time: 2 milliseconds (ms)
- Operating Temperature: -20°C to +70°C (-4°F to +158°F)
- Standard Cable: Pre-wired 2-meter (6.5 ft) cable with flying leads
Brand New BANNER DS18VP6LP Polarized Retroreflective Sensor (DS18 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Approximate Weight: 1.85–2.2 kg
- Environmental Protection: Features high dust and waterproof ratings equivalent to an IP65 classification.
- Contamination Tolerance: The wet-type solenoid allows the core moving components to be continuously lubricated by system hydraulic oil, which cushions impact and provides strong resistance against fluid contamination.
- Fluid Compatibility: Designed standard with Buna-N (NBR) seals, compatible with typical petroleum-based industrial hydraulic oils, water-glycols, and water-in-oil emulsions.

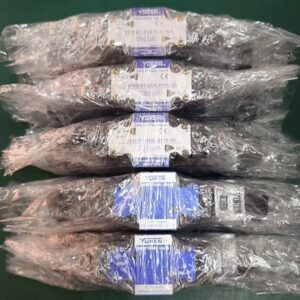

Brand New YUKEN DSG-01-3C4-A110-50 Solenoid Directional Control Valve (DSG-01 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Application Media: Natural gas, propane, butane, air, and inert gases.
- Pressure Setting Range: 5 to 150 mbar (Adjustable via an integrated scaling wheel).
- Switch Type & Electrical Rating: SPDT (Single Pole Double Throw) | 6A @ 250Vac.
- Protection Class: IP54 (Dust and splash water protection).
- Temperature Limits: Ambient temperature from -15 °C to +70 °C.
- Enclosure Material: Sturdy die-cast aluminum housing with an O-ring flange connection.
- Power-Free Operation: Works as a mechanical single-acting over-pressure switch, meaning it functions without requiring an external auxiliary power supply.
- Fast Response Time: Features short response times during rapid, short-term pressure fluctuations to ensure system safety.
- Direct Component Mounting: Built specifically to be mounted either directly onto the housing of DUNGS GasMultiBloc and DMV double solenoid valves, or by using a direct adapter.
Brand New DUNGS GW150A5 Compact Gas Pressure Switch (GW Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Maximum Inlet Pressure: 360 mbar (36 kPa / 5.22 PSI) max operating pressure.
- Outlet Pressure Range: 4 mbar to 20 mbar (0.4 kPa to 2 kPa) adjustable output.
- Connection Size: Rp 3/4 threaded internal diameter inlet/outlet flanges.
- Main Valve Features: Integrated manual main volume restrictor and bypass valve.
- Electrical Standard: Configurable variants typically running at 230 VAC (50-60 Hz) or 110 VAC.
- Enclosure Rating: IP54 dust and splash protection.
- Operating Temperatures: -15°C to +70°C (5°F to 158°F).
- Approvals: Certified under European standards EN 161 (Class A, Group 2 automatic shut-off valves) and EN 88 (pressure regulators).
- Pressure Switch Combinations: Pre-assembled packages with safety cut-out switches can be acquired through Comtherm with Pressure Switch (GW150/GW50).
Brand New DUNGS MB-DLE407B01S20 Solenoid Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Part Number (MRN): 226799
- Outlet Pressure Range: 4 – 20 mbar (0.4 – 2.0 kPa)
- Nominal Diameter: DN 40 (Connection size flange dependent)
- Coil Voltage Supply: 230 VAC (50–60 Hz) [110 VAC variants available]
- Power Consumption: 60 VA
- Protection Class: IP54
- Ambient Temperature: -15 °C to +60 °C (Up to +70 °C variant-dependent)
- Closing / Opening Time: Closing: < 1 second / Opening: < 20 seconds
- Default Pressure Switch: GW 50 A5 or GW 150 A5 (depends on standard kit)
- Unit Net Weight: 6.6 kg (14.5 lbs)
Brand New DUNGS MB-DLE415B01S20 Solenoid Valve. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Feature / Attribute: Technical Specification
- Manufacturer: Karl Dungs GmbH & Co. KG
- Model / Part Number: SAD1.2 / 229813
- Power Supply: 24 VDC
- Power Consumption: 7 W
- Torque Rating: 1.2 Nm (Newton-meters)
- Ingress Protection: IP40 (Note: Beware of generic web listings claiming IP65, which often mistake industrial burner servos for standard CNC motors)
- Primary Material: Durable, lightweight engineered composite housing
- Air/Fuel Ratio Control: It drives the mechanical positioning of valves to control precisely how much gas, oil, or air enters the burner system.
- Modulation: Unlike basic open/close solenoid valves, the stepper design allows for incremental adjustments to adapt to shifting load demands.
Brand New DUNGS SAD1.2 Servo Motor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input: 1-Channel Digital Memosens Hot plug-and-play configuration with pre-calibrated digital sensors.
- Output: 2 x 0/4 to 20 mA Current Loops Primary output for main value; Second output dedicated to temperature.
- Relays: 2 x Contacts Serves as limit contactors or alarm switches.
- Display: Two-line backlight LCD Visualizes measured values, sensor status, and error states.
- Dimensions: 48 x 96 x 152 mm Compact build matching common DIN cabinet cut-outs.
- Ingress Protection: Front: IP65 / NEMA 4X; Body: IP20 Provides high splash resistance when panel-mounted.
- Housing Material: Polycarbonate Polyester front membrane.
- Memosens Technology Integration: True galvanic isolation from the sensor prevents ground loops and electrical interference.
- Laboratory Calibration: Digital integration allows you to calibrate sensors in a lab environment and swap them hot in the field, reducing downtime.
- Safety Hold: Built-in manually or automatically triggered freeze function (Setup → Manual hold) ensures system parameters remain safe during field calibration loops.
- Official Product Page: Read through features on the Endress+Hauser Liquiline CM14 Product Hub.
- Complete Technical Information (PDF): For structural diagrams, loop diagnostics, and wiring instructions, refer to the Endress+Hauser Portal Document Index.
- Third-Party Archive: Alternatively, access indexed technical sheets directly via the Alldatasheet Archive for CM14.
Brand New E+H CM14-AAM CM14-1020/0 Compact Panel Transmitter (Liquiline CM14 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Code Segment: Parameter Feature
- Operating Distance: Measures up to 10 m (33 ft) in liquids and up to 5 m (16 ft) in coarse bulk solids under standard conditions.
- System Accuracy: Measuring tolerance is rated within ± 4 mm (± 0.16 in) or ± 0.2% of the designated span range.
- Temperature Matrix: The integrated PVDF sensor body handles process environments between -40 °C and 80 °C (-40 °F to 176 °F).
- Pressure Threshold: Optimized for low-pressure systems operating from 0.7 bar up to a maximum overpressure limit of 2.5 bar absolute (10 psi to 36 psi).
- Software Capabilities: Features EchoFOX dynamic signal mapping to automatically filter out false echo disruptions caused by internal tank obstructions or agitators. Includes a 32-point linearisation calculation table to convert levels directly into volume or open-channel flow rates.
- Physical Logistics: The sensor unit features a net device weight of approximately 3 kg (6.62 lbs) and a total boxed shipping package weight of 4 kg to 6 kg.
Brand New E+H FMU42-APB2A22A Level Instrument. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Rated Power Output: 7.5 kW (Equivalent to approximately 10 HP)
- Input Voltage: 3-Phase 380V – 460V AC, 50/60 Hz
- Maximum Current: 17 A
- Enclosure Size: Frame E5
- Physical Dimensions: 156 mm (W) x 265 mm (H) x 170 mm (D)
- Braking Resistor Spec: 75 Ohm / 500W external resistor required for dynamic braking
- Control Method Options: Supports V/Hz (Scalar), Sensorless Vector Control (SVC), Closed-Loop Vector Control (CLV), and Permanent Magnet Motor (PMM) control.
- Built-in Automation: Includes integrated PID controller routines optimized for pump, fan, and pressure-constant piping operations.
- Communication Interface: Modbus RTU / RS485 built-in, with expanding modular support for other standard fieldbus systems.
- Input / Output Flexibility: Features dual high-resolution analog inputs along with freely mappable digital I/O channels.
Brand New EURA E2000-0075T3 Variable Frequency Drive (E2000 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Voltage: 24V DC
- Power Consumption: 26W to 29W
- Connector Type: ISO 4400 DIN 43650-A
- Duty Rating: Continuous duty (85% to 110% of nominal voltage)
- Inner Diameter (ID): 18 mm
- Length: 46.5 mm
- Encapsulation & Protection: Glass-filled nylon; IP65 weather-proof rating
- Valve Size Compatibility: Fits H-Series cartridge sizes 10, 12, 16, and 20 (up to 350 Bar)
- Common Applications: Agricultural harvesters, refuse haulers, excavators, loaders, and tractors

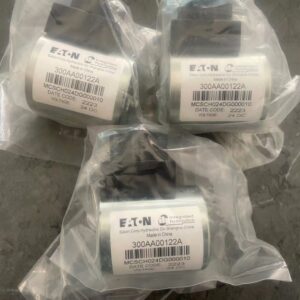

Brand New EATON 300AA00122A 24VDC Solenoid Coil. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Catalog Number / SKU: 219655
- Model Code: CI-K2-PKZ0-GR
- EAN / GTIN: 4015082196554
- Net Weight: 0.415 kg (0.91 lbs)
- Ingress Protection: IP65 (Dust-tight, water jet resistant)
- Max Heat Dissipation: 12.5 W
- Housing Material: Plastic
- Standards & Compliance: CE, EN 60204
- Core Devices: Houses one PKZ0 or PKZM0 motor protective circuit breaker.
- Supported Add-ons: Accommodates the circuit breaker equipped with up to 2 units of early-make auxiliary contacts (L-PKZ0), standard auxiliary contacts (NHI or AGM), and trip releases (U or A).
Brand New EATON CI-K2-PKZ0-GR Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Eaton (Moeller Series)
- Part / Catalog Number: ESR5-NO-31-24VAC-DC / 118702
- UPC / EAN: 786689005931 / 4015081168422
- Device Function: Dual-channel monitoring for Emergency Stop / Protective Guard Doors
- Coil / Supply Voltage: 24 VAC (50/60 Hz) or 24 VDC
- Contact Configuration: 3 Normally Open (NO) enabling paths / 1 Normally Closed (NC) signaling path
- Current Rating: 6 A
- Enclosure / Terminal Type: IP20 rating / M3 Screw Terminals
- Mounting: Standard 35 mm DIN Rail Mount
- Weight: 0.164 kg (0.5 lbs)
Brand New EATON ESR5-NO-31-24VAC-DC Safety Relay. In stock — ships worldwide within 5-10 days.
