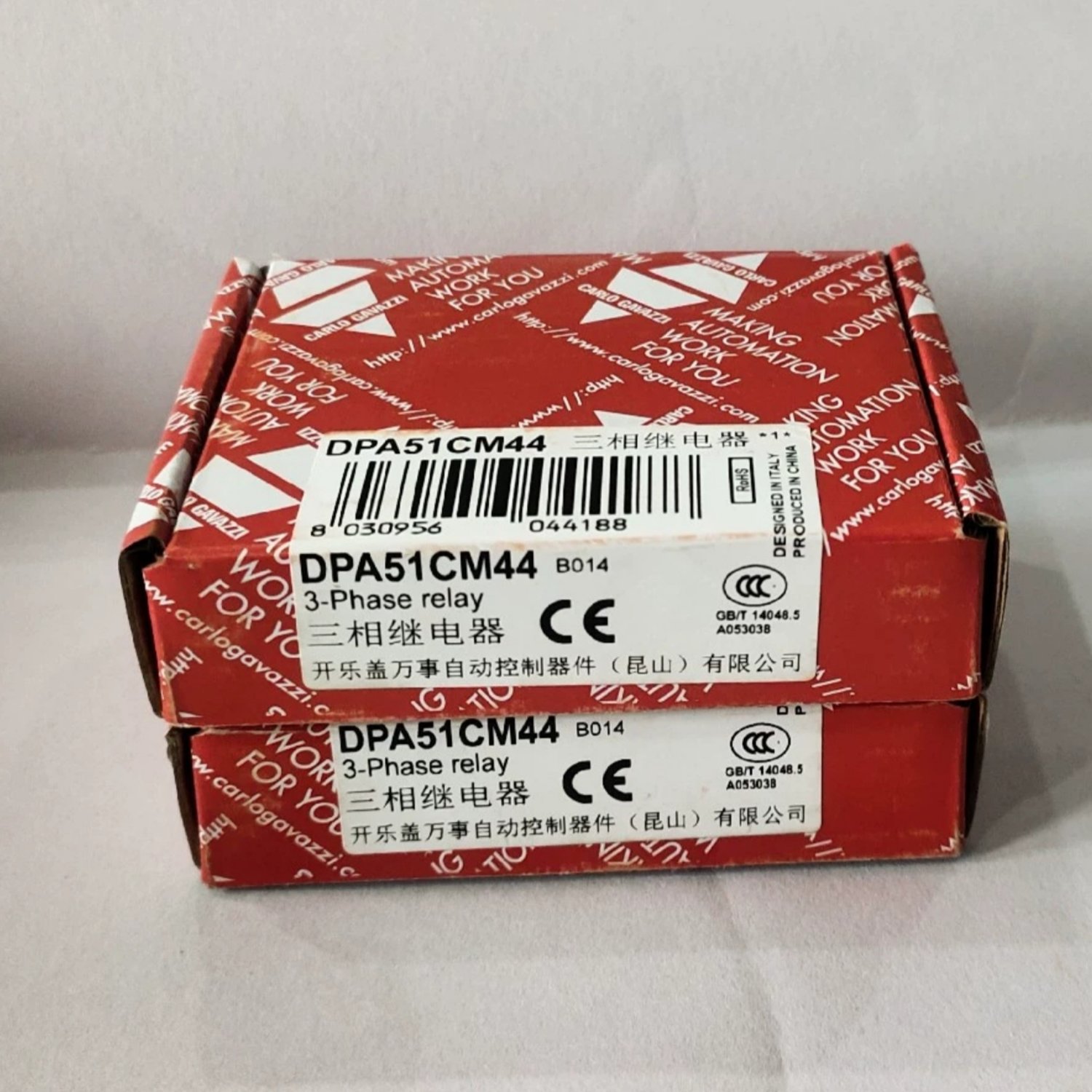

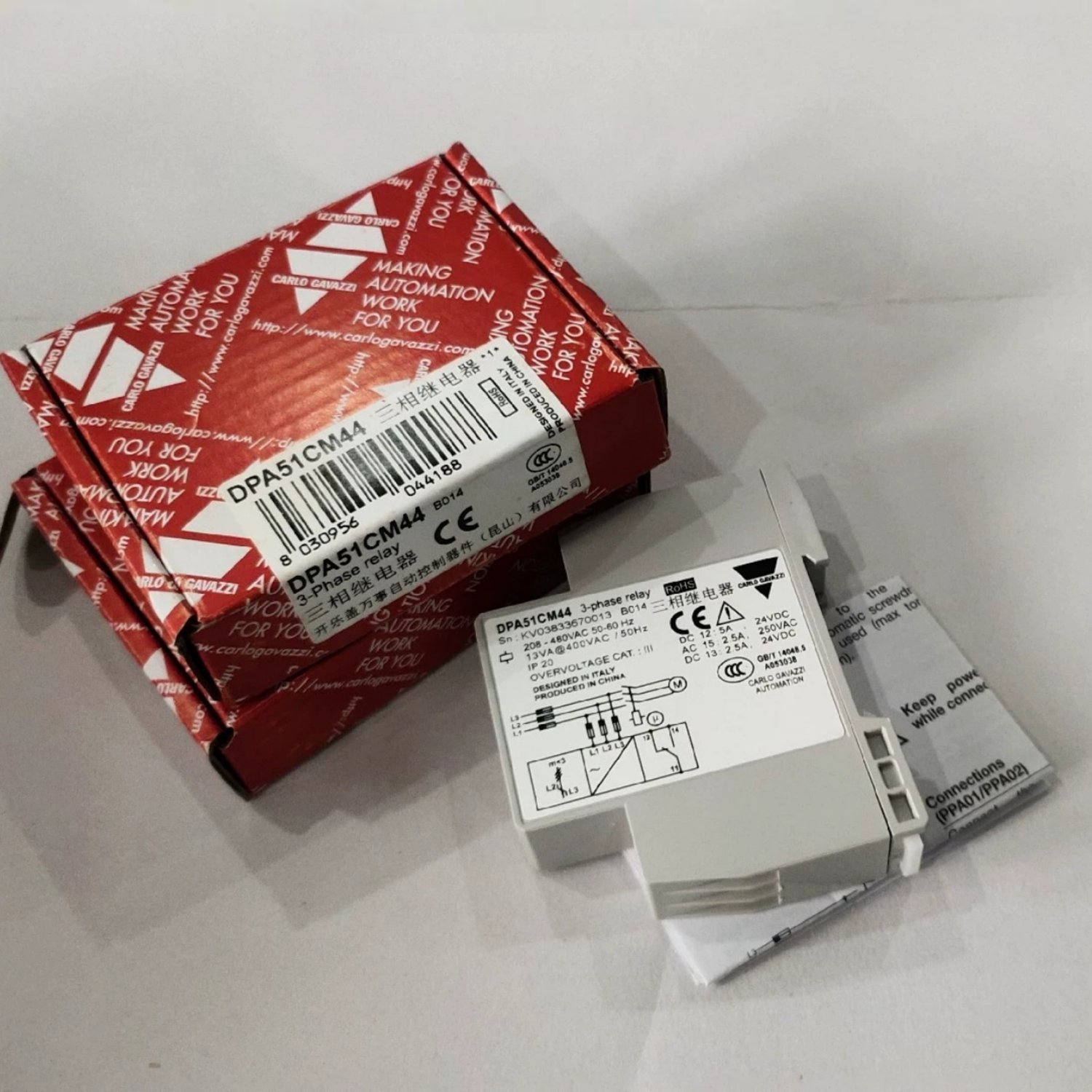

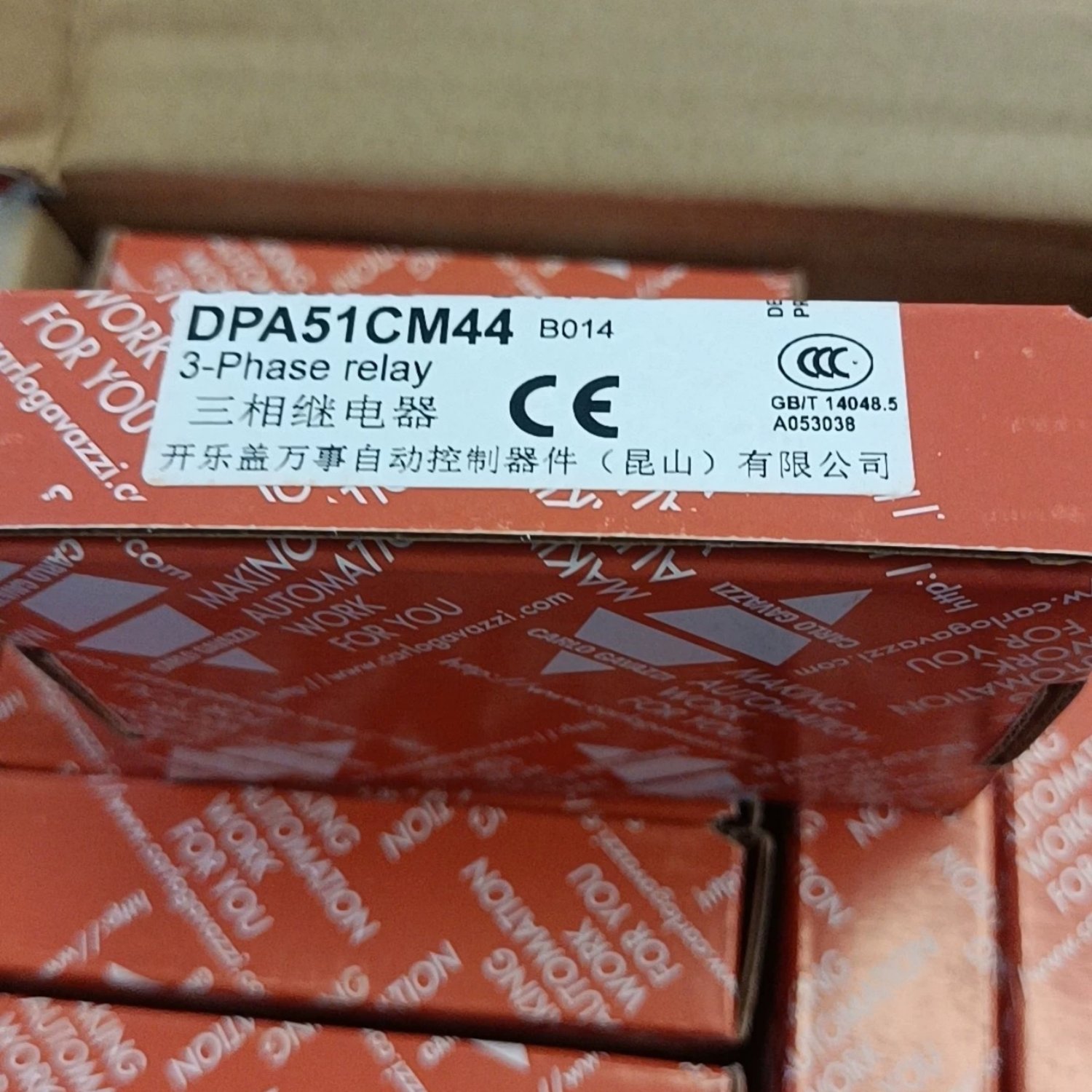

DPA51CM44B014 CARLO GAVAZZI Phase Monitoring Relay

• Voltage Input Range: 208 to 480 V AC (covers 3-phase mains systems from 177 V AC up to 552 V AC with a ±15% tolerance).
• Output Configuration: 1 Single Pole Double Throw (SPDT) relay, normally energized.
• Current Contact Rating: 5 Amps switching maximum.
• Frequency Range: 50 to 60 Hz.
• Housing Profile: 17.5 mm ultra-compact width for space-saving DIN-rail mounting.
• Safety & Certifications: UL, CSA, and CE compliant.
• Phase Sequence Protection: Prevents three-phase motors from starting or running in the reverse rotation, which can quickly cause catastrophic mechanical failures in HVAC compressors, industrial conveyors, and pumps.
• Phase Loss Monitoring: Automatically disconnects the load if any individual phase drops out, avoiding motor overheating and rapid torque reduction.
• Regenerated Voltage Detection: Safely triggers a fault response even if a failing motor attempts to reconstruct a missing phase voltage up to 85% of the nominal grid value.
• Plug-and-Play System: Operates on an automatic setup profile requiring no manual setting adjustments or external calibration. Dual LED bulbs give instant visual diagnostics for "Power Supply On" and "Relay Status".
• Logistics Note: The suffix variation "B014" is a specific packaging or manufacturing batch suffix often designated on units distributed directly from factory assembly facilities in Europe and Asia. It remains fundamentally interchangeable with the standard catalog identifier DPA51CM44.

Brand New CARLO GAVAZZI DPA51CM44B014 Phase Monitoring Relay (DPA51 Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
