Showing 305–320 of 1357 results
-
REQUEST A QUOTE
- Manufacturer: BECKHOFF
- Model / Part Number: EK1110
- Function: Conversion of E-bus signals to 100BASE-TX Ethernet NEX Instrument Inc
- Data Transfer Rate: 100 Mbps PLC Parts Solution
- Bus Interface: 1 × RJ45 socket Beckhoff USA
- Power Supply: Directly from the E-bus (No external power needed) Beckhoff USA
- Current Consumption: Approx. 130 mA from E-bus PLC Parts Solution
- Electrical Isolation: 500 V (supply voltage / Ethernet) NEX Instrument Inc
- Configuration: None required (No parameterization necessary) Beckhoff USA
- Protection Rating: IP20 PLC Parts Solution
- Mounting: 35 mm DIN rail (conforming to EN 60715) NEX Instrument Inc
- Approvals / Markings: CE, UL, ATEX (Ex marking: II 3 G Ex nA IIC T4 Gc) NEX Instrument Inc
-
REQUEST A QUOTE
- Manufacturer: BECKHOFF
- Model / Part Number: EK1122
- Task within System: Coupling of EtherCAT junctions
- Data Transfer Rate: 100 Mbit/s (100BASE-TX)
- Connection Technology: 2 x RJ45 sockets
- Data Transfer Medium: Ethernet/EtherCAT cable (min. Cat. 5), shielded
- Distance Between Stations: Up to 100 meters
- Network Latency / Delay: Approx. 1 microsecond (µs)
- Topology Support: Star topology, modular star hubs (by combining multiple units)
- Hot Connect Support: Yes (coupling/uncoupling segments during system operation)
- Protocol: EtherCAT
- Status Indicators: Run LED, Link/Activity LEDs on RJ45 ports
- Approvals: CE, UL
-
REQUEST A QUOTE
- Manufacturer: BECKHOFF
- Model / Part Number: EK1501
- Data Transfer Rate: 100 Mbit/s (Full Duplex)
- Delay (Latency): Approx. 1 µs
- Power Supply: 24 V DC (-15 % / +20 %)
- E-Bus Current Supply: Max. 5 V DC / 2,000 mA
- Power Contacts: Max. 24 V DC / Max. 10 A
- Electrical Isolation: 500 V (power contact / supply voltage / Ethernet)
- Operating Temperature: -25 °C to +60 °C
- Protection Rating: IP20
-
REQUEST A QUOTE
- Manufacturer: BECKHOFF
- Model / Part Number: EK1828
- Integrated Inputs: 4 x 24 V DC, Filter 3.0 ms, Type 1/3
- Integrated Outputs: 8 x 24 V DC, 0.5 A max per channel (short-circuit proof)
- Bus Interface: 2 x RJ45 sockets (100 Mbit/s Fast Ethernet)
- E-Bus Current Supply: 1000 mA (5 V DC max)
- Wiring Technology: 1-wire system using direct plug-in push-in technique
- E-Bus Power Budget: The coupler provides up to 1000 mA to downstream EtherCAT modules. If your connected slice terminals exceed this limit, an external power feed terminal like the Beckhoff EL9410 must be added.
-
- Manufacturer: Beckhoff
- Model / Part Number: EL3201
- Product type: EL3201 EtherCAT Terminal, 1-channel analog input terminal for temperature measurement with RTD (Pt100), 16 bit
- Number of inputs: 1
- Sensor type: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 ohm to 4 kohm), KTY sensors (types per documentation)
- Connection technology: 2-, 3-, 4-wire (default: 2-wire); 2-wire connection requires an external bridge
- Conversion time: Approx. 24 ms default setting, 4…500 ms configurable
- Temperature range: -200…+850 deg C (Pt sensors); -60…+250 deg C (Ni sensors)
- Resolution: 0.1 deg C per digit; 1 x 32 bit RTD input in the process image; input filter cut-off frequency typ. 1 kHz
- Electrical isolation: 500 V (E-bus/signal voltage)
- Current consumption E-bus: Typ. 190 mA; power supply via the E-bus
- Special features: Integrated digital filter, limit value monitoring, variable connection technology; resistance value can be output directly in ohms or converted to temperature in the terminal
- Weight / dimensions: Approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D); polycarbonate compact terminal housing with signal LEDs
- Operating conditions: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20; vibration/shock per EN 60068-2-6/EN 60068-2-27; EMC per EN 61000-6-2/EN 61000-6-4
- Approvals/markings: CE, CCC, UL, ATEX, IECEx, cFMus; Ex marking ATEX/IECEx II 3G Ex ec IIC T4 Gc; cFMus Class I, Division 2, Groups A, B, C, D
- Product status: Regular delivery (active product; ordering variant ES3201 with pluggable wiring level also available)
-

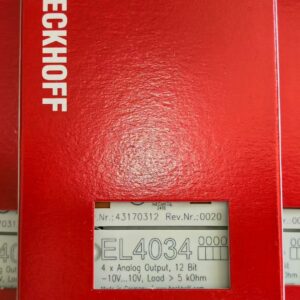

- Manufacturer: Beckhoff
- Model / Part Number: EL4034
- Product type: EL4034 EtherCAT Terminal, 4-channel analog output terminal, voltage, +-10 V, 12 bit
- Number of outputs: 4
- Signal voltage: -10…+10 V, supplied to the process level with a resolution of 12 bits; output channels share a common ground potential
- Load: > 5 kohm (short-circuit proof)
- Conversion time: Approx. 250 us
- Distributed clocks: Yes (distributed clock support with user synchronization that can be activated)
- Power supply: 24 V DC via power contacts (typ. 40 mA); E-bus current consumption typ. 140 mA; output stages powered by the 24 V supply
- Electrical isolation: 500 V (E-bus/signal voltage)
- Bit width in the process image: 4 x 16 bit AO output
- Special features: Optional watchdog with user-specific output value and ramp; output state indicated by light emitting diodes
- Weight / dimensions: Approx. 85 g; 12 mm x 100 mm x 68 mm (W x H x D); polycarbonate compact terminal housing with signal LEDs
- Operating conditions: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20; vibration/shock per EN 60068-2-6/EN 60068-2-27; EMC per EN 61000-6-2/EN 61000-6-4
- Approvals/markings: CE, CCC, UL, ATEX, IECEx, DNV, cFMus; Ex marking ATEX/IECEx II 3G Ex ec IIC T4 Gc; cFMus Class I, Division 2, Groups A, B, C, D
- Product status: Regular delivery (active product; ordering variant ES4034 with pluggable wiring level also available)
-

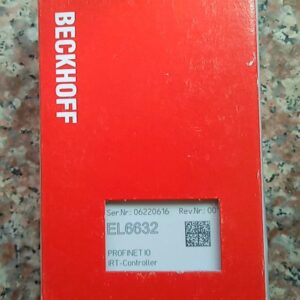

- Manufacturer: Beckhoff
- Model / Part Number: EL6632
- Technology / fieldbus function: PROFINET IRT, controller (master)
- Number of channels / ports: 1 channel; 2 switched ports (3-port switch, 2 x RJ45 external)
- Ethernet interface: 100BASE-TX Ethernet with 2 x RJ45
- Cable length: Up to 100 m twisted pair between devices
- Protocol: RT or IRT, Conformance Class C
- Min. IRT cycle / min. RT cycle: 500 microseconds / 1 ms
-
REQUEST A QUOTE
- Number of Channels: 3-phase voltage and current
- Nominal Voltage Range: Up to 500 V AC
- Extended Max Current: 5 A AC (Standard variant is 1 A)
- Resolution: 16-bit
- Calculation Bandwidth: Cut-off/Limit frequency of 2 kHz
- Measurement Accuracy: 1% to 5% (depending on wave shape curves)
- Calculated Values: RMS Voltage (U), RMS Current (I), Effective Power (P), Apparent Power (S), Reactive Power (Q), Frequency (F), Phase Shift
- Voltage Inputs: Direct wire connection to network phases L1, L2, L3, and Neutral (N).
- Current Inputs: Fed through the secondary windings of external current transformers into terminal points IL1, IL2, IL3, and IN (star point).
Brand New BECKHOFF KL3403-0010 Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Display Type: 7.0-inch TFT LCD touchscreen with a resistive touch overlay.
- Resolution: 800 x 480 pixels (16:9 widescreen format).
- Operating System & Runtime: Powered by Windows Embedded CE 6.0 running the iX runtime environment.
- Memory Capacity: 80 MB of dedicated application storage.
- Power Requirements: +24 VDC input voltage (operating range of 18–32 VDC) with a maximum consumption of 6.0 W.
- Physical Build: Powder-coated aluminum housing measuring 204 x 143 x 52.2 mm and weighing approximately 0.7 kg.
- Runtime Backups: You can backup the compiled project runtime directly from the HMI's hardware service menu without needing the original developer source code. To access this, reboot the HMI and press and hold anywhere on the screen when the hourglass icon appears. This allows you to export the runtime to a USB drive or SD card to facilitate direct replacement on an identical T7A terminal.
Brand New Beijer 630000202 Operator Panel HMI (iX T7A Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Torque: 18 Nm (Motor) / 12 Nm (Spring Fail-Safe)
- Control Type: Open / Close (On/Off)
- Running Time: ~120 seconds (Motor) / ~16 seconds (Spring-return)
- Integrated Signaling: 2x Built-in Auxiliary switches (SPDT) for remote position tracking
- Mechanical Interface: 12×12 mm form-fit square hollow shaft
- Protection Class: IP54
- Variant: Key Characteristic
Brand New BELIMO BF24 Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Torque: 4 Nm motor / 3 Nm spring-return.
- Nominal Voltage: AC 230 V (at 50/60 Hz).
- Power Consumption: 2.6 W during operation and 0.7 W in its rest position.
- Control Type: Open/Close (On/Off).
- Running Time: Motor takes roughly 60 seconds to open; the spring-return functions swiftly during emergencies.
- Integrated Switches: Includes 2x SPDT built-in auxiliary microswitches for remote position signaling.
- Mechanical Interface: Form fit 12×12 mm continuous hollow shaft.
- Protection Class: IP54 rated enclosure protecting against dust and moisture splashes.
Brand New BELIMO BFL230 Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Torque Motor / Spring: 4 Nm / 3 Nm
- Control Type: Open / Close
- Power Consumption: 2 W to 2.5 W (in operation) / 0.7 W to 0.8 W (at rest)
- Mechanical Interface: Form fit 12×12 mm, continuous hollow shaft
- Safety Devices: Often paired with a thermoelectric tripping device (BAT at 72°C or 95°C) depending on the sub-model (e.g., BFL24-T)
Brand New BELIMO BFL24 Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Torque: 4 Nm motor torque / 3 Nm spring-return torque.
- Nominal Voltage: AC/DC 24 V (50/60 Hz).
- Control Type: Open/close operation.
- Running Time: ~60 seconds to open.
- Mechanical Interface: Form-fit 12×12 mm continuous hollow shaft.
- Integrated Switches: 2 x SPDT (Single-Pole Double-Throw) auxiliary switches for position signaling.
- Degree of Protection: IP54 (dust and splash water protection).
- Thermoelectric Tripping Device (BAT): It comes equipped with a thermal sensor set to trip at 72°C. If the ambient or duct temperature hits this threshold, it permanently interrupts the power supply, causing the internal spring to slam the damper shut safely.
- Fail-Safe Function: In normal operation, the electric motor holds the damper open. During a power failure or fire emergency, the mechanical spring energy takes over to completely close the damper and prevent the spread of smoke and fire.
- Service Life: Rated for a minimum of 60,000 safe positions.
Brand New BELIMO BFL24-T Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Nominal Voltage: AC 230 V (50/60 Hz)
- Torque (Motor / Spring): 9 Nm / 7 Nm
- Control Type: Open / Close (On/Off)
- Running Time: ~60 seconds
- Integrated Auxiliary Switches: 2 x SPDT (Single-Pole Double-Throw)
- Protection Rating: IP54 (dust and splashing water protection)
- Mechanical Connection: Form-fit 12×12 mm continuous hollow shaft
- Connection Type: Pre-installed electrical cable
- Wiring & Mounting: Consult the Belimo BFN Installation Instructions to see accurate wiring diagrams for the built-in auxiliary switches.
- Regulatory Compliance: Download the EU Declaration of Conformity if you require structural or safety inspection sign-offs.
Brand New BELIMO BFN230 Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Nominal Voltage: AC/DC 24 V (50/60 Hz)
- Torque: 9 Nm (Motor) / 7 Nm (Spring-return)
- Control Type: Open/Close (On/Off)
- Running Time: ~60 seconds (Motor)
- Mechanical Interface: Form fit 12×12 mm, continuous hollow shaft
- Protection Rating: IP54 (dust and splash water protection)
- Auxiliary Switches: 2x SPDT (Integrated for position feedback)
Brand New BELIMO BFN24 Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Application Compatibility: Optimized strictly for Cooling Only applications within 2-pipe systems.
- Power & Voltage: Operates on standard AC 220–240V, 50/60Hz line voltage (with some variations supporting 24V inputs).
- Operating Range: Handles an ambient environment range of 0 to 50°C.
- Fan Speed Control: Integrated physical slide or button configuration for 3-speed fan operation (Low, Medium, High).
- Actuator Control: Supports open-close toggle command signaling for either 2-wire or 3-wire valve actuators via built-in VO (Valve Open) and VC (Valve Close) dry contacts.
- Terminal Mark: Connection Purpose
- I / II / III: Fan Outputs (Low, Mid, High Speeds respectively)
- VO: Output signal to open the actuator
- VC: Output signal to close the actuator
Brand New BELIMO CFU-M212 Thermostat. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
