Showing 273–288 of 1357 results
-
REQUEST A QUOTE

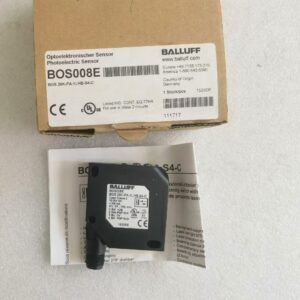

- Manufacturer & Order Code: Balluff / BOS008E
- Series & Form Factor: 26K
- Dimensions: 17 x 50 x 50 mm
- Operating Principle: Photoelectric / Diffuse
- Sensing Feature: Background Suppression
- Sensing Range: 30…150 mm
- Light Source: Laser Red Light
- Light Spot Size: Ø 0.1 mm
- Output Interface: PNP Normally Open (NO) / Normally Closed (NC)
- Electrical Connection: M12x1 Male Connector, 4-pin
Brand New BALLUFF BOS26K-PA-1LHB-S4-C Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Supply Voltage: 24 V AC/DC (Universal Power)
- Safety Inputs: 2 x Digital Inputs (1 NO / 1 NC complementary per button)
- Safety Outputs: 2 NO (Normally Open) Redundant, Forced-Guided Contacts
- Contact Rating: 6 A Resistive @ 250 V AC
- Safety Ratings: SIL 3, PLe, Category 4
- Simultaneity Window: ≤ 500 ms (typical)
- Enclosure / IP Rating: Polycarbonate housing, IP20
- Mounting & Width: 35 mm DIN Rail Mount, 22.5 mm wide
- Terminal Type: Removable screw terminals
- LED Indicators: 5 LEDs (Power, Fault, Input 1, Input 2, Output)
Brand New BANNER AT-FM-10K Safety Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Baumer
- Mounting Type: Flush / Shielded
- Output Circuit: Push-Pull (NPN/PNP selectable depending on wiring)
- Maximum Output Current: < 100 mA
- Current Consumption (No Load): Max. 15 mA
- Switching Frequency: < 35 Hz
- Dimensions: 52.4 mm (Length) x 25 mm (Width) x 6 mm (Depth)
- Housing Material: Polyamide (PA 12)
- Connection Type: 2-meter PVC Cable (3 × 0.14 mm²)
- IP Protection Rating: IP 65
Brand New BANNER CFDK-25G1125-LN4 Proximity Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Part Number: 73121
- Sensing Beam: Visible Red LED
- Response Time: 0.2 ms (200 µs) / High-Speed
- Input Voltage: 10–30 V DC
- Output Type: 1 x Single Discrete Transistor (NPN/PNP configuration)
- Physical Interface: Pre-wired 2 m (6.5 ft) 4-wire cable with bare ends
- Housing Dimensions: 11 mm Width x 68.1 mm Length x 35.9 mm Depth
- Mounting: 35 mm DIN Rail mount
- Environmental Protection: IP50, NEMA 1 rated
- Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
Brand New BANNER D10AFPY Sensor Amplifier. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Output Type: Bipolar: 1 x NPN and 1 x PNP discrete digital outputs
- Supply Voltage: 10 V DC to 30 V DC (12V / 24V nominal)
- Sensing Beam: Visible Red Light, 680 nm wavelength
- Response Time: 200 ms / 0.2 seconds
- Repeatability: 66 to 100 μs
- Adjustment Interface: TEACH mode button with a dynamic bar-graph display
- Connection Type: 2-meter (6.5 ft) pre-wired cable with bare-end flying leads (6 pins)
- Housing Material: Thermoplastic with a Polycarbonate (PC) cover
- Environmental Protection: IP50, NEMA 1 (intended for indoor DIN-rail tracks)
- Operating Temperature: -20°C to +55°C (-4°F to 131°F)
Brand New BANNER D10BFP 74036 Photoelectric Sensor. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Sensing Beam: Visible Red Light (Wavelength: 680 nm)
- Input Voltage: 12–24 V DC
- Output Type: Dual Discrete PNP Transistor (150mA max load)
- Response Time: Ultra-fast: Selectable between 50 μs, 200 μs, 1 ms, and 2.5 ms
- Housing Material: Thermoplastic housing with a Polycarbonate (PC) cover
- Environmental Rating: IP50; NEMA 1
- Operating Temp: -10 to +55 °C
- Connection Type: Pre-wired 2 m (6.5 ft) cable with bare-end flying leads
- Required Fiber: Banner P-Series plastic fiber optic cables (T5 Termination)
- Application Variant Notice: Note that there is a highly specialized version of this unit designated as D10DPFP-10788 (Part #10788). This specific variant is hardware-modified for high-speed pharmaceutical pill-counting applications and features a truncated 0.840 m cable rather than the standard 2 m line. Double-check your current hardware markings to verify which baseline you need.
Brand New BANNER D10DPFP Sensor Amplifier. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Part Number: 19350
- Input Voltage: 10–30 V DC (12V DC / 24V DC nominal)
- Output Type: 1 x NPN Transistor Digital Output
- Response Time: 0.2 ms (200 μs)
- Sensing Beam: Visible Red Light (660 nm wavelength)
- Connection Type: Pre-wired 2 m (6.5 ft) cable with bare end flying leads
- Housing Material: Thermoplastic
- Environmental Rating: IP50, NEMA 1
- Operating Temperature: -10°C to +55°C
- Sensing Range: Dependent upon the specific fiber optic assembly attached
Brand New BANNER DF-G1-NS-2M Proximity Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Part Number: 19355
- Supply Voltage: 10–30 V DC (12 V DC / 24 V DC nominal)
- Output: 1 PNP digital transistor output
- Connection: Pre-wired 2-meter (6.5 ft) PVC cable terminated with bare-end flying leads
- Sensing Beam: Visible red light (660 nm wavelength)
- Response Speed: Fast response time of 200 µs (0.2 ms) ideal for small object detection
- Mounting & Housing: DIN rail mountable rectangular thermoplastic housing
- Environmental Rating: IP50, NEMA 1 rated for temperatures between -10°C and +55°C
- Fiber Compatibility: Built with a lever-action fiber clamp compatible with any standard 2.2 mm diameter plastic or glass fiber optic assembly
Brand New BANNER DF-G1-PS-2M Fiber Optic Amplifier (DF-G1 Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q12AB6FF30
- Sensing mode: Fixed-field background suppression
- Cutoff distance: 30 mm
- Focus distance: 16 mm
- Supply voltage: 10-30 VDC
- Output: Bipolar light-operate: 1 NPN and 1 PNP
- Connection: 2 m cable, 3-wire
- Sensing beam: Visible red LED, 640 nm
- Response time: 0.85 ms ON/OFF
- Protection rating: IP67
- Operating temperature: -20 to 55 °C
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q12AB6FF50
- Sensing mode: Fixed-field background suppression
- Cutoff distance: 50 mm
- Focus distance: 16 mm
- Supply voltage: 10-30 VDC
- Output: Bipolar light-operate: 1 NPN and 1 PNP
- Connection: 2 m cable, 3-wire
- Sensing beam: Visible red LED
- Protection rating: IP67
- Housing style: Miniature rectangular thermoplastic housing
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q12AB6RQ
- Sensing mode: Opposed mode receiver (effective beam 5.7 mm); 2 m (6.5 ft) range with matching Q12 emitter
- Supply voltage: 10-30 V DC (10% max ripple) at 20 mA maximum current
- Output: Light Operate (LO), bipolar: 1 PNP + 1 NPN solid-state outputs
- Connection: 150 mm (6 in) cable with 4-pin M8 pigtail quick disconnect
- Sensing beam: 640 nm visible red LED
- Output response time: 1.3 ms ON / 900 microseconds OFF (opposed mode)
- Switching frequency: 385 Hz (opposed mode)
- Environmental rating: IP67; thermoplastic housing; -20 to +55 deg C; 95% RH @ 50 deg C
- Housing: Compact 8 mm (0.31 in) rectangular thermoplastic housing, polycarbonate lens, LED indicators
- Item status: RELEASED
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q20PDL
- Sensing mode: Long-range diffuse (proximity), 624 nm visible red; range 800 mm (32 in) on 90% reflectance test card
- Supply voltage: 10-30 V DC (10% max ripple) at less than 18 mA, exclusive of load
- Output: Complementary solid-state PNP (light operate + dark operate); max 100 mA with short-circuit protection
- Connection: Integral 2 m (6.5 ft) 4-wire unterminated cable
- Environmental rating: IP67, NEMA 4X; -20 to +60 deg C; 95% RH @ 50 deg C
- Construction: Overmolded ABS housing, PMMA lenses, PBT gain adjuster, rectangular thermoplastic body
- Adjustments / indicators: Single-turn gain potentiometer; power (green) and output (amber) LEDs with marginal-signal flashing
- Item status: RELEASED
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q3XTBLD-Q8
- Product type: Q3X Series Laser Contrast Sensor (Laser Expert diffuse); model Q3XTBLD-Q8 belongs to the Q3XT Series laser diffuse group
- Sensing range: Contrast sensing range 0 to 300 mm (11.81 in); background suppression distance: Not Applicable
- Sensing beam: Visible red Class 2 laser, 655 nm; laser output power < 0.42 mW; pulse duration 5 us
- Supply voltage: 10-30 V DC; supply power < 675 mW; current consumption < 28 mA at 24 V DC; protected against reverse polarity and transient overvoltages
- Outputs: Bipolar: 1 PNP + 1 NPN solid-state outputs, 100 mA maximum each (protected against continuous overload and short circuit); off-state leakage < 10 uA
- Response speed: User selectable 250 us / 1 ms / 5 ms; repeatability 60 us; delay at power-up 1 s
- Output operation: Light Operate / Dark Operate (TEACH modes: two-point static, dynamic, window, light set, dark set); ambient light immunity > 5000 lux
- Connection: 5-pin M12 integral quick disconnect (Q8 suffix); QD models require a mating cordset
- Environmental rating: IP67 / IP68 / IP69K (IEC 60529, ISO 20653), NEMA 4X; washdown rated; -10 to +50 deg C; 35-95% RH
- Construction: Rugged nickel-plated zinc die-cast housing with nickel-plated aluminum side cover and scratch-resistant PMMA acrylic lens; rectangular housing with M18 mounting
- Adjustment / indication: Two tactile buttons below angled 3-digit display with bright output indicator; remote TEACH input supported
- Item status: RELEASED (active product; Banner part number 91638)
-
- Manufacturer: Banner Engineering
- Model / Part Number: Q45AD9DLQ
- Product type: Q45 Series Rugged Rectangle Sensor, NAMUR type; Q45AD9DLQ = diffuse (proximity), long-range model with 4-pin M12 QD
- Sensing mode / range: Diffuse (proximity), 880 nm infrared; range 1 m (40 in) based on a 90% reflectance white test card (long-range diffuse model)
- Supply voltage: 5 to 15 V DC; supply voltage is provided by the certified NAMUR switching amplifier / intrinsically safe barrier to which the sensor is connected
- Output: NAMUR constant-current output: <= 1.2 mA in the 'dark' condition and >= 2.1 mA in the 'light' condition (output passes the sensor supply current)
- Output response time: 5 ms on/off (does not include amplifier response; opposed-mode receivers are 2 ms on / 0.4 ms off)
- Construction: Molded thermoplastic polyester housing, o-ring sealed transparent Lexan top cover, molded acrylic lenses, stainless steel hardware; designed to withstand 1200 psi washdown
- Environmental rating: Banner tested to NEMA 6P and IEC IP67; -40 to +70 deg C; maximum RH 90% at 50 deg C (non-condensing)
- Connection: 4-pin M12 integral quick disconnect (Q suffix); QD models require mating MQD9-4.. cordset (2 m cable version is Q45AD9DL)
- Hazardous area approvals: Intrinsically safe when used with certified switching amplifiers/barriers: ATEX II 1 G Ex ia IIC T5 Ga; IECEx Ex ia IIC T5 Ga; FM/CSA IS Class I/II/III Div 1 Groups ABCDEFG T5; entity parameters Ui=15 V, Ii=60 mA, Pi=225 mW
- Item status: RELEASED (active product; Banner part number 37628)
-
REQUEST A QUOTE
- Manufacturer: BANNER
- Model / Part Number: OTBVP6
- Operation Mode: Momentary action (active only while a finger interrupts the optical beam).
- Input Supply Voltage: 10–30 V DC (12–24 V DC nominal).
- Output Configuration: Complementary PNP solid-state output with both Normally Open (NO) and Normally Closed (NC) functions.
- Electrical Connection: Pre-wired with a 2-meter (6.5 ft) 4-wire integral cable terminating in bare flying leads.
- Housing & Materials: Saddle/yoke-shaped black housing featuring a Polysulfone upper housing and a Thermoplastic Polyester base.
- Environmental Protection: Rugged IP66 rating (also rated NEMA 1, 3, 4, 4X, 12, and 13) making it highly resilient in washdown environments.
- Field Cover: Includes a black field cover (F.C.) to prevent inadvertent activation from falling objects or side contact. (Note: A yellow field cover variant is available under part number 35094).
- Mounting Thread Size: 30 mm base/flush mounting hole.
- Operating Temperature: -20 °C to +50 °C (-4 °F to 122 °F).
- Status Indicators: Built-in dual LEDs indicating "Power On" and "Output Activated" conditions.
- Manufacturer Part Number: 28589.
- Official Documentation: Technical layout files, including 3D CAD data and the complete user manual, can be accessed directly on the Banner Engineering OTBVP6 Product Page.
-
REQUEST A QUOTE
- Manufacturer: BANNER
- Model / Part Number: OTBVP6QD
- Manufacturer: Banner Engineering
- Part Number: 28590
- Operating Voltage: 10–30 V DC (12–24 V DC Nominal)
- Output Type: Complementary PNP (1 Normally Open / 1 Normally Closed)
- Action Type: Momentary
- Connection Type: 4-pin 7/8"-16UN-2B MINI-style Quick Disconnect (Integral QD)
- Housing Materials: Polysulfone upper housing / Thermoplastic Polyester (Valox®) base
- Field Cover Color: Black
- Mounting Size: 30 mm threaded base (Flush mountable)
- Environmental Rating: IP66 / NEMA 1, 3, 4, 4X, 12, 13
- Certifications: CE, cULus Listed, CSA
- Operation Principle: The solid-state output activates as long as an object (such as a finger) is placed into the saddle/yoke area and interrupts the infrared sensing beam. No physical pressure is required.
- Required Cable: Quick disconnect models require a matching MBCC-412 cable (Part Number: 25226), which must be purchased separately.
- LED Diagnostics: Built-in LED lights indicate when power is on and when the output is actively triggered.
