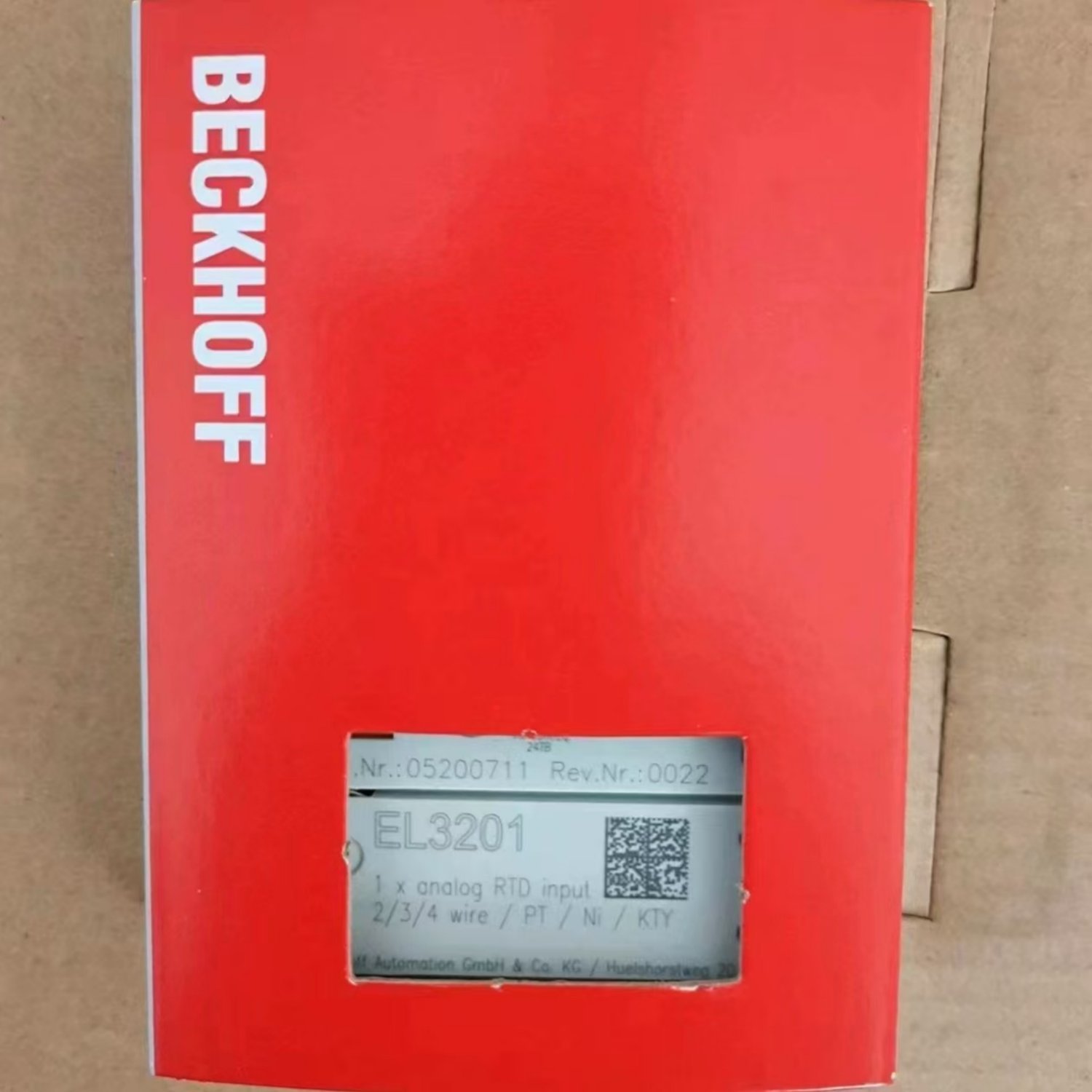

Beckhoff EL3201 1-Channel RTD Analog Input EtherCAT Terminal

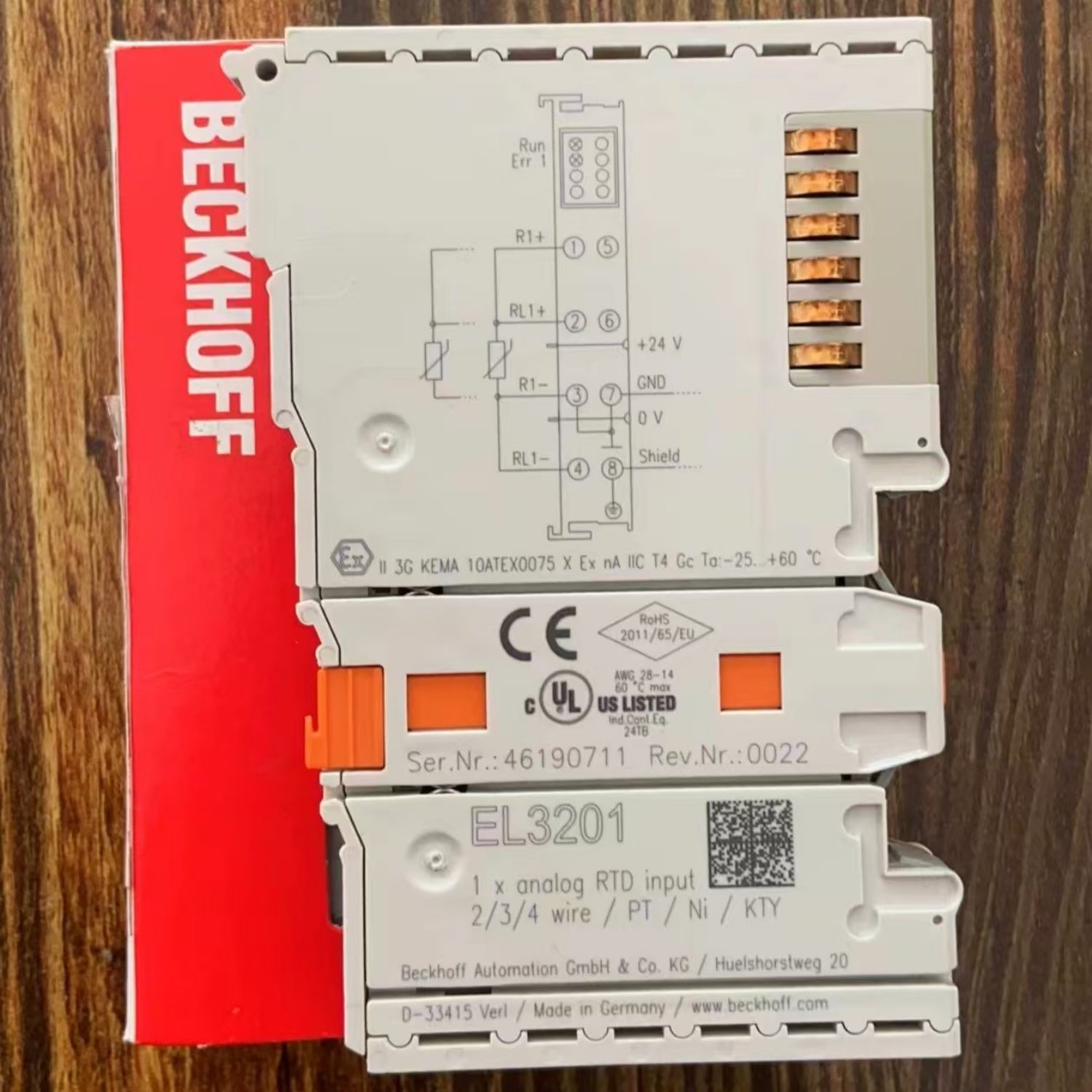

Beckhoff EL3201 1-Channel RTD Analog Input EtherCAT Terminal - Image 2

Beckhoff EL3201 1-Channel RTD Analog Input EtherCAT Terminal

  • Manufacturer: Beckhoff
  • Model / Part Number: EL3201
  • Product type: EL3201 EtherCAT Terminal, 1-channel analog input terminal for temperature measurement with RTD (Pt100), 16 bit
  • Number of inputs: 1
  • Sensor type: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 ohm to 4 kohm), KTY sensors (types per documentation)
  • Connection technology: 2-, 3-, 4-wire (default: 2-wire); 2-wire connection requires an external bridge
  • Conversion time: Approx. 24 ms default setting, 4…500 ms configurable
  • Temperature range: -200…+850 deg C (Pt sensors); -60…+250 deg C (Ni sensors)
  • Resolution: 0.1 deg C per digit; 1 x 32 bit RTD input in the process image; input filter cut-off frequency typ. 1 kHz
  • Electrical isolation: 500 V (E-bus/signal voltage)
  • Current consumption E-bus: Typ. 190 mA; power supply via the E-bus
  • Special features: Integrated digital filter, limit value monitoring, variable connection technology; resistance value can be output directly in ohms or converted to temperature in the terminal
  • Weight / dimensions: Approx. 60 g; 12 mm x 100 mm x 68 mm (W x H x D); polycarbonate compact terminal housing with signal LEDs
  • Operating conditions: -25…+60 deg C operating, -40…+85 deg C storage, 95% RH no condensation; IP20; vibration/shock per EN 60068-2-6/EN 60068-2-27; EMC per EN 61000-6-2/EN 61000-6-4
  • Approvals/markings: CE, CCC, UL, ATEX, IECEx, cFMus; Ex marking ATEX/IECEx II 3G Ex ec IIC T4 Gc; cFMus Class I, Division 2, Groups A, B, C, D
  • Product status: Regular delivery (active product; ordering variant ES3201 with pluggable wiring level also available)
  • SKU: EL3201
  • New Original In Stock
  • 6 Months Warranty
  • shipping by DHL or UPS
  • Availability shown is for reference only and will be confirmed at the time the order is processed.
  • Published quantities may change without prior notice.
  • The customer is responsible for verifying part number and specifications before confirming the purchase.
  • Certain products may be considered special order items depending on availability.
  • Extensive experience in industrial automation.
  • We source hard-to-find or discontinued parts.
  • Network of international manufacturers and distributors.
  • Personalized support for urgent requirements.
