Showing 145–160 of 1357 results
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1734-OE2V
- Product type: POINT I/O 2-channel analog output module (voltage)
- Output channels: 2 single-ended non-isolated voltage outputs
- Resolution: 14 bit (13 + sign), 1.28 mV/count
- Output range: 0…10 V (+10 V configurable)
- Load current: 3 mA per output
- Module power: POINTBus 75 mA at 5 V DC; external 24 V DC (10…28.8 V) 35 mA, 1.0 W
- Isolation: 50 V continuous, 2200 V DC for 60 s
- Dimensions: 56.6 x 12.1 x 77.5 mm, approx. 36 g
- Keyswitch position: 4
-
REQUEST A QUOTE
Technical Specifications
- Module Type: Analog Voltage Output Module (POINT I/O)
- Number of Outputs: 2 Single-ended, Non-isolated Channels
- Output Voltage Range: 0 to 10V or ±10V (configurable)
- Resolution: 14 bits
- Absolute Accuracy: 0.1% Full Scale @ 25°C (77°F)
- External Field Power: 24V DC nominal
- Mounting Format: DIN-rail mounted, open-style
- Key Features: On-board scaling, selectable input filters, hot-swappable (RIUP)
- Best for International Fast Shipping: New-in-box surplus component optimized for quick facility maintenance turnarounds, often shipping globally within 3 to 5 business days from platforms like Maxodeals.
Brand New ALLEN-BRADLEY 1734-OE2V SER.C Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Network Type: EtherNet/IP Adapter Module
- Input Voltage: 24V DC nominal (Range: 10–28V DC)
- Termination Type: M12 Quick-Disconnect
- Enclosure Rating: IP65, IP66, IP67, and IP69K (Sealed Housing when marked)
- Max Power Consumption: 8.1 W @ 28.8V DC (Backplane: 4.5 W @ 24V DC)
- Max Power Dissipation: 2.8 W @ 28.8V DC
- Dimensions: 4.41 x 2.83 x 2.56 in (112 x 72 x 65 mm)
- Weight: ~0.80 lbs (0.36 kg)
- Enclosureless Design: Features a heavily sealed, impact-resistant housing that meets IP67/IP69K standards, allowing direct machine mounting and eliminating the cost of electrical panels.
- Quick-Disconnect Fittings: Employs industry-standard M12 connectors for network and power inputs, lowering wiring labor costs and reducing point-of-failure exposure.
Brand New ALLEN-BRADLEY 1738-AENT Industrial Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-ITB16
- Product type: SLC 500 16-channel fast-response DC sinking input module
- Input channels: 16
- Input voltage: 24 V DC (10…30 V DC range)
- Input type: DC sinking
- Isolation: 500 V DC communication isolation
- Power dissipation: 0.2 W per point, 3.6 W total (per 1746-IN027)
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NIO4I
- Product type: SLC 500 combination analog I/O module (2 inputs + 2 current outputs), single-slot
- Input channels: 2 differential inputs, voltage or current selectable per channel, not individually isolated
- Current input range: -20 to +20 mA (normal); absolute maximum -30 to +30 mA
- Voltage input range: -10 to +10 V dc – 1 LSB
- Input converter: 16-bit; current resolution 1.22070 uA/LSB (250 ohm input impedance); voltage resolution 305.176 uV/LSB (1M ohm)
- Output channels: 2 analog current outputs, not individually isolated
- Current output range: 0 to +20 mA normal (0 to +21 mA – 1 LSB with 5% overrange)
- Output converter: 14-bit, R-2R ladder; resolution 2.56348 uA/LSB; load range 0 to 500 ohm
- Backplane current draw: 55 mA at 5 V dc; 145 mA at 24 V dc
- Isolation / update time: Field wiring to backplane 500 V dc; 512 us update, all channels in parallel
- Environment: Operating 0 to +60 C; storage -40 to +85 C; 5 to 95% RH non-condensing
- Lifecycle status: Discontinued (2021-04-29); repair options available; engineering replacement category
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NO4V
- Product type: SLC 500 analog output module, 4 voltage outputs (single-slot)
- Output channels: 4 analog voltage outputs, not individually isolated
- Voltage output range: -10 to +10 V dc – 1 LSB (single range and scale)
- Output converter: 14-bit, R-2R ladder; resolution 1.22070 mV/LSB; full scale 10 V dc
- Load range: 1K ohm to infinity; maximum load current 10 mA; max load reactance 1 uF
- Accuracy: +-0.208% of full scale at 25 C; +-0.384% over 0 to +60 C
- Step response: 2.5 ms (at 95%)
- Backplane current draw: 55 mA at 5 V dc; 145 mA at 24 V dc; external 24 V dc +-10% (21.6-26.4 V) for some applications
- Isolation / update time: Field wiring to backplane 500 V dc; 512 us update, all channels in parallel
- Environment: Operating 0 to +60 C; storage -40 to +85 C; 5 to 95% RH non-condensing
- Lifecycle status: End of Life 2015-12-30; replacement option 1746-NO8V
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NR8
- Product type: SLC 500 8-point resistance (RTD) input module
- Input channels: 8
- A/D conversion: Sigma-Delta
- Backplane load: 100 mA at 5 V dc + 55 mA at 24 V dc; 1.82 W max
- Isolation: 500 V ac 1 min (channels to backplane); 5 V dc channel-to-channel
- RTD types: Platinum, nickel, nickel-iron, copper; Pt385 range -200 to +850 C
- Excitation: 0.25 / 1.0 mA
- Operating temperature: 0 to 60 C
- Lifecycle: Discontinued (2024-09-30), engineering replacement
-
REQUEST A QUOTE
- Platform Compatibility: Allen-Bradley SLC 500 (Fits into any standard SLC 1746 I/O chassis slot).
- Input Channels: 4 backplane-isolated channels.
- Supported Thermocouple Types: J, K, T, E, R, S, B, and N.
- Millivolt Range Options: ±50 mV or ±100 mV.
- Signal Accuracy: Utilizes two Cold-Junction Compensation (CJC) sensors built into the terminal block to maintain thermocouple signal tracking accuracy across temperature fluctuations.
- Backplane Power Consumption: Draws power directly from the chassis backplane:
- Resolution: 16-bit input conversion (0.01°C resolution).

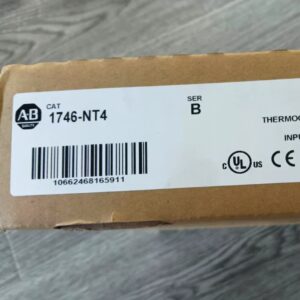

Brand New ALLEN-BRADLEY 1746-NT4 SER.B Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
- Manufacturer: Allen-Bradley
- Model / Part Number: 1746-NT4
- Product type: SLC 500 4-channel thermocouple/mV input module (Series B)
- Input channels: 4 (backplane isolated)
- Input types: Thermocouple or DC millivolt per channel, with cold junction compensation
- A/D conversion: Sigma-Delta modulation
- Input filtering: Programmable low-pass digital filter (10/50/60/250 Hz notch)
- Normal mode rejection: >100 dB at 50/60 Hz
- Common mode rejection: >150 dB at 50/60 Hz
- Isolation: 500 V dc continuous (inputs to chassis and backplane)
- Backplane load: 60 mA at 5 V dc + 40 mA at 24 V dc; 0.8 W max
-
REQUEST A QUOTE
- Manufacturer: Allen-Bradley / Rockwell Automation
- Input Voltage Range: 85 to 265 V AC (nominal 120 / 240 V AC)
- Module Distance Rating: 8 (Up to 8 modules can be installed on either side)
- Mounting Options: DIN Rail or Panel Mount
- Dimensions / Weight: 118 × 70 × 87 mm (4.65 × 2.76 × 3.43 in) / 525 g (1.16 lbs)
- Internal Protection: Replaceable Fuse (Wickmann 19195-3.15A or Littelfuse 02183.15MXP)
- Distance Rating Boundary: The 1769-PA2 features a rigid power supply distance rating of 8. This dictates that no hardware module can be positioned more than 8 slots away from the power supply unit to minimize voltage drops across the backplane ribbon connections.
- Voltage Selection Switch: Always inspect the input voltage selector toggle before executing live wire connections. Setting an incorrect profile (such as exposing a 120 V configuration to 240 V lines) will instantly rupture the internal protection fuse or permanently damage the backplane transformer circuit.
- Expansion Limits: While a standard platform setup allows a total expansion bank footprint of up to 16 modules, bank splitting modules and subsequent supplementary power supplies must obey system load calculations. Ensure total module 5V and 24V current draws do not cross the 2.0A and 0.8A thresholds respectively.
Brand New ALLEN-BRADLEY 1769-PA2 Switching Power Supply. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Input Voltage Range: 85–132V AC or 170–265V AC (Selectable via physical switch)
- Input Frequency: 47–63 Hz
- Current Capacity: 4.0 A @ 5V DC and 2.0 A @ 24V DC
- Total Output Power: 18 Watts
- Max Inrush Current: 25 A @ 132V AC
- Power Consumption: 200 VA @ 120V AC / 240 VA @ 240V AC
- Power Dissipation: 18 W @ 60°C (140°F)
- Mounting Options: DIN Rail or Panel Mount
- Dimensions: 4.65" H x 2.76" W x 3.43" D (118mm x 70mm x 87mm)
- Maximum Module Support: Can connect up to 16 I/O modules within a system bank.
Brand New ALLEN-BRADLEY 1769-PA4 Switching Power Supply. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product Line: Micro850® (Enhanced Version)
- Total Embedded I/O: 24 Points (14 Inputs, 10 Outputs)
- Digital Inputs: 14 inputs, 24V AC/DC
- Digital Outputs: 10 outputs, Relay type
- Input Power Supply: 24V DC (Operating range: 20.4–26.4V DC)
- Power Consumption: 28 Watts
- High-Speed Counters (HSC): 4 Channels (100 kHz support)
- Enclosure / Environmental: IP20 Standard (Indoor industrial use)
- Mounting Options: DIN Rail or Panel Mount
- Terminal Screw Torque: 0.6 Nm
Brand New ALLEN-BRADLEY 2080-L50E-24QWB Industrial Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer / Line: Allen-Bradley / PowerFlex 4
- Power Output: 1.0 HP / 0.75 kW
- Output Current: 4.5 Amps
- Input Voltage: 3-Phase, 200–240V AC (5.2A input rating)
- Enclosure Style: IP20 / NEMA Type Open (Panel Mount / DIN Rail)
- Interface Module: Fixed Digital Keypad & LED Display
- Communication: Integral RS-485
- EMC Filter: No CE Compliant Filter Included
- Braking Mechanism: Standard Brake Drive Mechanism
- Overcurrent Limits: Features protection up to a 200% hardware limit for 60 seconds and a 300% instantaneous fault limit for 3 seconds.
Brand New ALLEN-BRADLEY 22A-B4P5N104 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product Line: PowerFlex 4
- Power Output: 0.75 kW (1.0 HP)
- Input Voltage: 480V AC (3-Phase)
- Output Voltage: 0–460V AC (3-Phase)
- Continuous Output Current: 2.3 Amps
- Enclosure Type: IP20 / NEMA Type Open
- Human Interface Module (HIM): Fixed Keypad & LED Display
- Communication Port: RS-485
- Frame Size: Frame A
- Product Summary: ALLEN BRADLEY 22A-D2P3N104 POWERFLEX 4 VFD Motor Drive 0-460V-AC 0-240HZ 1HP.
Brand New ALLEN-BRADLEY 22A-D2P3N104 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product Family: PowerFlex 4 (Series A)
- Power Output: 1.5 kW (2.0 HP)
- Input Voltage Range: 3-Phase, 380–480 VAC (50/60 Hz)
- Operational Limits: 342–528 VAC input tolerance
- Input Current: 5.7 Amps
- Continuous Output Current: 4.0 Amps
- Frame Size: Frame A
- Enclosure Rating: IP20, NEMA/UL Type Open (Requires panel enclosure)
- EMC/CE Filter: No Internal Filter Included
- Brake IGBT: Integrated Standard Braking Mechanism
Brand New ALLEN-BRADLEY 22A-D4P0N104 SER.A Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Metric / Feature: Specification
- Product Family: PowerFlex 4 Drive Series (22A)
- Voltage Rating: 380 to 480 VAC, 3-Phase (50/60 Hz) (D)
- Output Current: 4.0 Amps (4P0)
- Power Output: 1.5 kW / 2.0 HP Heavy Duty
- Enclosure Rating: Panel Mount – IP20 / NEMA Type Open (N)
- Integrated Interface: Fixed Digital LED Keypad (1)
- Braking Module: Standard IGBT Brake Mechanism Built-In (4)
- Filtering: No Integrated CE Compliant Filter (0)
- Physical Frame Size: Frame Size A
Brand New ALLEN-BRADLEY 22A-D4P0N104 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
