Showing 81–96 of 1357 results
-
- Manufacturer: ABB

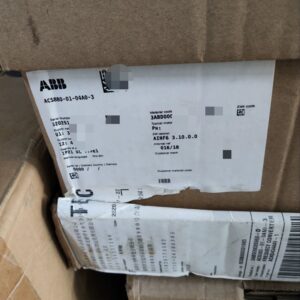

- Model / Part Number: ACS880-01-04A0-3
- Supply voltage: 3-phase 380…480 V AC
- Nominal input current (I1): 4.0 A
- Nominal output current (I2N): 4.0 A
- Maximum output current (Imax): 5.6 A
- Nominal motor power (Pn): 1.5 kW
- Apparent power (Sn): 2.8 kVA
- Light-duty output: 3.8 A / 1.5 kW
- Heavy-duty output: 3.3 A / 1.1 kW
- Frame size: R1
-
REQUEST A QUOTE
- Number of Channels: 8 channels
- Resolution: 12-bit
- Full-Scale Error: 0.1%
- Temperature Drift: Typical 30 ppm/°C, Maximum 50 ppm/°C
- Maximum Field Cable Length: 600 meters (656 yards)
- Protocol Support: No HART capabilities, no SOE (Sequence of Events) timing, and no built-in module redundancy.
- Power Dissipation: 3.8 W
- Current Consumption: 70 mA (+5 V) / 200 mA (+24 V)
- Isolation: 50 V rated / 500 V a.c. test
- Protection: Short-circuit proof; OSP (Output Status Retention) on timeout.
Brand New ABB AO801 3BSE020514R1 Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product ID / Part Number: 64605666 (Alternative kit parts: 68249457)
- Primary Function: Power Supply & Inverter Communication Board
- Voltage/Current Ratings: 1 Amp, Up to 690 V (On-board Transformer), 24V Output
- Net Weight: ~230 grams (Shipping weight varies up to 2 kg due to packaging)
- Common Markings: CP5 94V-0, PCB revision markings 64493647D 1/2 or 2/2
Brand New ABB APOW-01C Switching Power Supply. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: ABB
- Part Numbers / ID: CDP312R, 68281059, 64378660G
- Legacy Replacements: Replaces 61085301, 64378660, and 3BHB015055R0001
- Display Type: Alphanumeric 4-line × 20-character LCD screen
- Keypad Layout: 16-button flat tactile keypad (includes Start/Stop, Reset, Mode Selection)
- Operating Voltage: 24V DC
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Net Weight: 0.234 kg (Panel alone) to 0.5 kg (Assembly kit)
- Communication Interface: Detachable serial interface via an RJ-45 connection
Brand New ABB CDP312R Control Panel. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Rated Measuring Voltage: 3×350 to 580 V AC, 50/60 Hz
- Output Contacts: 2 c/o (DPDT) rated at 250 V / 4 A
- Adjustable Off-Delay Time: 0.1 to 30 seconds
- Power Supply: Powered directly via the measuring circuit (No external power required)
- Mounting Format: Standard DIN Rail installation
- Operating Temperature: -25°C to +60°C
- Safety Approvals: GL, UL (Suitable for industrial & railway applications)
- Overvoltage & Undervoltage: Features adjustable threshold values.
- Phase Failure Detection: Instantaneous trip during the loss of any operational phase.
- Phase Unbalance / Imbalance: Protects motors against thermal loads caused by asymmetrical supply networks.
Brand New ABB CM-MPN.52S 1SVR750487R8300 Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Catalog / Order Number: 1SVR730884R3300
- Measuring & Supply Voltage (L-L): 300 to 500 V AC, 50/60 Hz
- Output Contacts: 2 c/o (SPDT / DPDT) relays rated at 250 V / 4 A
- Tripping Delay Range: Adjustable from instantaneous (0 s) up to 30 s
- Connection Technology: Double-chamber cage screw terminals
- Mechanical Life: > 10 million operations
- Environmental Protection: IP20 (Housing) / IP40 (Front panel face)
- Operating Temperature Range: -25°C to +60°C
- Physical Dimensions: 22.5 × 85.6 × 103.7 mm (W × H × D)
- Over- and Undervoltage Monitoring: Detects when phase voltage exceeds or drops below safe, custom-configured constraints.
Brand New ABB CM-MPS.41S Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Catalog / Part Number: CM-PAS.41S / 1SVR730774R3300
- Measuring Voltage Range (L-L): 300 to 500 V AC (50/60 Hz)
- Monitored Parameters: Phase Failure, Phase Sequence, Phase Unbalance (Asymmetry)
- Output Contacts: 2 c/o (DPDT / Double Pole Double Throw) contacts
- Output Contact Rating: 250 V AC / 4 A (Resistive / AC-12)
- Tripping Time Delay: Adjustable ON-delay (0 s or 0.1 to 30 s)
- Response Time: < 100 ms on fault detection
- Terminal Connection Type: Screw Technology (Double-chamber cage connection terminals)
- Mounting Format: 35 mm DIN Rail (Top hat rail according to IEC/EN 60715)
- Operating Temperature: -25 °C to +60 °C (-13 °F to +140 °F)
Brand New ABB CM-PAS.41S Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Catalog Number / Product ID: 1SVR550882R9500
- UPC / EAN: 4013614348136
- Measuring & Control Supply Voltage: 380–440 V AC (L₁, L₂, L₃ Line-to-Line, 50/60 Hz)
- Output Type: 1 Normally Open (N/O) contact, working on the closed-circuit principle
- Contact Rating: 250 V / 4 A
- Fixed Trip Threshold: Phase failure occurs when measuring voltage drops below 60% of rated voltage
- Timing Parameters: 500 ms start-up delay / 150 ms tripping delay
- Terminal / Mounting Type: Screw terminals; Snap-on mounting for standard DIN Rail (TH35)
- Status Indicators: Yellow LED for Relay Status (R)
- Compliance / Standards: UL 508, CAN/CSA C22.2 No.14, IEC/EN 61000-6-2/3, RoHS
Brand New ABB CM-PBE 3×380-440VAC Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Phase Failure (Phase Loss): Instantly detects if one of the three phases goes completely dead or falls below fixed operational thresholds, preventing motors from "single-phasing" (which causes catastrophic winding burnouts).
- Phase Sequence: Ensures that the physical phase rotation matches the expected sequence (L1-L2-L3). If the rotation is reversed, the relay trips to prevent industrial equipment—like motors, pumps, and compressors—from spinning backwards and destroying themselves.
- Metric / Parameter: Specification Details
- Product ID (Standard): 1SVR550824R9100
- Frequency Range: 50 / 60 Hz
- Output Type: 1 c/o (SPDT / Changeover) contact operating on the closed-circuit principle
- Contact Rating: Maximum 250 V / 4 A
- Time Delay Response: ≈ 500 ms start-up/fault delay (fixed thresholds)
- Environmental Temperature: -20°C to +60°C (operational)
- Physical Dimensions: 22.5 mm (W) x 78 mm (H) x 78.5 mm (D)
Brand New ABB CM-PFE Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Frequency Range: 50 / 60 Hz
- Output Contacts: 2 c/o (SPDT changeover)
- Contact Rating: 250 V / 4 A
- Monitored Parameters: Phase Failure & Phase Sequence
- Response Time Delay: 500 ms
- Terminal Connection: Screw Terminals
- Mounting Type: DIN Rail Mountable
- Enclosure Rating: IP50 (Housing) / IP20 (Terminals)
- Self-Powered Efficiency: The relay does not require an external power supply; it is directly powered from the L1-L2-L3 measuring voltage lines.
- Phase Sequence Monitoring: Ensures that the phases are in the correct sequence (L1-L2-L3). If a sequence is inverted (which can cause three-phase motors to rotate backwards), the relay de-energizes.
Brand New ABB CM-PFS.S Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Phase Loss Monitoring: Protects downstream equipment (such as three-phase motors) from running on a missing phase, which causes severe overheating and immediate winding damage.
- Overvoltage & Undervoltage Protection: Monitors the mains voltage to ensure it stays within a safe, fixed window. If the voltage swings outside the nominal thresholds, it trips to prevent insulation breakdown or equipment brownouts.
- Interrupted Neutral Monitoring: Ensures that single-phase loads tied to the neutral wire are protected from unpredictable voltage fluctuations or floating neutrals.
- Manufacturer: ABB
- Measuring & Supply Voltage: Phase-to-Neutral (L-N):
- Output Configuration: 1 N/O (Normally Open) output contact
- Output Contact Rating: 250 V / 4 A (AC-12 resistive load)
- Threshold Adjustments: Fixed (Non-adjustable windows)
- Connection Capacity: Rigid / Flexible: 2x 18-16 AWG
- Tightening Torque: 7.08 in⋅lb (0.8 N⋅m)
Brand New ABB CM-PVE 185-265VAC Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Product ID / Code: 1SVR550871R9500
- Measuring / Supply Range: 320–460 V AC (L₁-L₂-L₃)
- Rated Frequency: 50 / 60 Hz
- Output Contact: 1 N/O (Normally Open)
- Contact Rating: 250 V / 4 A
- Response Time: 80 ms
- Hysteresis: 5%
- Housing Width: 22.5 mm
- Connection Type: Screw Terminals
- Phase Loss Detection: Instantly drops the output relay if any of the three phases fail completely.
Brand New ABB CM-PVE 3×320-460VAC Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Measuring & Supply Voltage: 3×300 to 500 V AC (50/60 Hz), self-powered from line
- Output Type: 2 c/o (DPDT / Change-over) contacts
- Contact Rating: 250 V AC / 4 A
- Tripping Delay Time: Adjustable from 0 s (instantaneous) up to 30 s
- Delay Behavior: Selectable ON-delay or OFF-delay configuration
- Terminal Connection: Screw terminals with double-chamber cage clamps
- Mounting Style: Standard 35 mm DIN Rail
- Protection Degree: Housing: IP50 | Terminals: IP20
- Approvals / Standards: CE, cULus, EAC, CCC, IEC 60255-27, Railway Approved
- R (Yellow): Indicates the state of the output relay contacts.
Brand New ABB CM-PVS.41S Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- ABB Article ID / EAN: 1SFA619100R1112 / 7320500550717
- Mounting Hole Diameter: 22.3 mm (Standard 22 mm panel cutout)
- Physical Dimensions: 30 mm × 30 mm × 55 mm (W × H × D)
- Net Weight: 0.018 kg (0.63 oz)
- Contact Configuration: 1 NO (Normally Open), 0 NC
- Operating Voltage: 24 V AC/DC (for the integrated green LED)
- Ingress Protection: IP20 (Terminals), IP66 / IP67 / IP69K (Front face)
- NEMA Enclosure Ratings: NEMA 1, 3R, 4, 4X, 12, 13
- Mechanical Durability: 500,000 operations (0.5 million cycles)
- Terminal Connections: Threaded screw clamp terminals
Brand New ABB CP1-11G-10 Pushbutton Switch. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: ABB (Asea Brown Boveri)
- Global Order Code / SKU: 1SVR405633R1100
- Relay Family Range: CR-MX (Pluggable Miniature Range)
- Contact Configuration: 4 c/o (SPDT) (4 Change-Over / Single Pole Double Throw contacts)
- Rated Output / Load Current: 5 A at 250 V AC (Note: Some manufacturing sheets list peak limits up to 7 A)
- Physical Pin Count: 14 Pins (Flat blade style plug-in design)
- Diagnostics Sub-Function: Integrated LED Indicator (Lights up when the coil is energized for easy troubleshooting)
- Environmental Compliance: RoHS Directive 2011/65/EU
- Visual Status Monitoring: The built-in LED provides immediate physical confirmation of control loop status without requiring manual multimeter probing.
- Modular Assembly: Designed to sit inside matching standard 14-pin DIN-rail mount sockets. It supports pluggable function modules (such as RC elements or varistor surge suppressors), mechanical holders, and identification markers.
Brand New ABB CR-MX024DC4L DC24V Phase Monitoring Relay. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Channels: 8 digital inputs, individually galvanic isolated
- Input Signal Thresholds: "0" Signal: 0–50 V a.c., 0–40 V d.c.
- Input Impedance: 21 kΩ (a.c.) / 134 kΩ (d.c.)
- Filtering & Delays: 6 ms analog filter; Selectable digital filter times (2, 4, 8, 16 ms)
- Analog Filter On/Off Delay: 5 / 28 ms
- Power Dissipation: Typically 2.8 W
- Modulebus Consumption: 50 mA @ +5 V Modulebus; 0 mA @ +24 V
- Max Cable Length: 200 m / 218.7 yds (a.c.), 600 m / 656.1 yds (d.c.)
- Physical Weight: 0.2 kg / 0.44 lbs
- Individual Galvanic Isolation: Every input channel is isolated from the others, providing superior fault isolation and protection for your central control hardware.
Brand New ABB DI821 3BSE008550R1 Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
