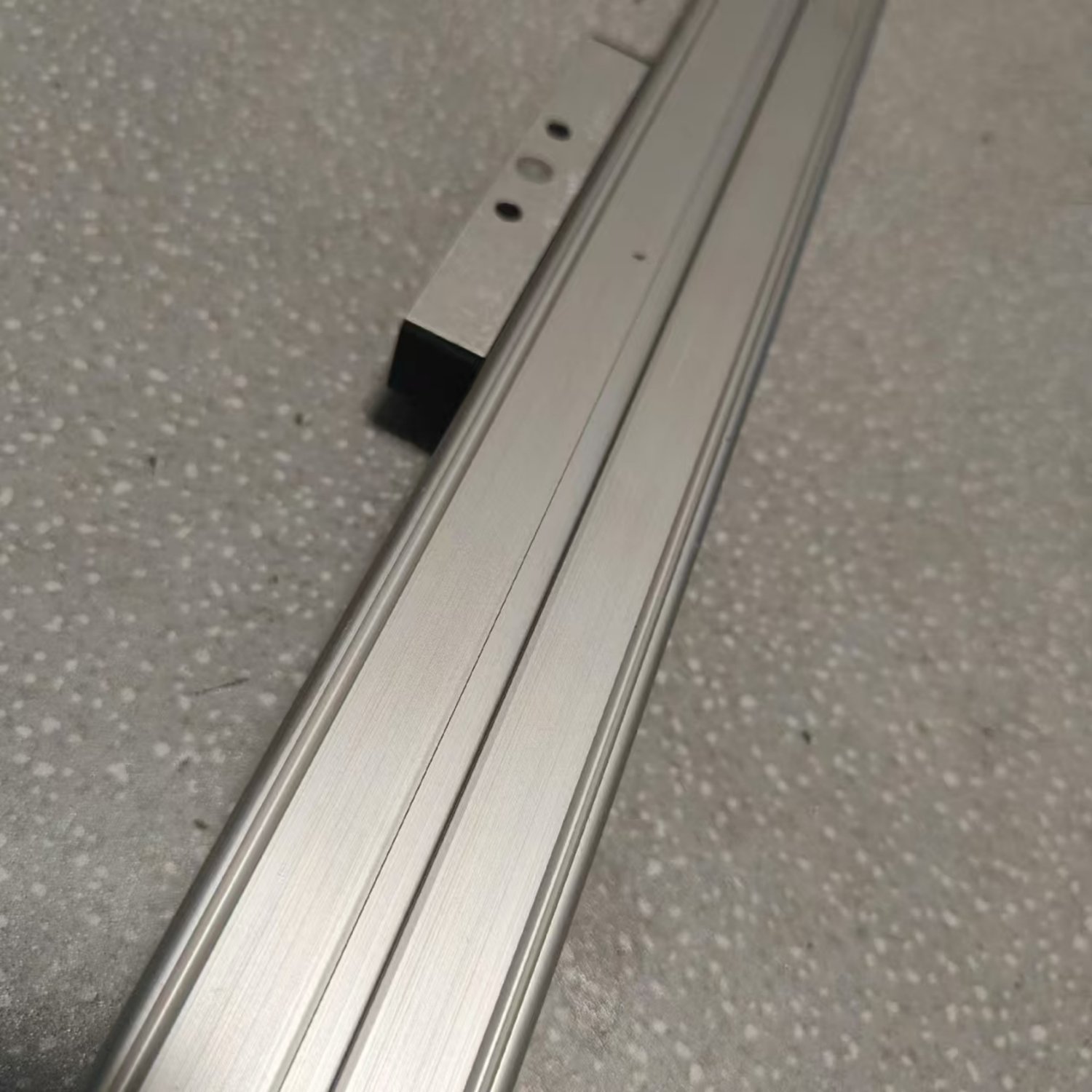

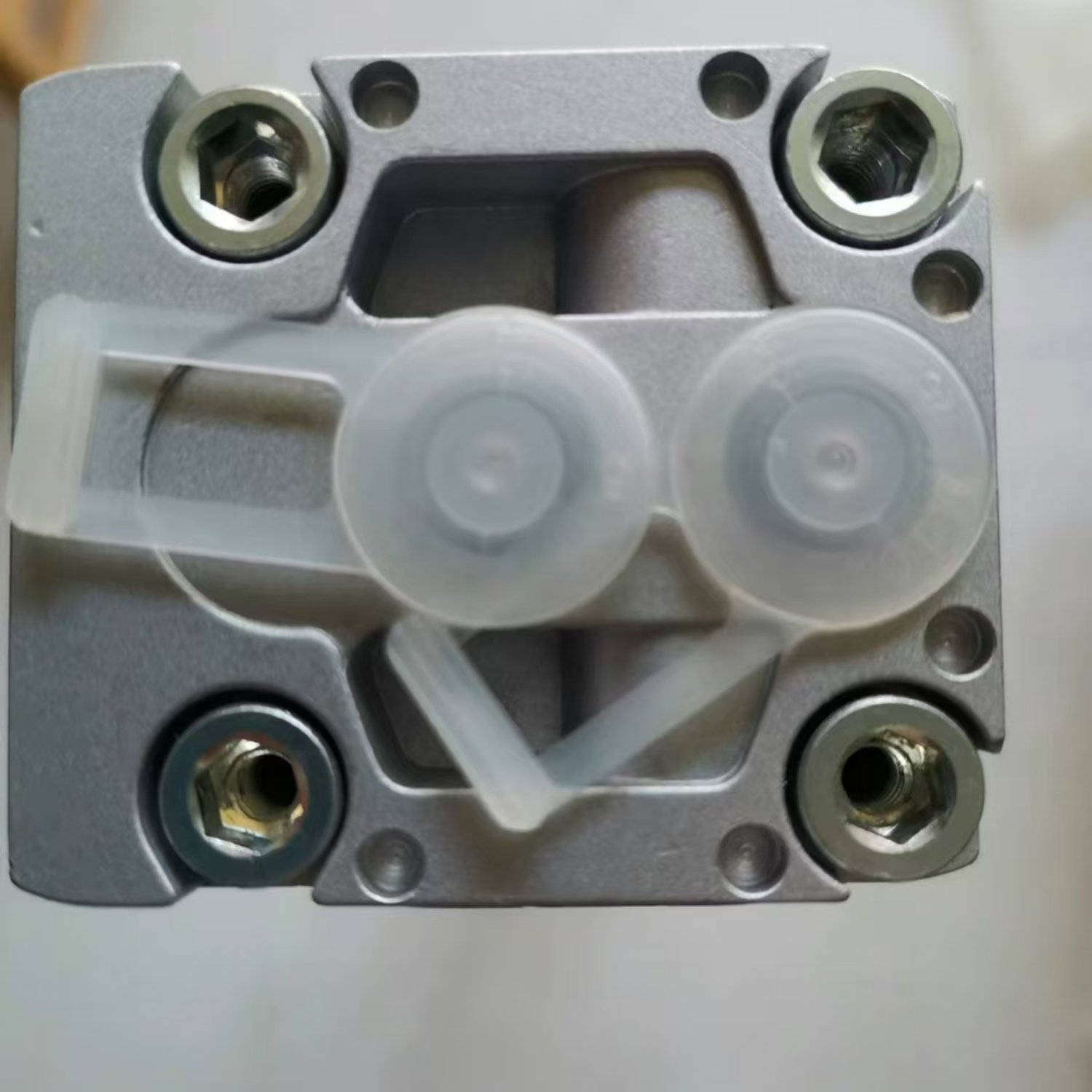

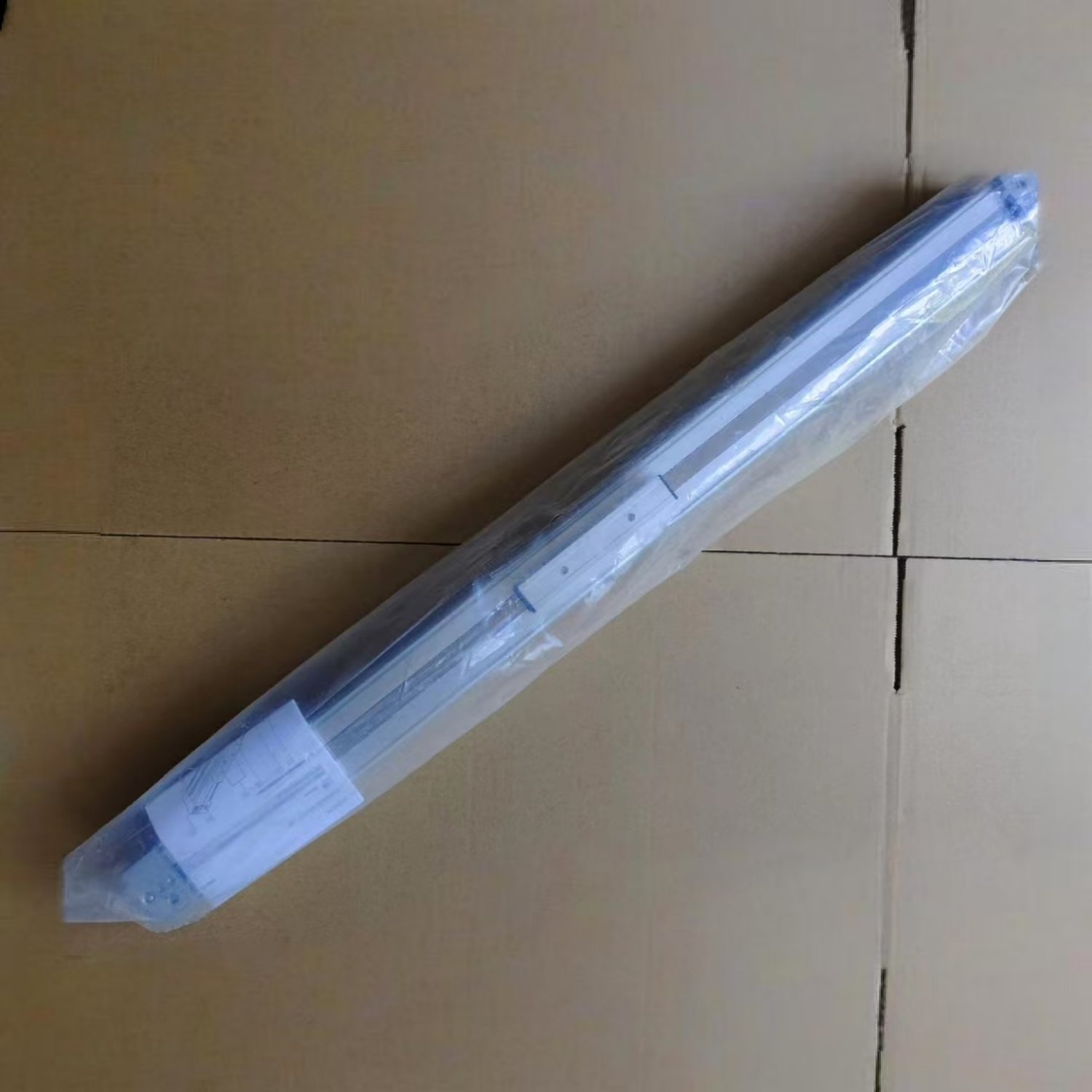

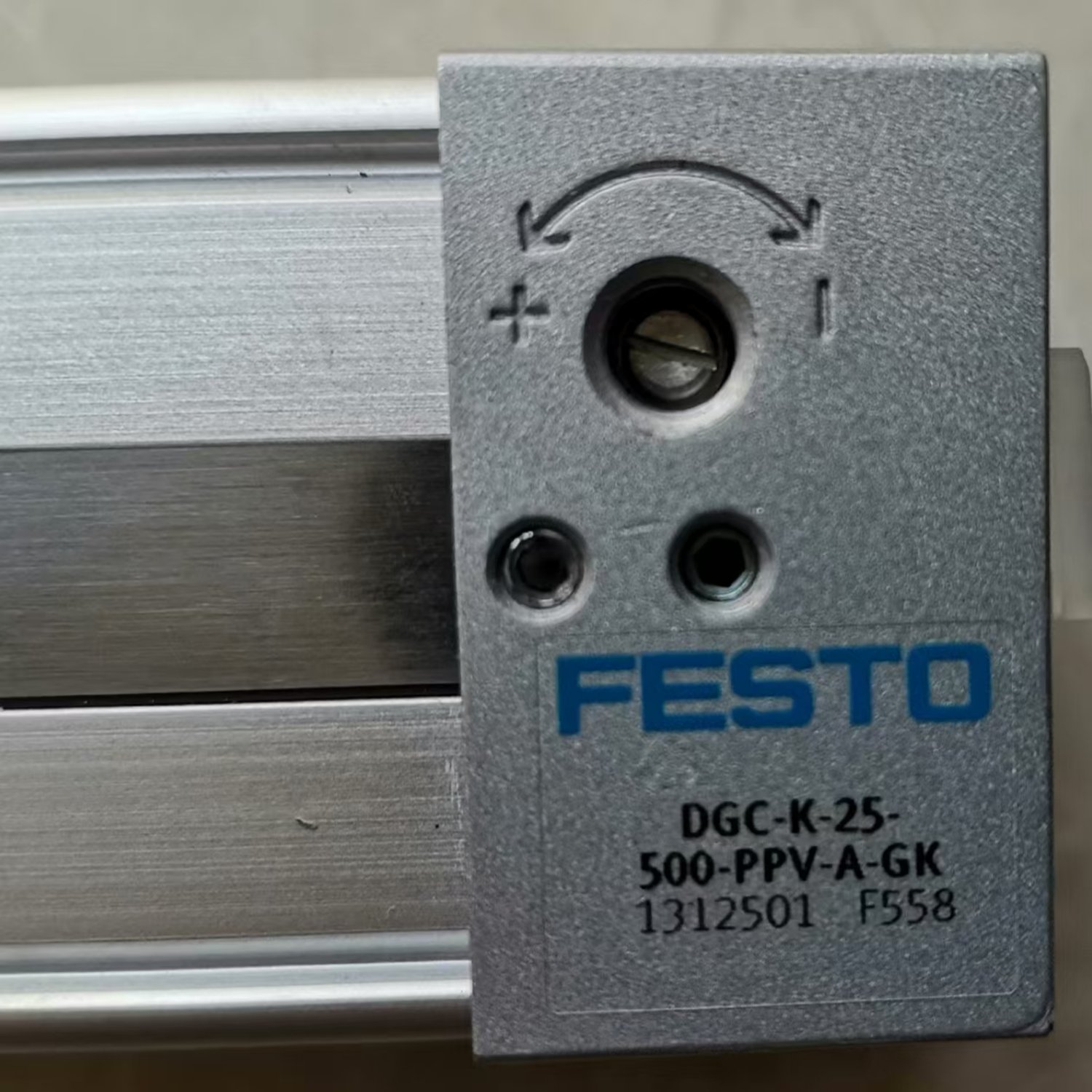

FESTO DGC-K-25-400-PPV-A-GK 1312501 Rodless Cylinder (DGC Series)

• Mode of Operation: Double-acting (requires compressed air to move in both directions).
• Operating Medium: Compressed air in accordance with ISO 8573-1:2010 [7:4:4]. Lubricated operation is permissible (and will require subsequent continuous lubrication).
• Ambient Temperature: -10°C to 60°C (14°F to 140°F).
• Mounting Position: Any / optional.
• Material Composition: Main housing/barrel constructed from aluminum; seals made from NBR/PU; slot sealing band composed of Polyamide (PA).
• ATEX Zone Compliance: Zone 1, Zone 2 (Gas); Zone 22 (Dust).
• ATEX Category: II 2G (Gas).
• Certifications: CE mark and UKCA marking conforming to EU explosion protection directives.
• Proximity Sensors: Typically uses Festo SMT-8M or SME-8M series T-slot proximity switches for automated end-stroke and intermediate position detection.
• Central Supports: Festo MUP-18/25 profile mount clamps to prevent deflection on mid-to-long stroke lengths.

Brand New FESTO DGC-K-25-400-PPV-A-GK 1312501 Servo Drive. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
