ALLEN-BRADLEY 100-C12EJ10 IEC Contactor
- Manufacturer: ALLEN-BRADLEY
- Model / Part Number: 100-C12EJ10
- Amperage Rating: 12 A at 400V (AC-3), 32 A at 400V (AC-1), and a 12 A thermal current rating.
- Power & Horsepower Ratings: 5.5 kW at 400V AC-3. It is rated for 3 HP at 230V and 7.5 HP at 460V for 3-phase motor loads.
- Coil Voltage: 24V DC Electronic Coil (low power consumption, drawing roughly 1.7 W hold-in power).

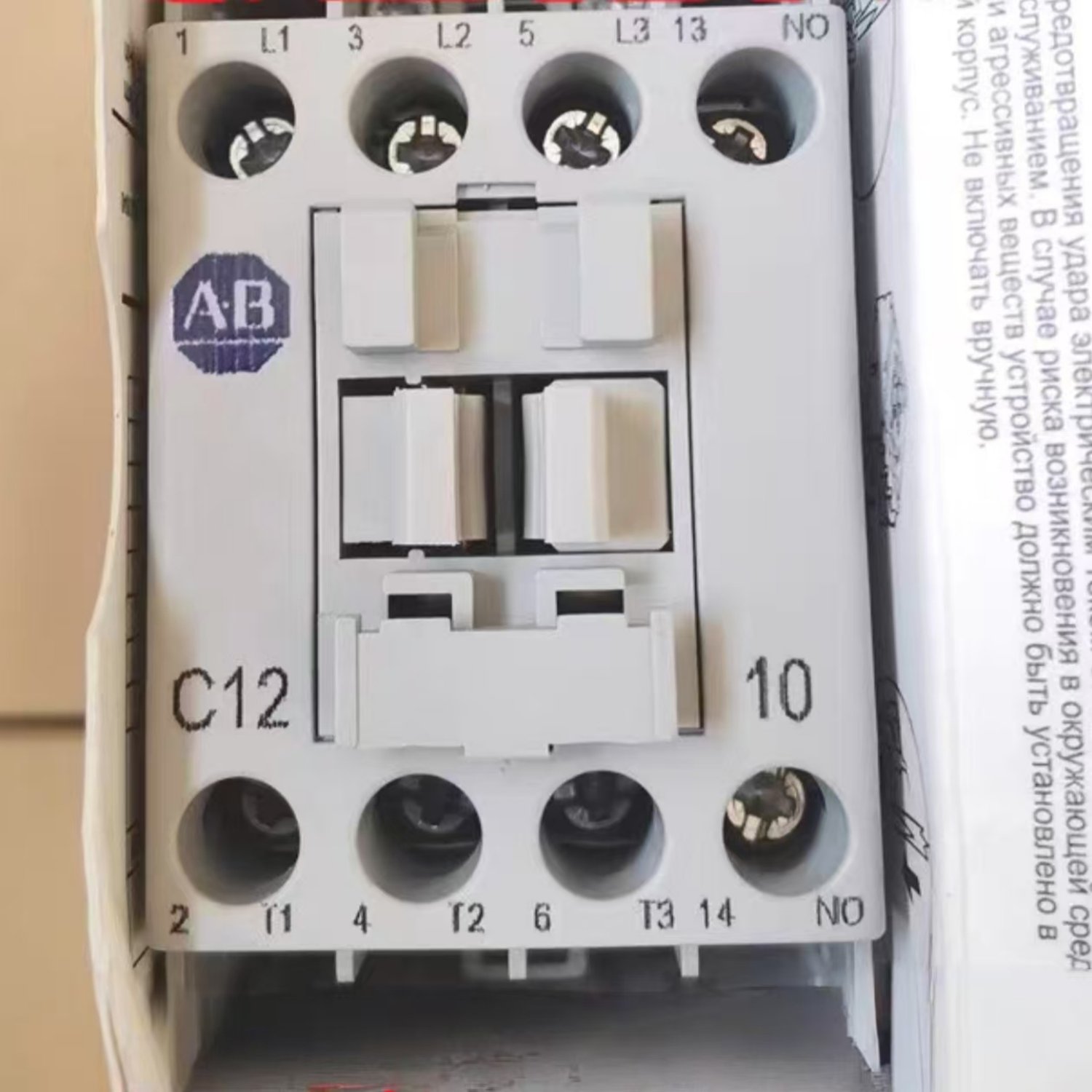

- Contact Configuration: 3 Normally Open (N.O.) main power poles plus 1 N.O. integrated auxiliary contact.
- Termination & Mounting: Screw-type terminals with line side coil termination. Supports base panel mounting or installation on standard 35 mm DIN rails.
- Physical Protection: IP20 / IP2X finger protection.
- Environmental Limits: Operational range between -25°C and +60°C.
- Dimensions: 81 mm Height × 45 mm Width × 86.5 mm Depth; weighs approximately 0.4 kg.
- Compliance Standards: Certifications include UL, cUL, CSA, CE, CCC, C-TICK, GOST, and KC. It conforms to IEC/EN 60947-4-1 and 60947-5-1.
- SKU: 100-C12EJ10
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
