Showing 913–928 of 1357 results
-
REQUEST A QUOTE
- Collector-Emitter Saturation: 3.2 V
- Package / Mounting: 7 Terminals, Chassis Mount
- Industrial Power Systems: Uninterruptible Power Supplies (UPS inverter/rectifier stages), AC motor speed controls, motion/servo controls, and heavy-duty welding power supplies.
- High-Voltage DIY & Tesla Coils: This module is widely considered a gold standard among hobbyists for building medium-to-high power DRSSTC (Dual Resonant Solid State Tesla Coils). Two modules paired in a full-bridge configuration can manage an output swing of nearly 1400V, producing electrical arcs exceeding 12 feet.
- Discontinued Status: The CM300DY-24H has been officially discontinued by Mitsubishi Electric.
Brand New MITSUBISHI CM300DY-24H IGBT Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Configuration: Dual / Half-Bridge (2 elements)
- Technology Generation: IGBT 5 (Trench Gate)
- Mounting / Terminals: Panel (Screw) / 7-Pin Tab
- Isolated Baseplate: All internal components and electrical interconnects are fully isolated from the copper heat-sinking baseplate. This provides simplified thermal management, letting you mount multiple modules to a single common heatsink without external electrical isolation.
- Discrete Free-Wheel Diode: Features integrated, super-fast recovery reverse diodes designed to handle high freewheeling currents and protect the IGBT structure from inductive voltage spikes.
- AC Motor Control: Variable frequency drives (VFDs) and high-power industrial AC drive inverters.
- Servo Controls: Precision motion control systems requiring heavy current handling.
- Uninterruptible Power Supplies (UPS): High-reliability backup power systems.
- Power Management: Battery-powered industrial supplies, solar inverters, and large DC-to-DC converters.
Brand New MITSUBISHI CM400DY-24A IGBT Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Configuration: Dual (Half-Bridge)
- Primary Uses: Optimized for general-purpose industrial inverters, AC motor drives, and high-precision servo controls.
- Integrated Diodes: Contains two IGBT transistors connected in a half-bridge layout, each supported by an ultra-fast recovery reverse freewheeling diode.
- Package Footprint: Chassis mount module configuration utilizing a standard multi-terminal layout with M6 nuts for structural power termination.
Brand New MITSUBISHI CM400DY-24NF IGBT Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Configuration: Single IGBT with discrete Free-Wheel Diode
- Weight: 270 g / ~0.6 lbs
- Isolated Baseplate: All internal components and electrical interconnects are fully isolated from the copper heatsink baseplate
- Integrated Free-Wheel Diode: Features a dedicated, super-fast recovery diode connected anti-parallel to handle inductive load current
Brand New MITSUBISHI CM450HA-5F IGBT Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Configuration: 1-Element (Single) Packaged as a single switch per module
- Mounting Type: Chassis Mount Heavy-duty bolt-down installation
- Uninterruptible Power Supplies (UPS): Frequently integrated to scale up energy capacity and reinforce industrial backup systems.
- DC Choppers & Converters: Managing voltage transitions in large industrial power feeds.
- Welding Equipment & Power Supplies: Regulating high-current demands safely.
- Datasheets: You can view complete pin configurations and timing diagrams on the Alldatasheet Technical Archive.
Brand New MITSUBISHI CM600HU-24F Single-Element IGBT Module (F-Series). In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model / Series: FR-CS82S-025-60 (FREQROL-CS80 Series)
- Input Power Source: Single-Phase 200 to 240 V AC (± 10%), 50/60Hz
- Rated Motor Capacity: 0.4 kW (approx. 0.5 Horsepower)
- Rated Output Current: 2.5 A
- Output Frequency Range: 0.2 to 400 Hz
- Control System: Soft-PWM, General-purpose magnetic flux vector control, or V/F control
- Enclosure Rating: IP20 (Open Type)
- Circuit Board Coating: Type "60" (Indicates conformal coating for improved environmental resistance)
- FR: FREQROL Inverter Series
- Kempston Controls US: Available as a standard stock item for domestic industrial fulfillment.
Brand New MITSUBISHI FR-CS82S-025-60 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Model Number: FR-D720S-0.75K-CHT
- Applicable Motor Capacity: 0.75 kW (1.0 HP)
- Input Power: 1-Phase 200–240V AC (±10%)
- Output Voltage: 3-Phase 200–240V AC
- Rated Output Current: 4.2 Amperes
- Output Frequency Range: 0.2 to 400 Hz
- Control System: V/F Control
- Communication Protocol: RS-485 (Modbus-RTU)
- Enclosure Rating: IP20
- Safety Integration: STO (Safe Torque Off)
Brand New MITSUBISHI FR-D720S-0.75K-CHT Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Series: FREQROL-E800
- Voltage Class: 200V Class (Three-Phase)
- Rated Capacity: 18.5 kW (~25 Horsepower)
- Ethernet: Standard / Base Model
- Monitor Output: FM Type Terminal
- Enclosure Rating: IP20
- Material Handling: Conveyors, sorting lines, and overhead cranes.
- HVAC Systems: High-capacity industrial fans, blowers, and commercial water pumps.
- Packaging & Textiles: Winders, tension-control machinery, and high-speed packaging lines.
- Food Processing: Industrial mixers, grinders, and automated bottling lines.

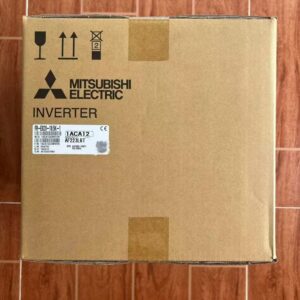

Brand New MITSUBISHI FR-E820-18.5K-1 Inverter. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Specification Attribute: Details & Metrics
- Manufacturer: Mitsubishi Electric (MELSEC-F Series)
- Total Built-in I/O: 48 Points (Expandable up to 256 I/O points locally)
- Digital Inputs: 24 Inputs (24V DC, Sink/Source flexible configuration)
- Digital Outputs: 24 Relay Outputs (Normally Open contacts)
- Rated Voltage / Supply: 24V DC (Allowable supply range: 16.8V to 28.8V DC)
- Output Capacity: 2A per point (240V AC or 30V DC max)
- Program Memory: 64,000 Steps (Internal RAM, expandable via optional cassette)
- Execution Speed: High-speed processing (0.065 μs per basic instruction)
- On-board Comms: Integrated RS-422 port; expandable via specialized function boards
Brand New MITSUBISHI FX3U-48MR-DS PLC Module. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Insert Type: High-Feed Milling Insert.
- Compatible Tool Body: Optimized for the Mitsubishi AJX12 series cutter bodies.
- Insert Size: 12-size family.
- Chipbreaker Variant: FT (Flat Top) – Specifically designed to deliver higher fracture resistance, making it ideal for rough machining and scaled cast iron.
- Substrate Material: Solid Carbide.
- Application Machine: CNC Machining Centers (optimized for climb milling).
- Coating Type: Physical Vapor Deposition (PVD) AlTiN (Aluminum Titanium Nitride).
- Material Suitability: Broad versatility spanning ISO categories P15–35 (Steel), M15–35 (Stainless Steel), and K15–35 (Cast Iron). It is also certified for workpieces up to a hardness of 45 HRC.
- Key Advantage: Unlike conventional coatings, the Miracle (Al,Ti)N crystalline structure significantly increases heat resistance and coating adhesion strength. This makes it highly stable in environments prone to sudden thermal cracking or heavy edge loading.
Brand New MITSUBISHI JDMW120420ZDSR-FT VP15TF CNC Insert. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer / Brand: Mitsubishi Electric
- Part Number / SKU: MR-J3ENCBL10M-A2-L (Equivalent: MRJ3ENCBL10MA2L)
- Cable Length: 10 meters / 32.8 feet
- Flexibility Class: Standard Flex (Fixed wiring; not for drag chains/moving applications)
- Ingress Protection: IP65 (Dust-tight and water-jet resistant)
- Connector Orientation: A2-L Designation: Opposite to load-side lead (cable exits toward the rear of the motor, away from the output shaft flange)
- Connector Types: L-type pre-molded encoder connector (Motor end) to Servo Amplifier connector (Drive end)
- Operating Temp: -10°C to 60°C (14°F to 140°F)
- Sheath Material: Oil- and abrasion-resistant PVC (Shielded copper conductors)
- Net Weight: 0.83 kg (1.83 lbs)
Brand New MITSUBISHI MR-J3ENCBL10M-A2-L 10M Cable. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Mitsubishi Electric
- Product Series: MELSERVO-J3 (MR-J3 series)
- Cable Type: Encoder cable (MR-J3ENCBL series)
- Cable Length: 3 m (from model designation 3M)
- Function: Connects the servo motor encoder to the MR-J3 servo amplifier
- IP Rating: IP20
Brand New MITSUBISHI MR-J3ENCBL3M-A1-L Motor Encoder Cable. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Rated Output Power: 1000W (1.0 kW)
- Rated Current: 6.0 A
- Supply Voltage (AC): 200 Vac–240 Vac (Single-phase or 3-phase input)
- Supply Voltage (DC): 283 Vdc–340 Vdc
- Network Interface: SSCNET III/H (High-speed fiber optic motion network)
- Control Type: Fully closed-loop control (4-wire type)
- Encoder Interface: Load-side encoder A/B/Z-phase input
- Hardware Protections: Built-in dynamic brake & built-in regenerative resistor
- Ingress Protection: IP20
- Operating Temp: 0°C to +55°C (Ambient)
Brand New MITSUBISHI MR-J4-100B-RJ Servo Drive. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Mitsubishi Electric
- Model Classification: NV125-CV (WS-V Series, Economy Class)
- Number of Poles: 3 Poles (3P)
- Current Type: AC (Alternating Current)
- Rated Operational Voltage: 2V to 440V AC
- Leakage Current Sensitivities: Selectable / adjustable (typically 100mA / 200mA / 500mA)
- Max Operating (Tripping) Time: ≤ 0.04 seconds at rated sensitivity
- Harmonic Surge Readiness: The internal sensing circuit is built with active filters and DPDC (Dual Pole Detection Circuit) layers designed to prevent nuisance or unnecessary tripping caused by normal harmonic waves or environmental surge fluctuations.
- Compact Integration: Integrates earth-leakage relay components directly inside a standard 125-frame size footprint, allowing simple physical retrofitting in distribution boards where standard non-leakage MCCBs are deployed.
- Versatile Mounting Formats: Compatible with front surface connection, back surface connection, embedded structural, or inserted plug-in terminal distributions.
Brand New MITSUBISHI NV125-CV 3P 125A Circuit Breaker. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Encoder Type: Rotary Optical Absolute Encoder
- Resolution: Approximately 1,000,000 pulses/counts per revolution (10⁶ pulses/rev).
- Output Interface: High-speed serial digital data (transmitting digital gray code signals).
- Mounting Design: Hollow shaft architecture designed for direct, rigid integration onto the motor shaft.
- Lifecycle Status: Discontinued by the manufacturer. Official technical documentation from Mitsubishi Electric notes that the original component is officially substituted and succeeded by model OSA105S5A.
- Elimination of Homing Cycles: Because it tracks absolute positional data rather than incremental pulses, the system retains the precise location of the machine axes during a power failure or shutdown. Operators do not need to perform a time-consuming machine homing routine upon rebooting.
- High-Precision Closed Loop Feedback: The high pulse-count resolution ensures exceptionally smooth motion profiling, minimized torque ripple, and microscopic positioning accuracies required for tight-tolerance CNC tooling and rapid automation tasks.
- Optical Contamination: Oil, grease, or dust entering the encoder housing and clouding the glass code disc.
- Cable Degradation: Cracked or poorly shielded serial cables inducing digital noise into the grey code stream.
- Internal Component Fatigue: Degradation of the internal LED light source or photodiode receiver array over years of high-vibration runtime.
Brand New MITSUBISHI OSA105S5 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
-
REQUEST A QUOTE
- Manufacturer: Mitsubishi Electric
- Model Type: Absolute Rotary Encoder
- Resolution: 18-bit (262,144 counts/rev nominal / ~260,000 pulses/rev specified)
- Interface: Pure Serial Digital Output (SSI / Serial Style Interface)
- Logic Supply: Nominal 5 V DC
- Mounting Type: Internal Flange Mounted
- Manufacturer Status: Discontinued (Legacy Component)
- HC-SFS Series: Regularly mounted on motors such as the HC-SFS102 and HC-SFS152 (typically 750W / 0.75kW mid-inertia motors).
- HF-Series: Used with units like the HF-104S-A48.
- Signal Structure: As a purely serial encoder, it transmits via differential data lines (Data and Data Not) rather than traditional incremental A/B phases.
Brand New MITSUBISHI OSA18-100 Rotary Encoder. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
