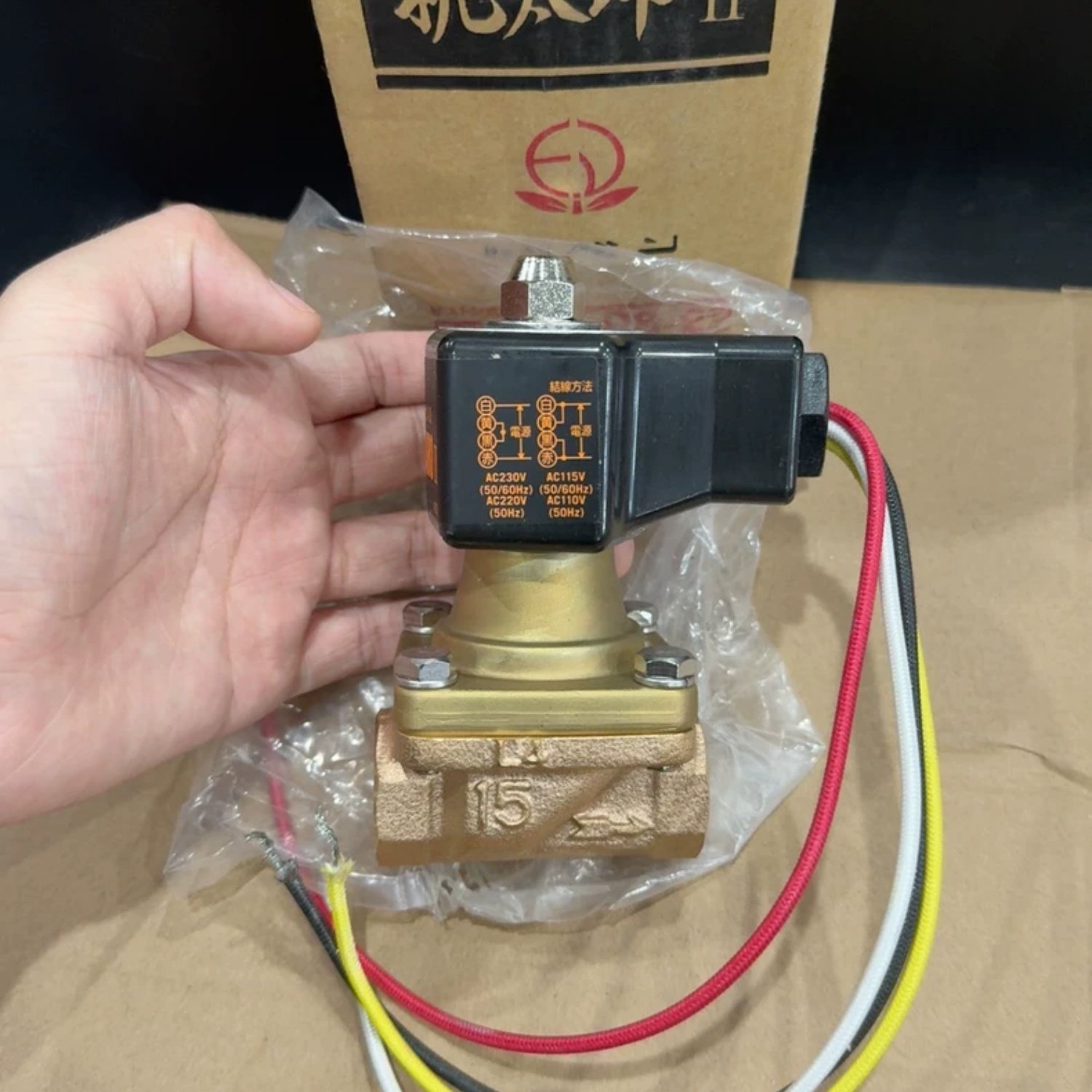

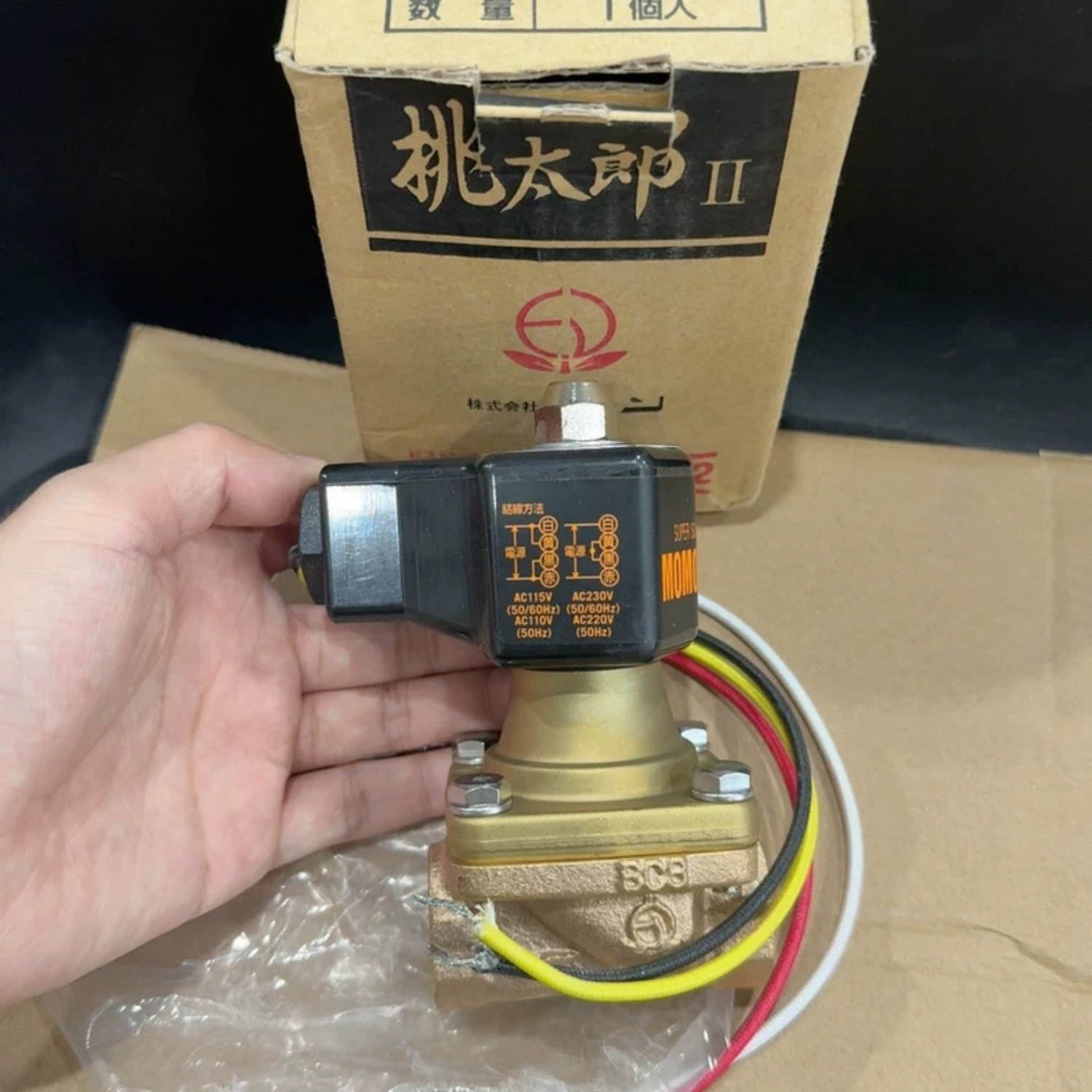

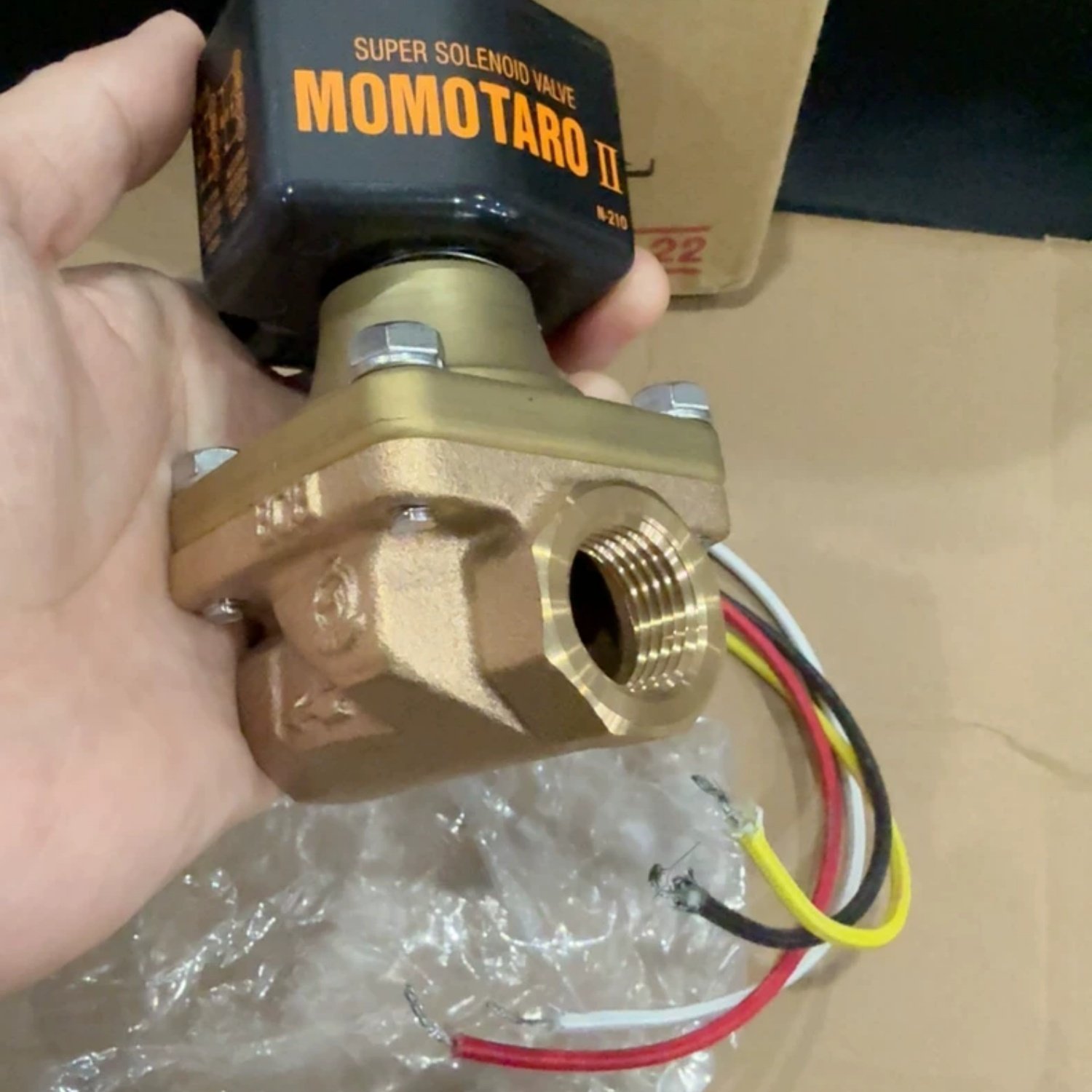

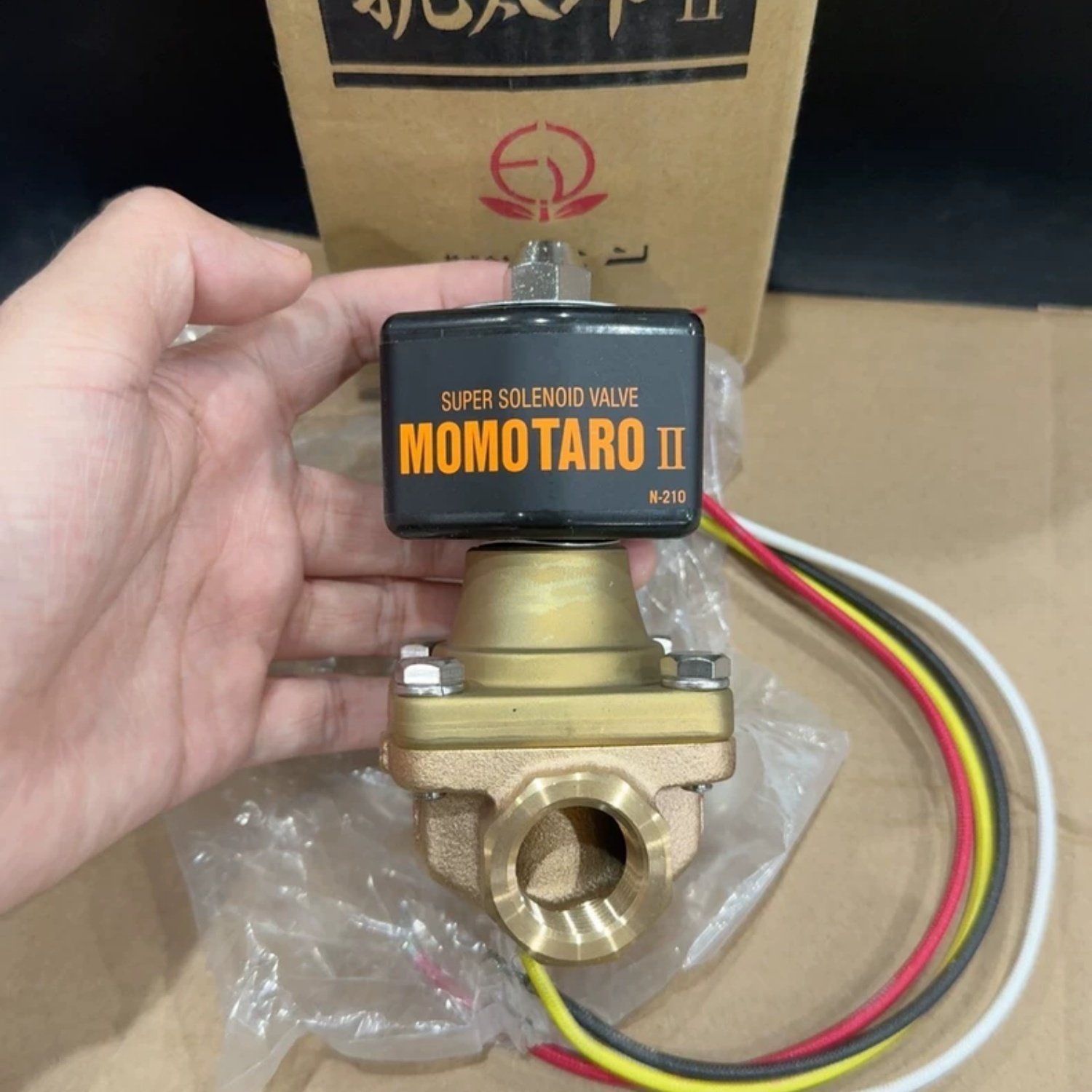

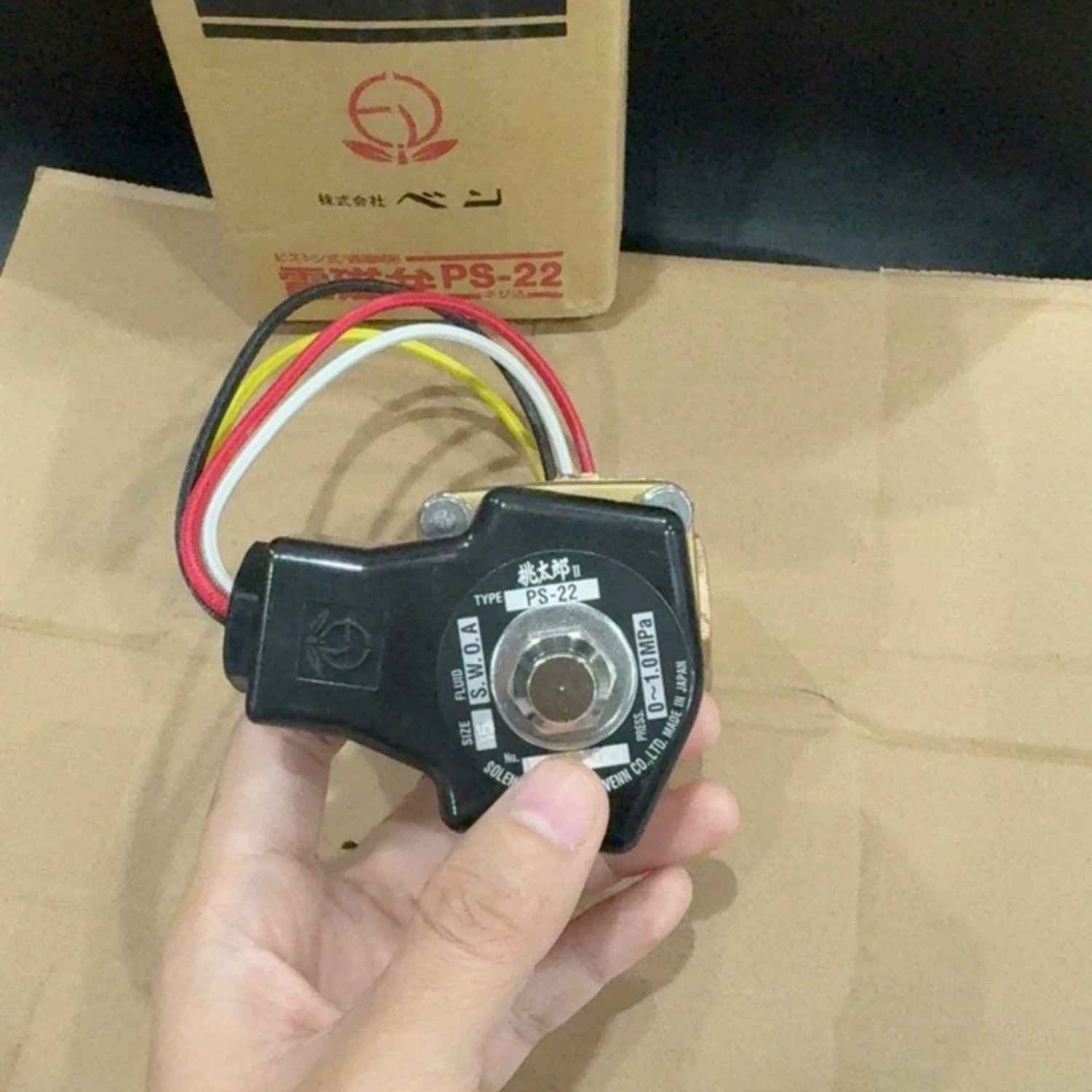

VENN PS-22-W Solenoid Valve (PS Series)

• Operating Pressure Range: 0 to 1.0 MPa (Works smoothly even at zero differential pressure).
• Fluid Temperature Range: 5°C to 180°C.
• Valve Operation: Normally Closed (NC), linear motion piston type.
• Body Material: High-grade bronze/brass cast alloy (CAC408).
• End Connection: Standard female JIS Rc screw threads.
• Flexible Mounting: Can be safely installed in either a horizontal or vertical pipeline layout (for nominal diameters of 50mm or less).
• Heat-Resistant Coil: The electrical coil exterior uses an advanced thermosetting resin explicitly designed to withstand high industrial temperatures.
• Drop-in Drop-out Replacement: Maintains identical face-to-face dimensions to the older Venn PS-12 series, making retrofits seamless without re-piping.
• Sizing: 1-inch (25A) nominal pipe thread configuration.

Brand New VENN PS-22-W Solenoid Valve. In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
