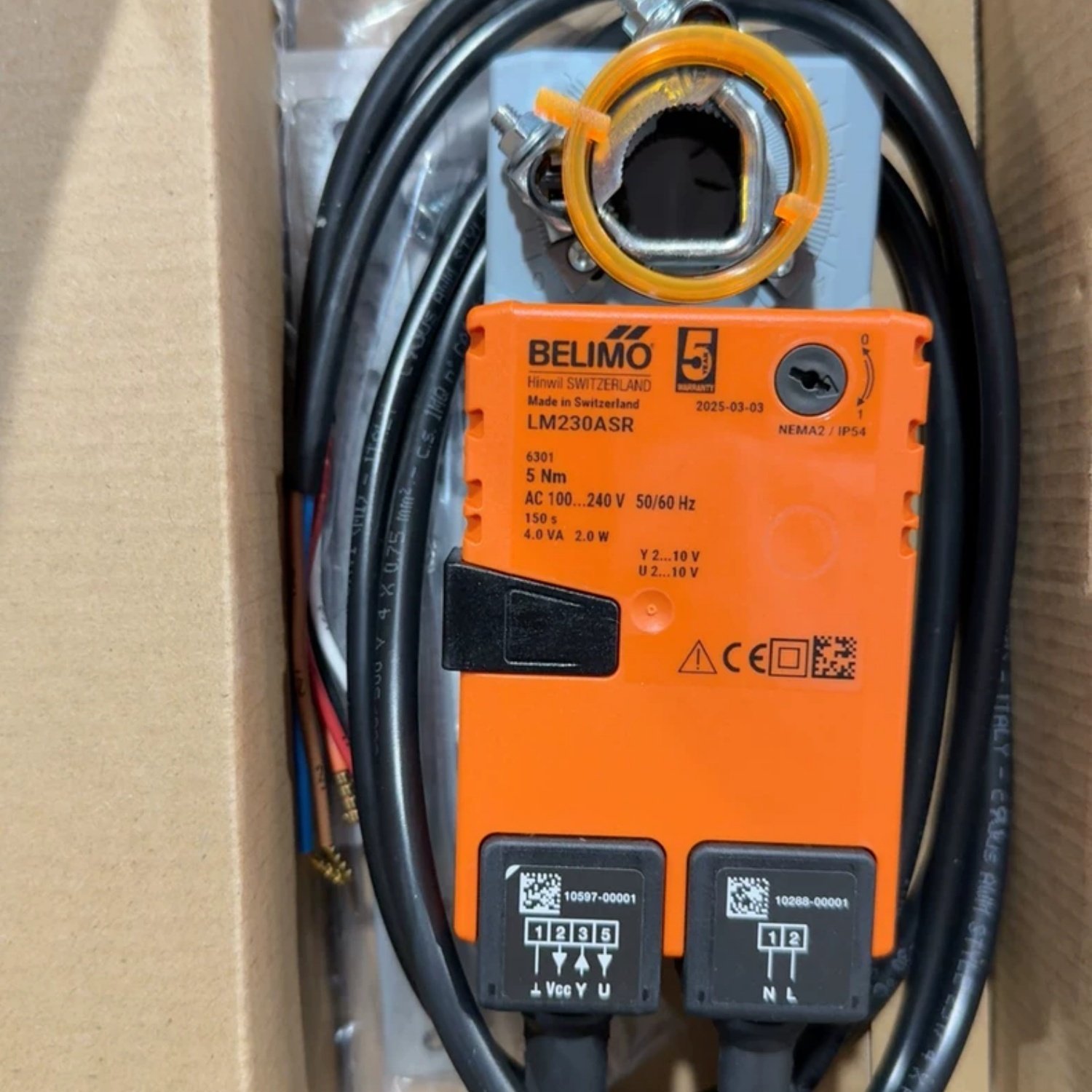

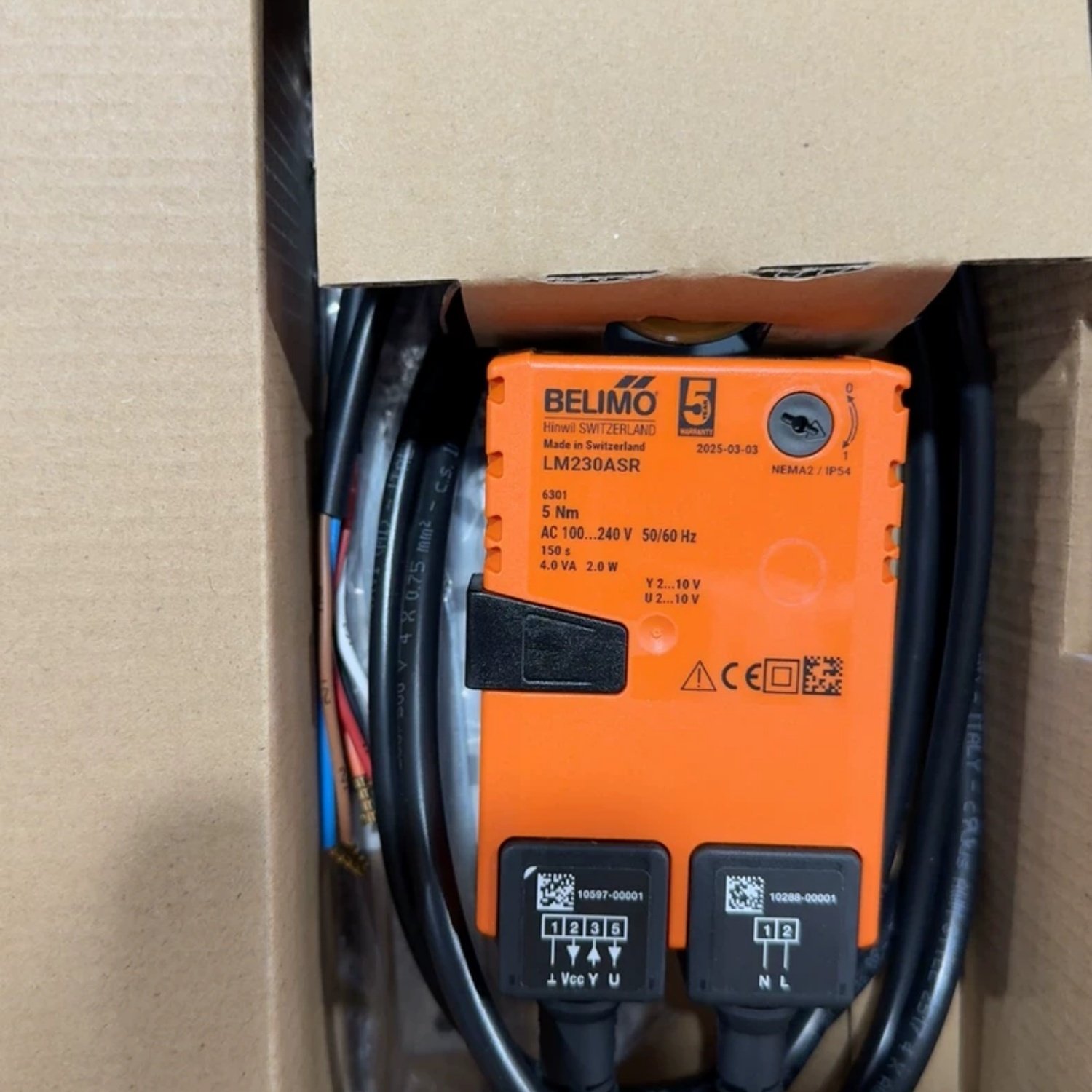

BELIMO LM230ASR Modulating Damper Actuator (LM Series)
- Torque: 5 Nm
- Nominal Voltage: AC 100…240 V, 50/60 Hz
- Control Type: Modulating (DC 0…10 V, working range DC 2…10 V)
- Position Feedback: DC 2…10 V (Measuring voltage, max 1 mA)
- Power Consumption: 1.8 W (In operation) / 1 W (At rest) / 4 VA (Wire sizing)
- Running Time: 150 s / 90°
- Angle of Rotation: Max. 95° (Adjustable mechanical end stops)
- Mechanical Interface: Universal spindle clamp 6…20 mm
- Sound Power Level: 35 dB(A)
- Manual Override: Equipped with a lockable push-button for temporary manual adjustment.

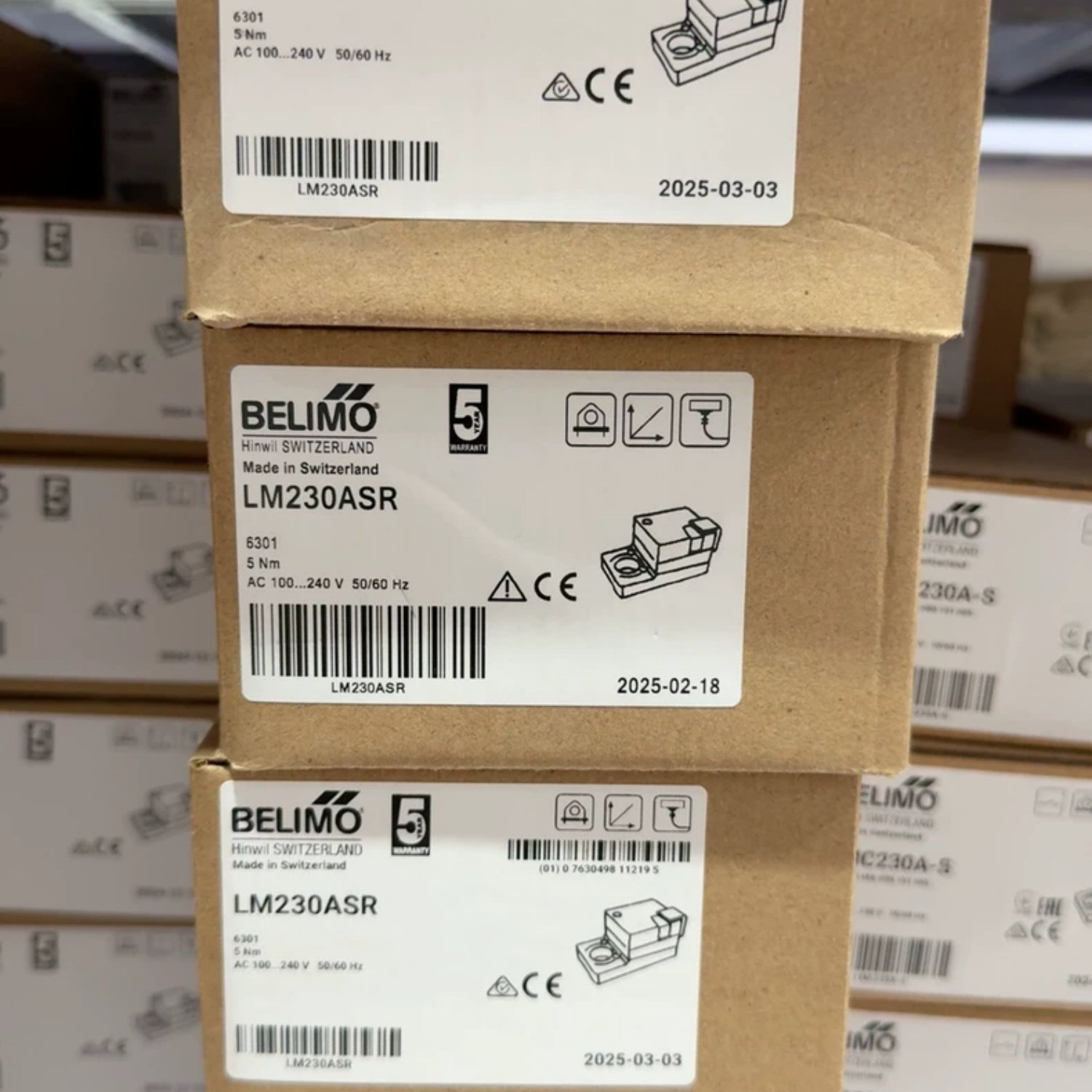

Brand New BELIMO LM230ASR Actuator. In stock — ships worldwide within 5-10 days.
1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
- SKU: LM230ASR
- New Original In Stock
- 6 Months Warranty
- shipping by DHL or UPS
