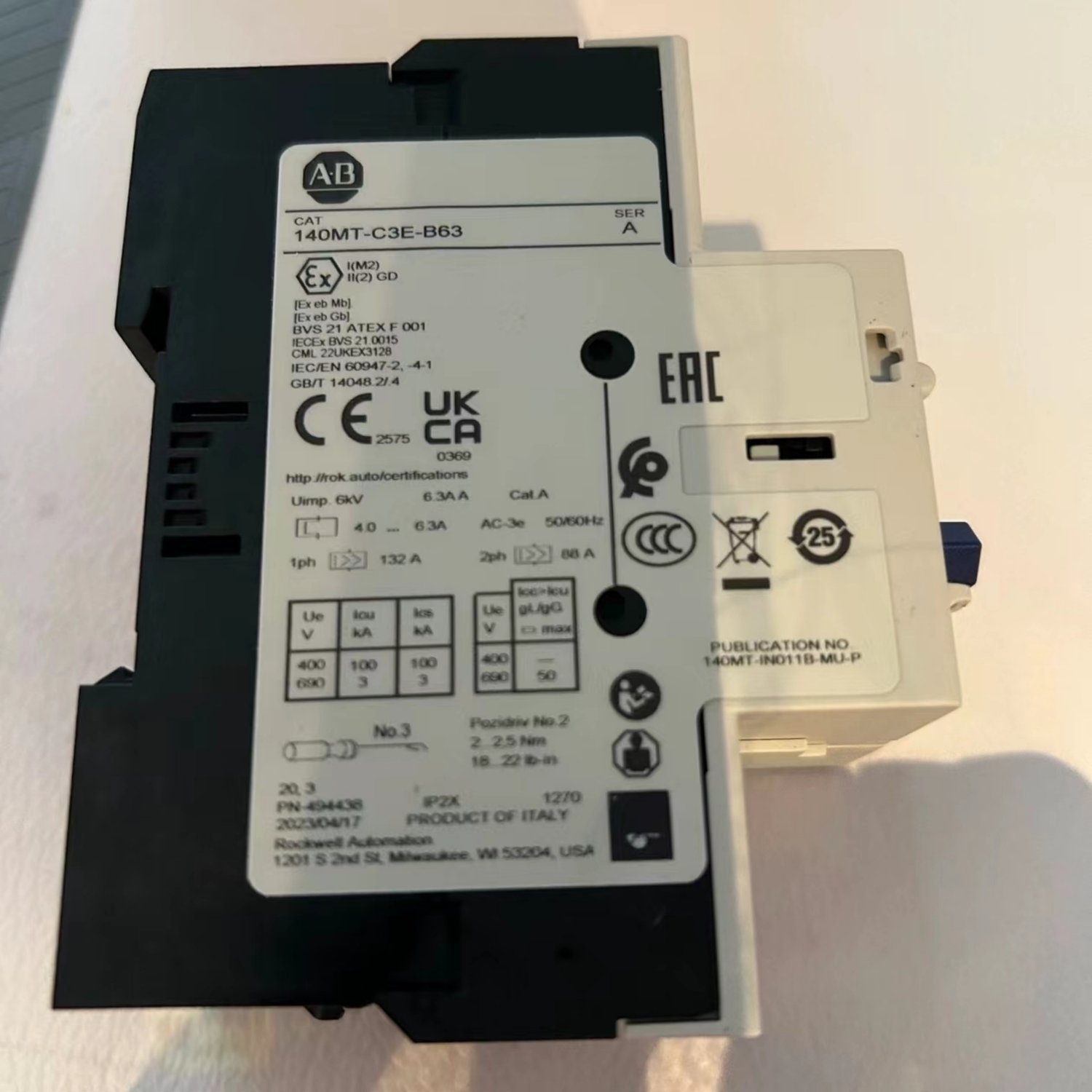

ALLEN-BRADLEY 140MT-C3E-B63 Motor Protection Circuit Breaker

Manufacturer: ALLEN-BRADLEY
Model / Part Number: 140MT-C3E-B63
Current Range: Adjustable from 4.0 to 6.3 Amps.
Frame Size: Frame Size C.
Magnetic Trip: Standard fixed magnetic trip at 14 × Ie.
Tripping Class: Trip Class 10 (trips in 10 seconds or less).
Breaking Capacity: Standard performance/breaking capacity.
Voltage Ratings: Rated for a maximum supply voltage of 690V AC (commonly used in 480V 60Hz systems).

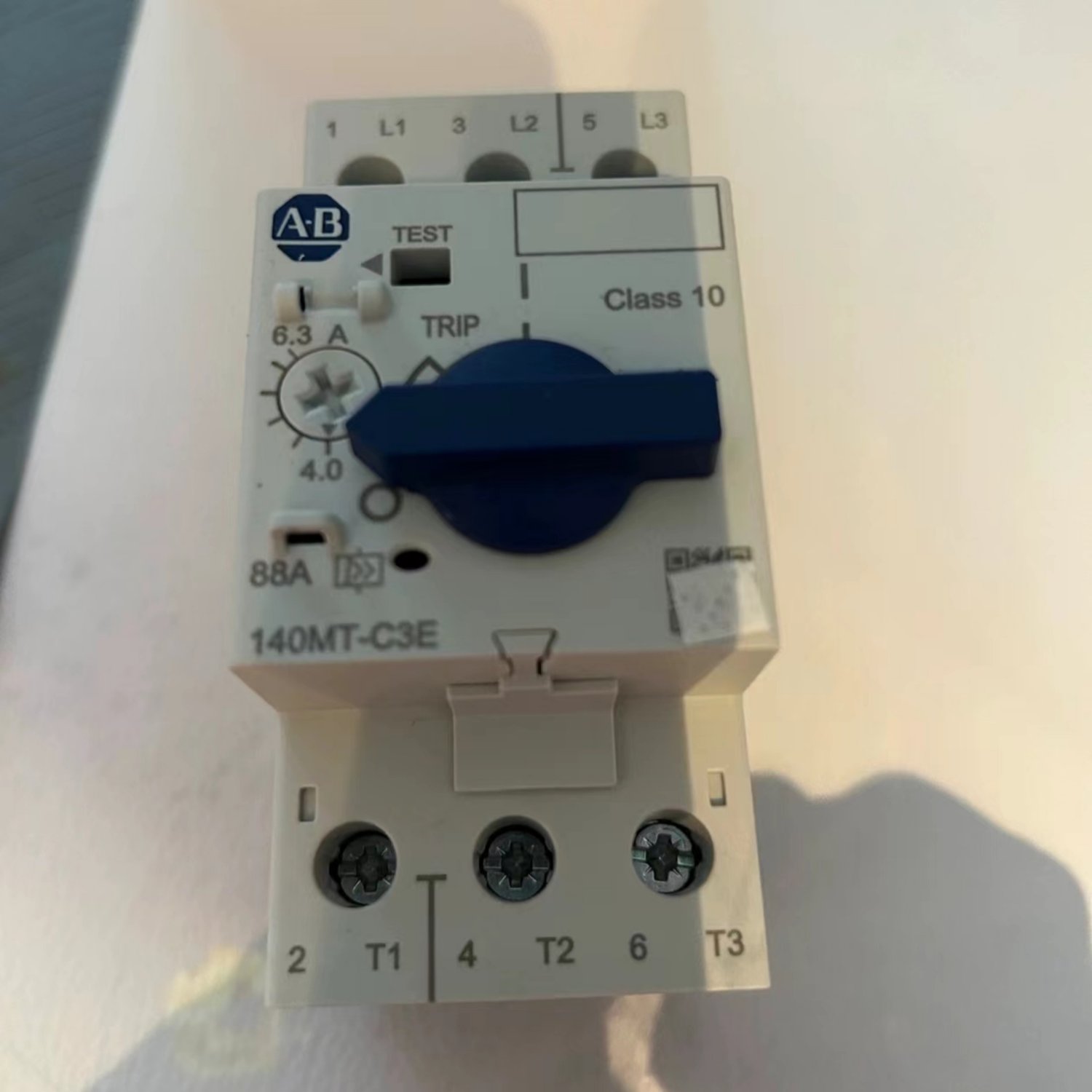

Physical Interface: Equipped with a rotary turn handle (On/Off) and standard screw terminals.
Mounting Type: Built for standard 35mm DIN rail installation.
Certifications: UL Listed as a Type E Manual Self-Protected Combination Motor Controller.
Modular Assembly: It can be paired directly with Allen-Bradley 100-C and 100-E series IEC-rated contactors to build complete, space-saving combination motor starters.
Accessories: Supports both front and side-mounted auxiliary contacts for signaling and control loop integration.
Group Installations: Certified for group motor installations, allowing multiple motors to clear under a single Branch Circuit Protective Device (BCPD) to reduce total panel footprint and cost.
Lifecycle status: Active MPCB, Standard Magnetic Trip (Fixed at 14 x le), 4.0 – 6.3 A, Std. Performance, Frame Size C Preferred 14…
