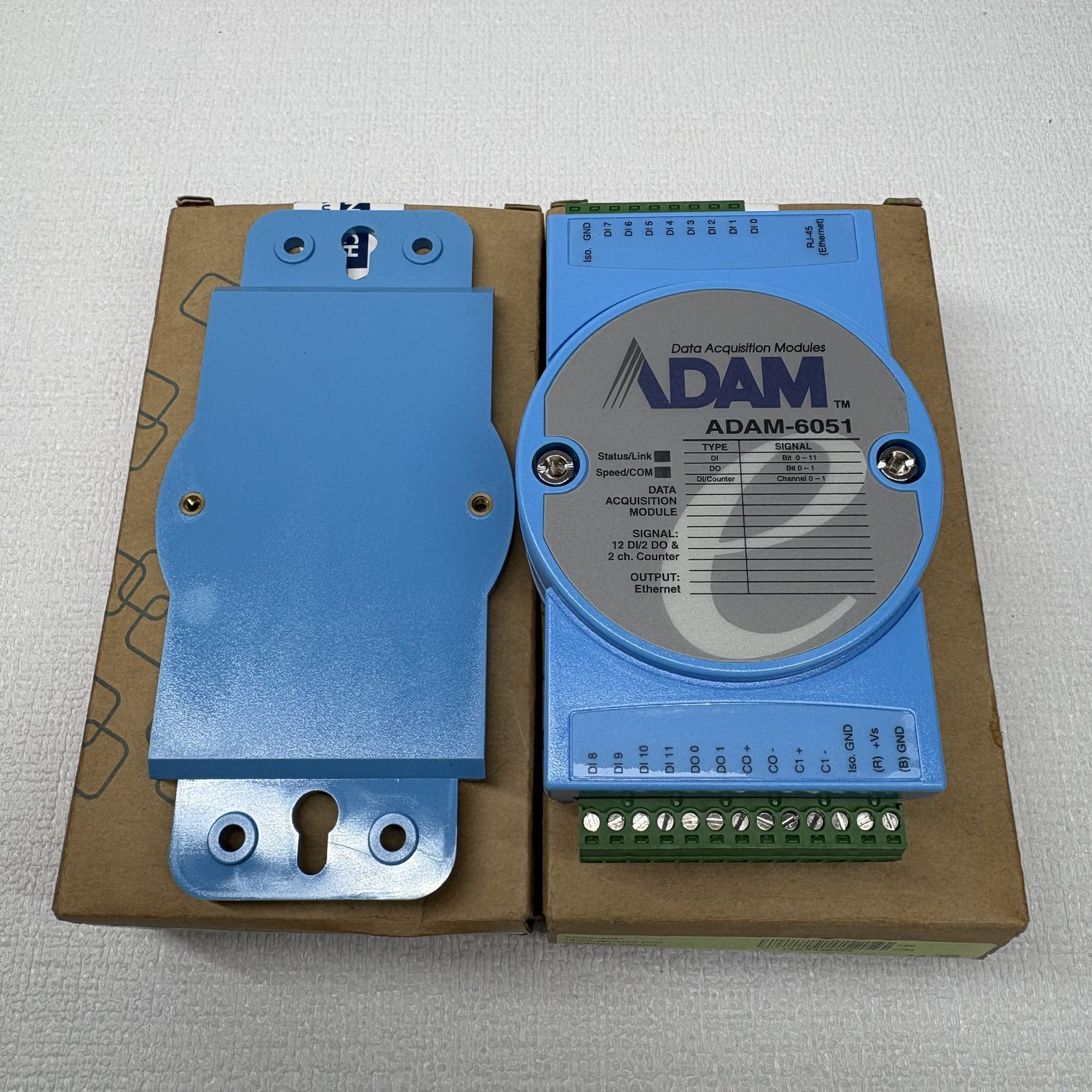

ADAM-6051 ADVANTECH Ethernet Digital I/O Module

• I/O Distribution: 12-channel Digital Input (DI), 2-channel Digital Output (DO), 2-channel Counter
• Power Requirements: 10 to 30 VDC input range (2W @ 24V DC typical consumption)
• Isolation Protection: 2,000 VDC galvanic isolation voltage
• Physical Interfaces: 1 x RJ45 LAN port, 1 x 13-pin plug-in terminal, 1 x 9-pin plug-in terminal
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Digital Input Channels: Features 12 isolated channels supporting both dry contacts (Logic 0: close to GND, Logic 1: open) and wet contacts (Logic 0: 0~3 VDC, Logic 1: 10~30 VDC).
• Counter & Frequency Modes: The 2 counter channels can process inputs up to 4.5 kHz. They can store or discard values upon system power-off and track frequencies from 0.2 Hz to 4500 Hz.
• Digital Output Channels: 2 sink-type channels supporting up to 30 VDC and a maximum load of 100 mA per channel. They natively support 5 kHz pulse outputs.
• Protocol Diversity: Integrates with common SCADA and IoT software through Modbus/TCP, MQTT (with TLS encryption), SNMP, RESTful APIs, UDP, and ASCII commands.
• Edge Intelligence: Employs Peer-to-Peer behavior to link I/O channels across networks without an intervening PLC, alongside a built-in web server for XML and HTML5 dashboards.
• Features Include: Input Voltage: 10~30 VDC; Output Voltage: 0~30 VDC; Sink Current: 100 mA max./channel; Connectors: 1 x RJ45, 1 x…

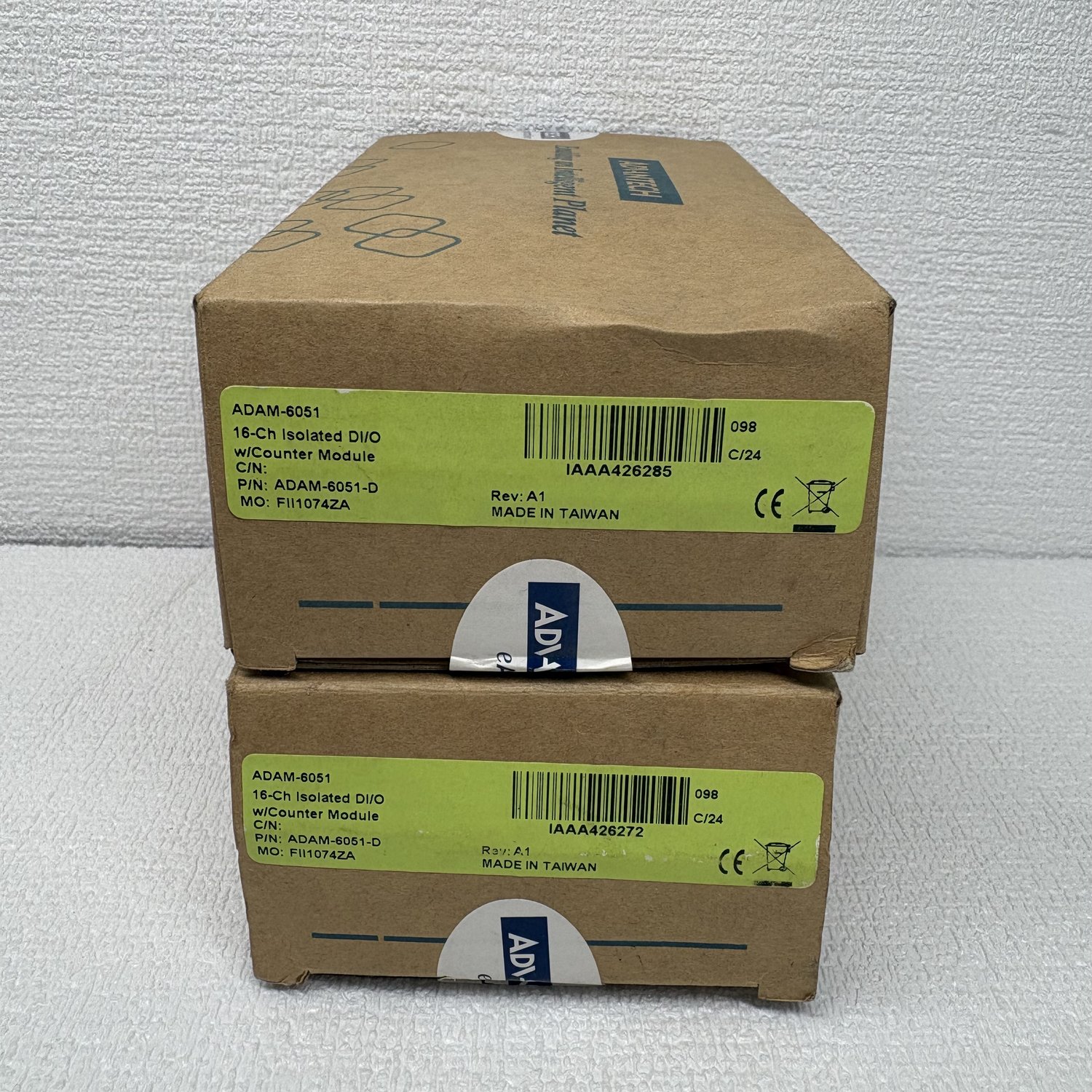

Brand New ADVANTECH ADAM-6051 Ethernet Digital I/O Module (ADAM-6000 Series). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
