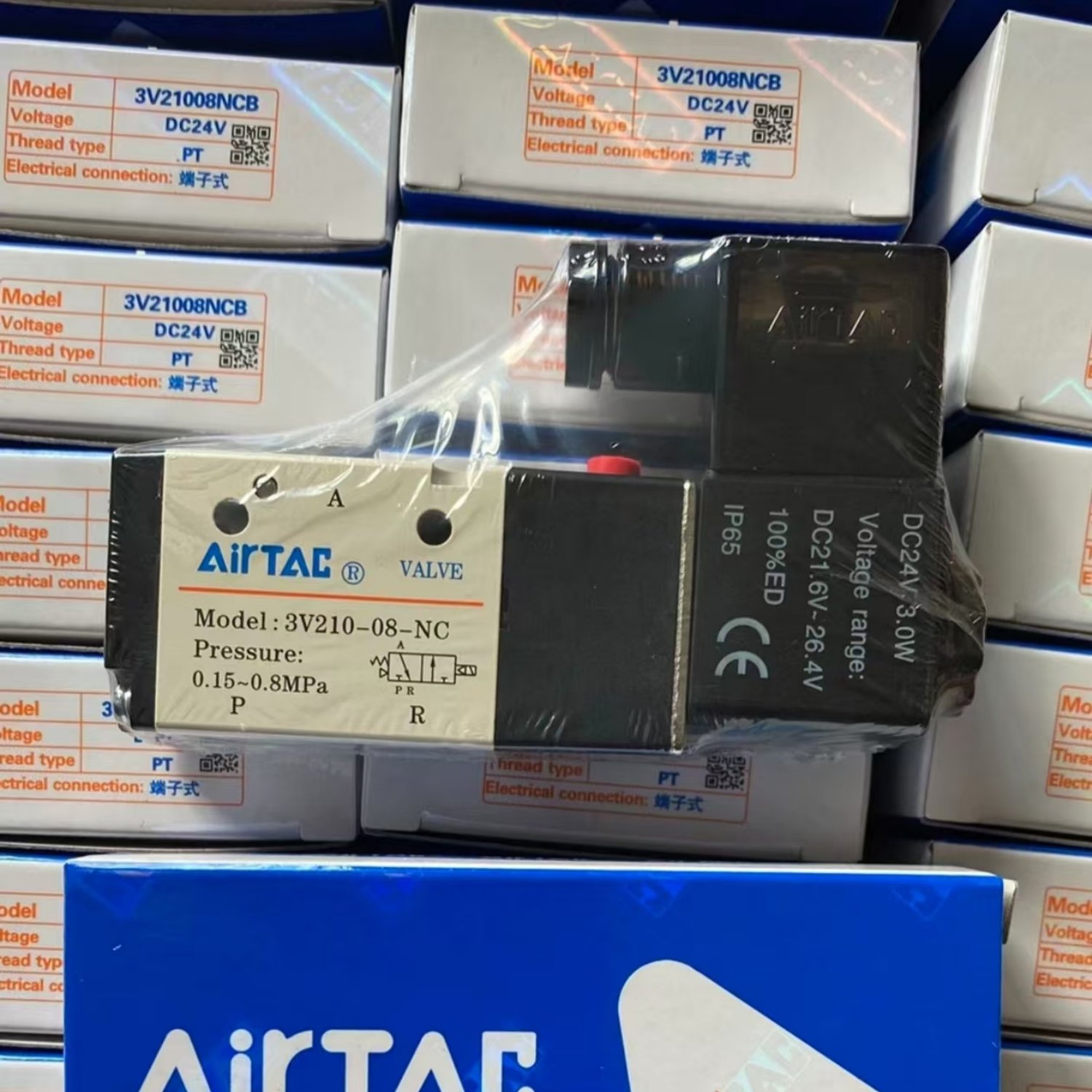

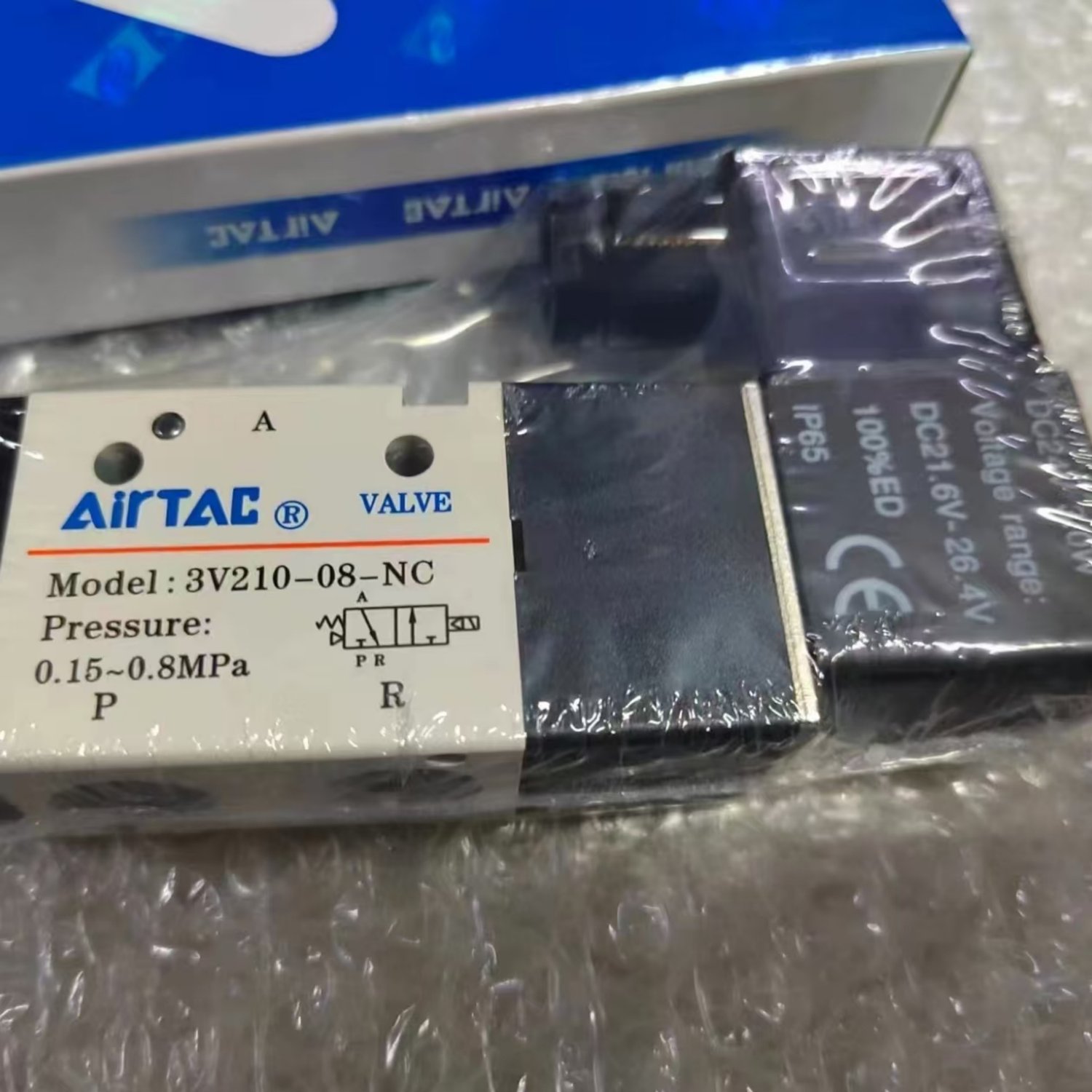

AIRTAC 3V210-08-NC 3V21008NCB Solenoid Valve (3V200)

• Working Medium: Air (filtered by a 40μm filter element)
• Port Size: Inlet = Outlet = Exhaust = 1/4"
• Flow Capacity (Cv): 1.0 (Effective cross-sectional area: 17.0mm²)
• Operating Pressure: 0.15 to 0.8 MPa (21 to 114 psi)
• Proof Pressure: 1.2 MPa (175 psi)
• Operating Temperature: -20 to 70°C (-4 to 158°F)
• Power Consumption: 3.0W (DC24V standard range: 21.6V–26.4V)
• Protection Class: Dustproof and waterproof IP65 rated
• Body Material: Aluminum alloy
• Lubrication: Not required (if oil is used, it must be continuous ISO VG32)
• Functional Replacement: Operates as a drop-in replacement for equivalent industry components like the SMC SYJ500 series.
• Manifold Compatible: Can be installed standalone or integrated onto a multi-station manifold base to optimize space.
• Manual Override: Equipped with a mechanical slot override to facilitate safe system testing and manual debugging.
• Model: 3V210-08-NC. Pressure. 0.15-0.8MP. ALL. R. 100%ED. DC21.6V-26.4V. Voltage range: DC24V 3.0W. IP65. CE. Specification. Model…

Brand New AIRTAC 3V210-08-NC 3V21008NCB Solenoid Valve (3V200). In stock — ships worldwide within 5-10 days.

1-year warranty against manufacturing defects. Contact us for pricing — reply within 24 hours.
